Database of filament spools info

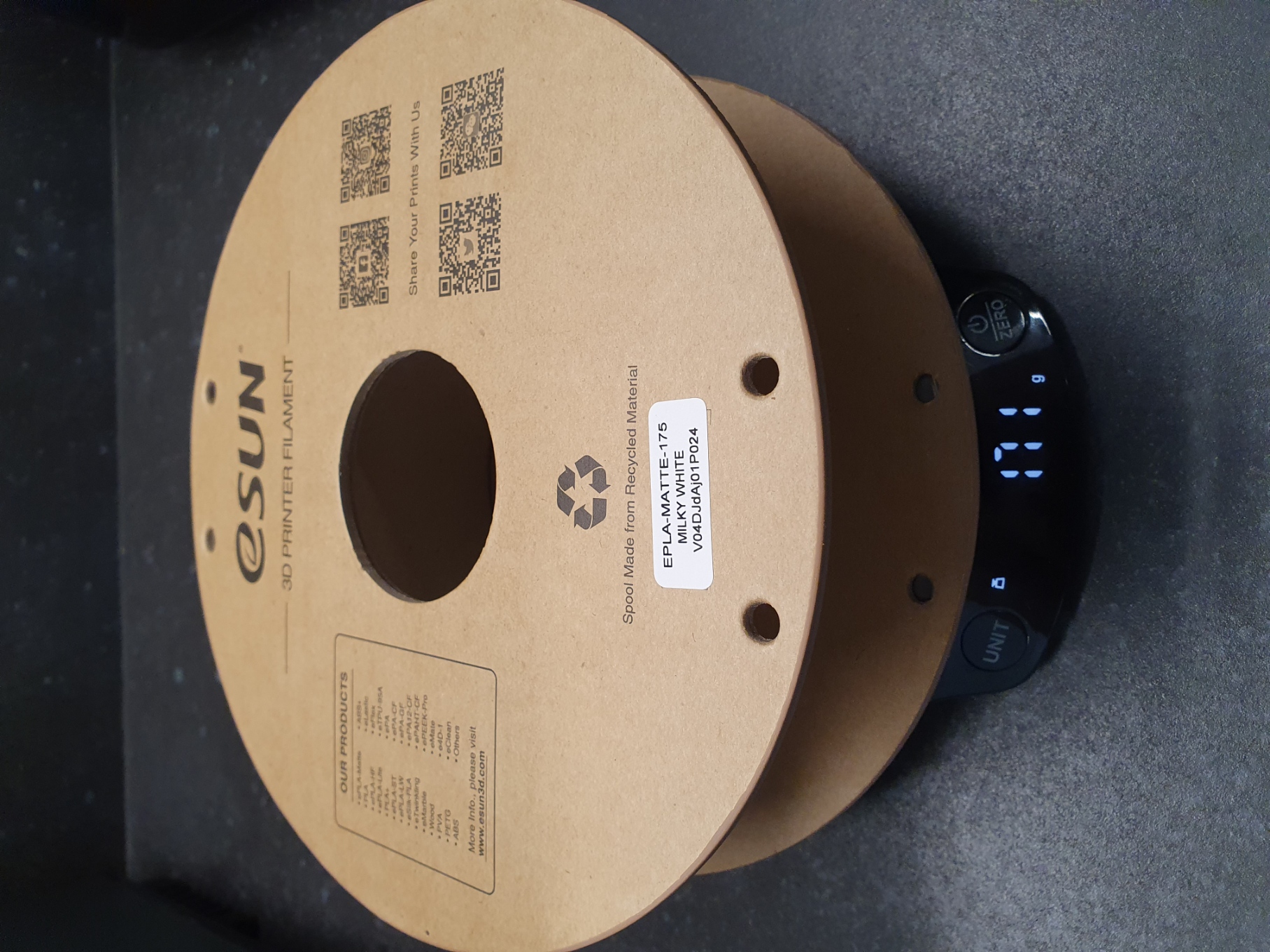

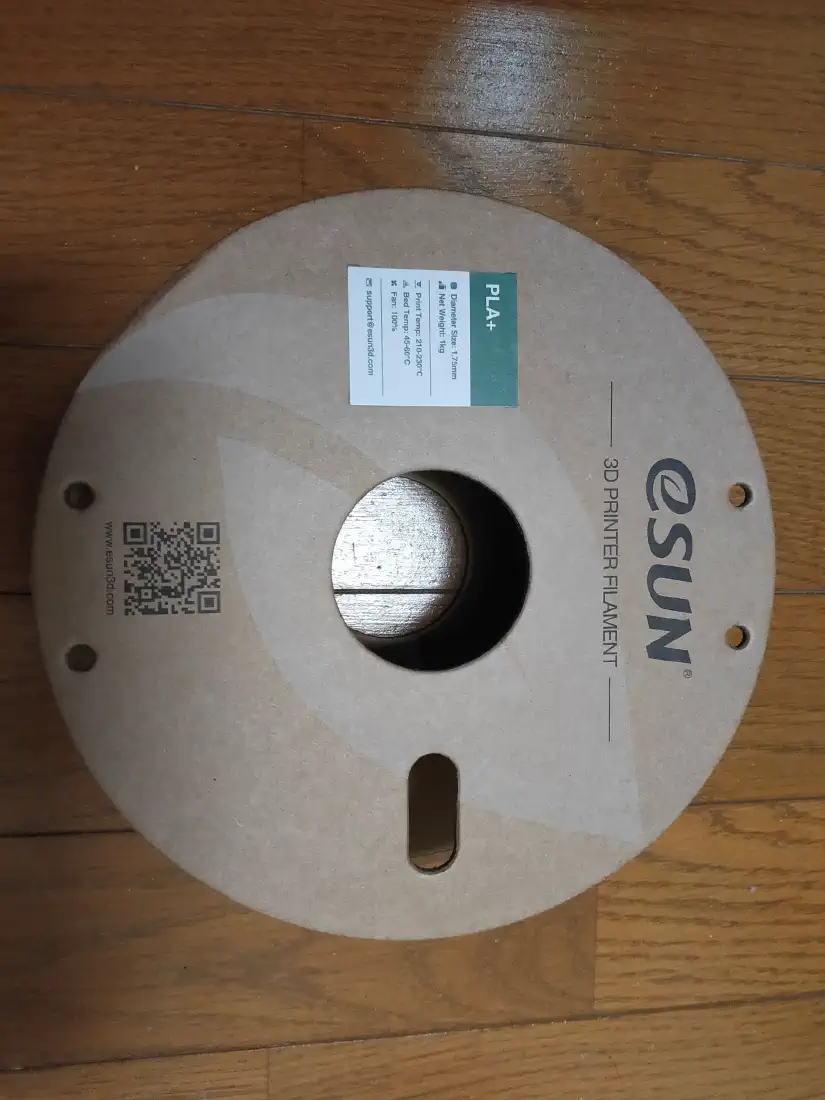

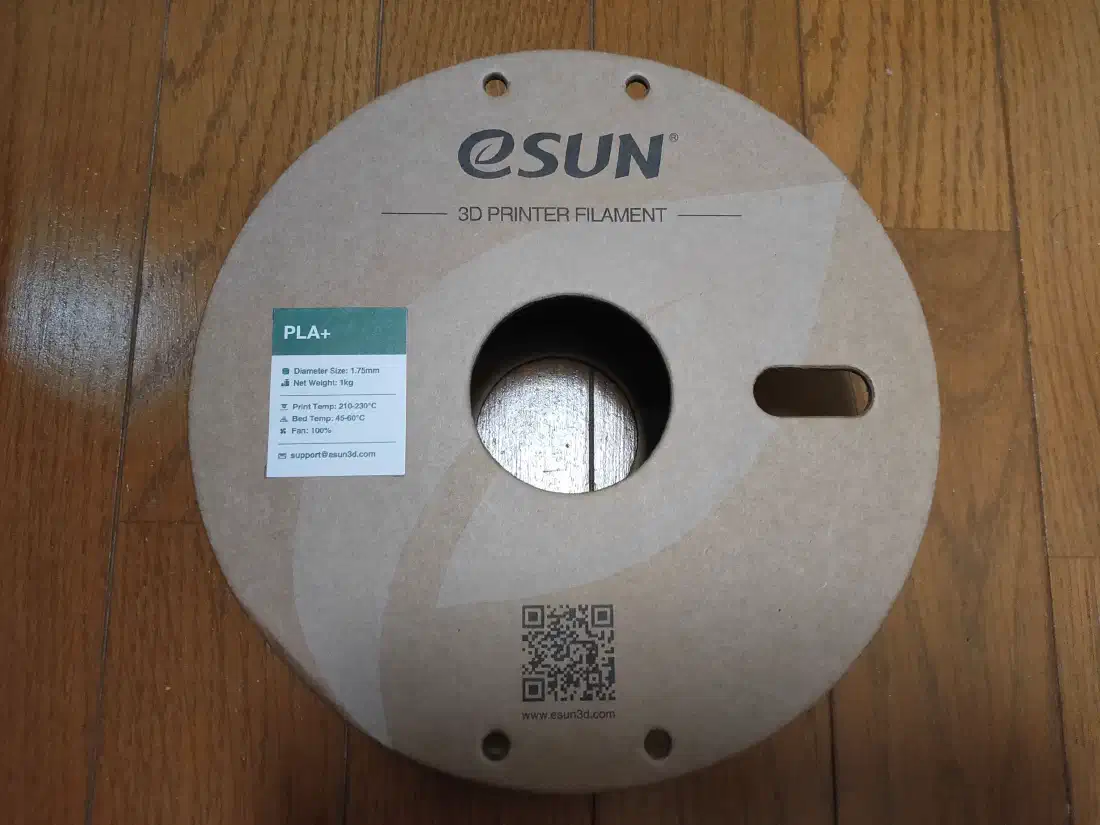

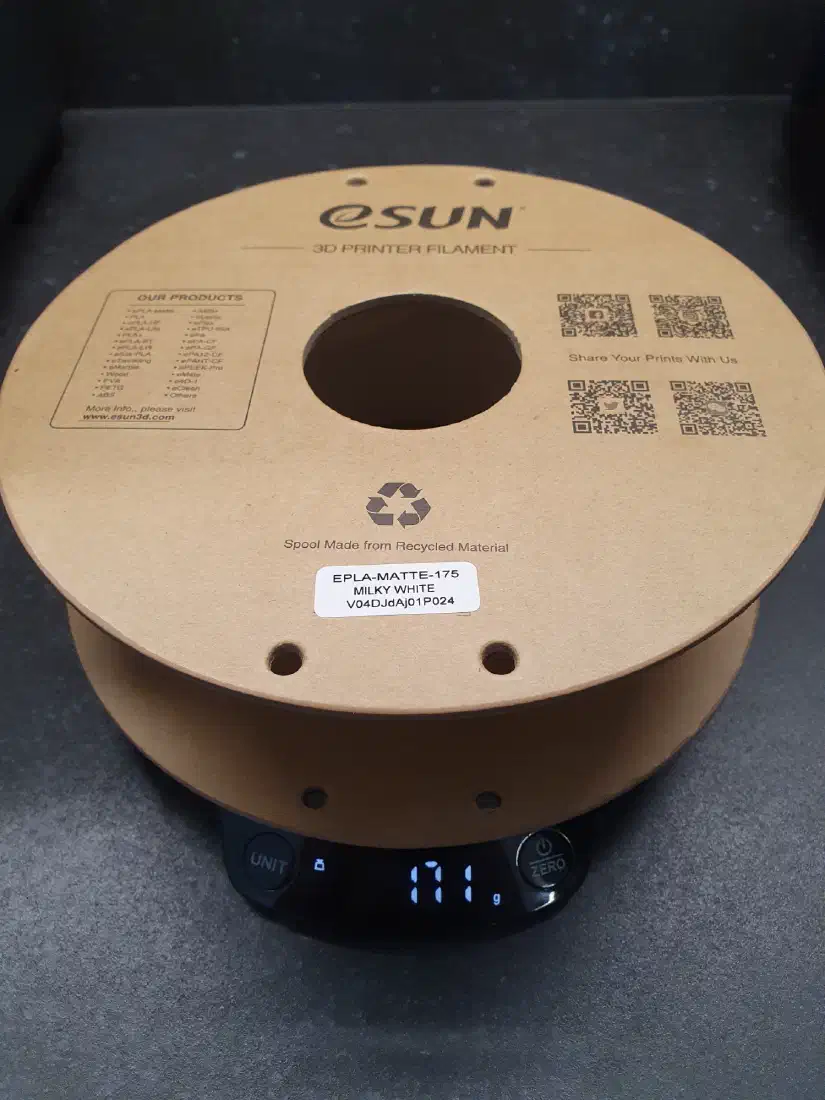

ESun PLA+ (cardboard spool)

  • Printing temp: 210-230C
  • Bed temp: 45-60C
  • Empty spool weight: 147g-171g
  • Advertised filament weight: 1000g
  • Height: 62mm
  • Hole Diameter: 54mm

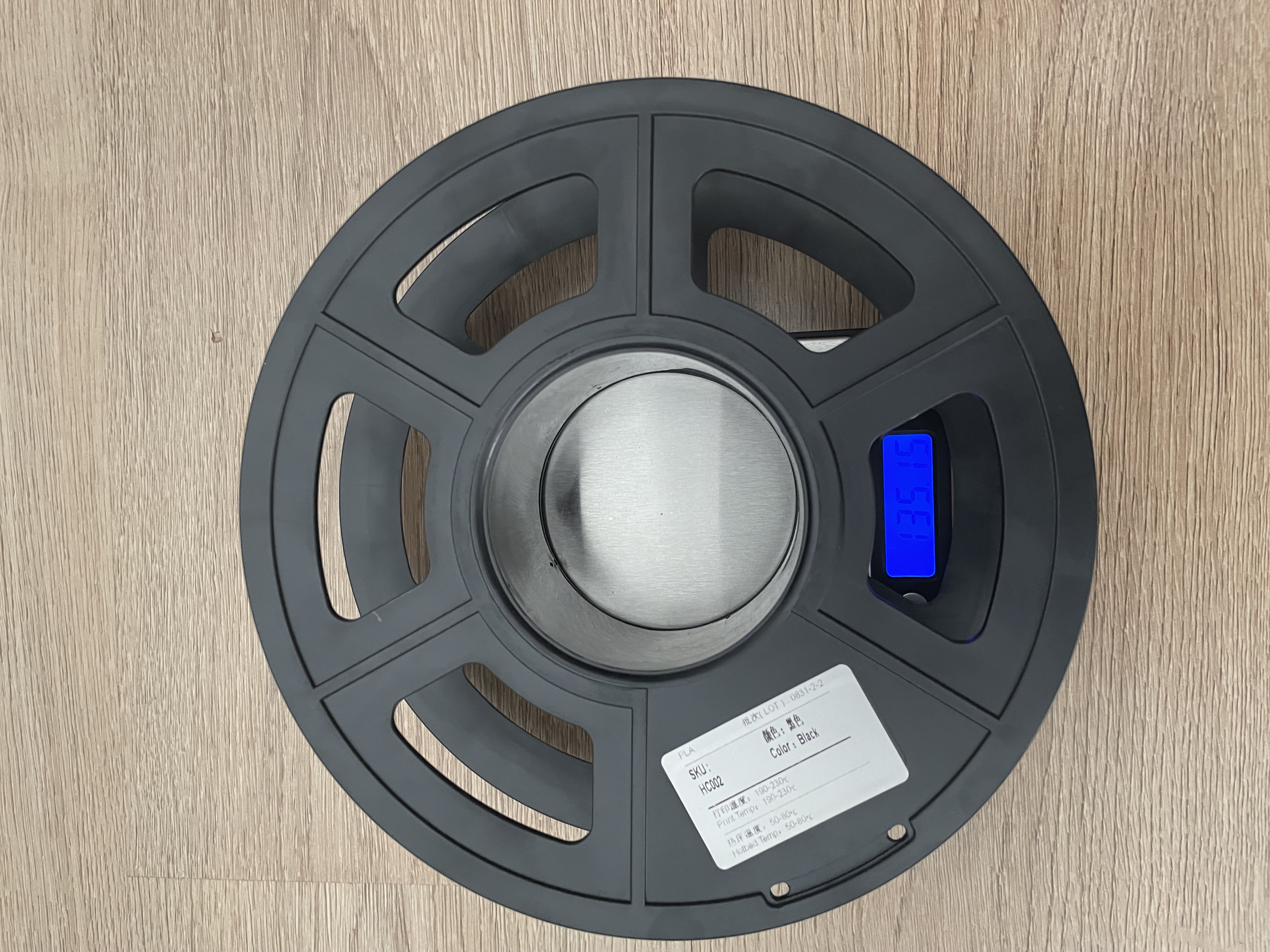

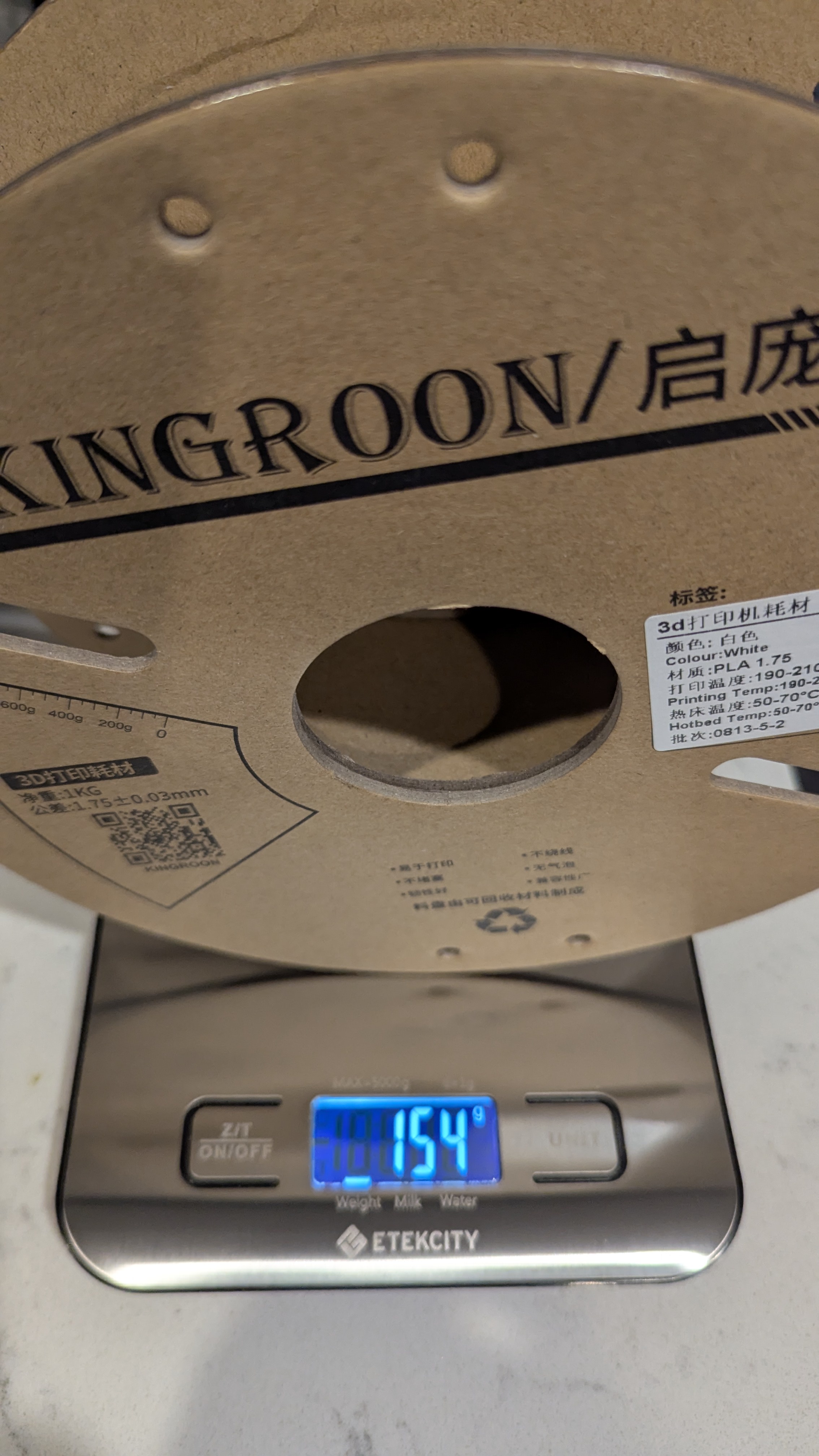

Kingroon PLA

  • Printing temp: 190 C – 230 C
  • Bed temp: 50 C – 80 C
  • Empty spool weight: 135 g
  • Advertised filament weight: 1000 g
  • Outside Diameter: 200 mm
  • Height: 85 mm
  • Hole Diameter: 75 mm

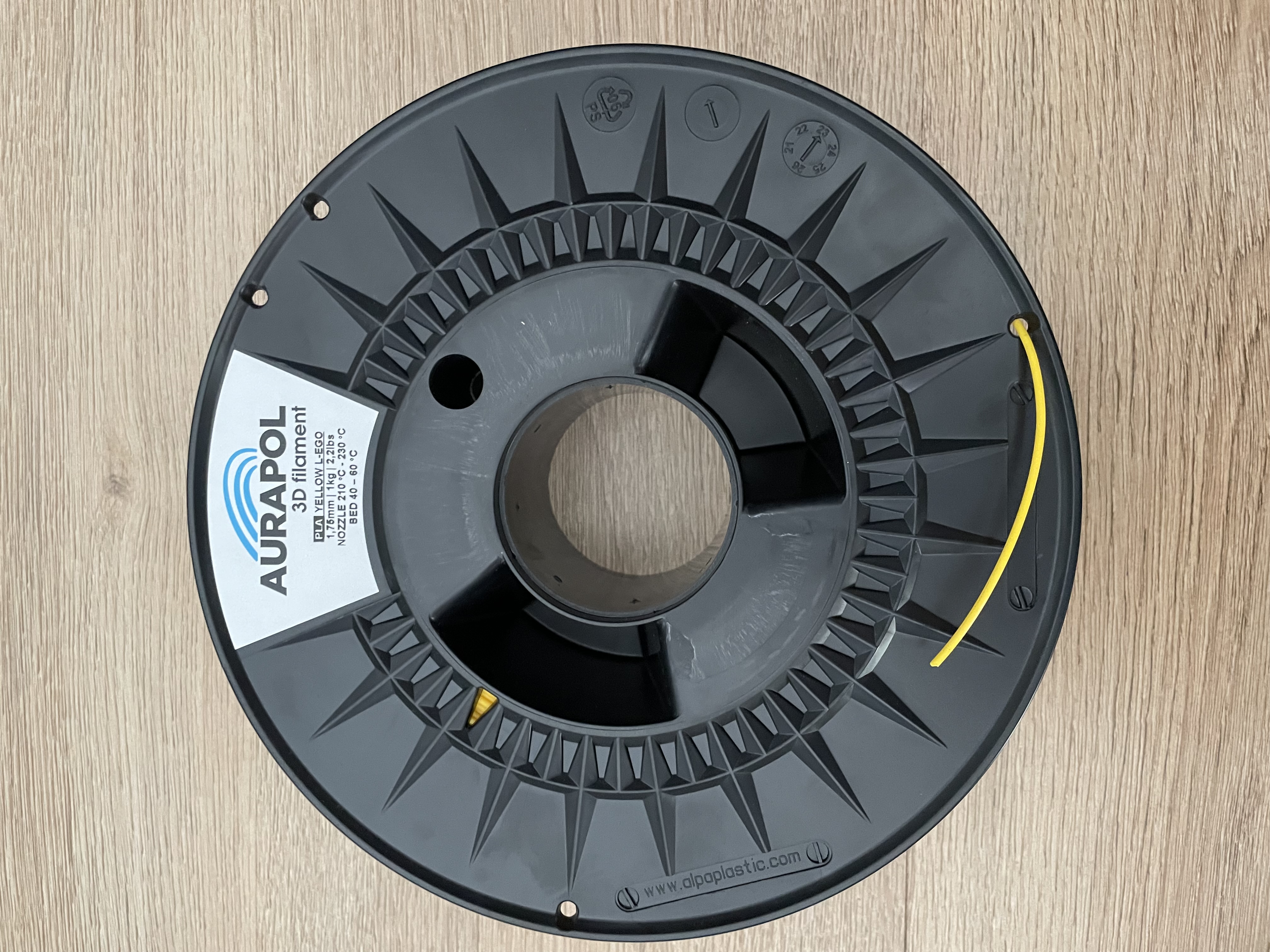

Aurapol PLA

  • Printing temp: 210 C – 230 C
  • Bed temp: 40 C – 60 C
  • Empty spool weight: 220 g
  • Advertised filament weight: 1000 g
  • Outside Diameter: 200 mm
  • Height: 70 mm
  • Hole Diameter: 55 mm

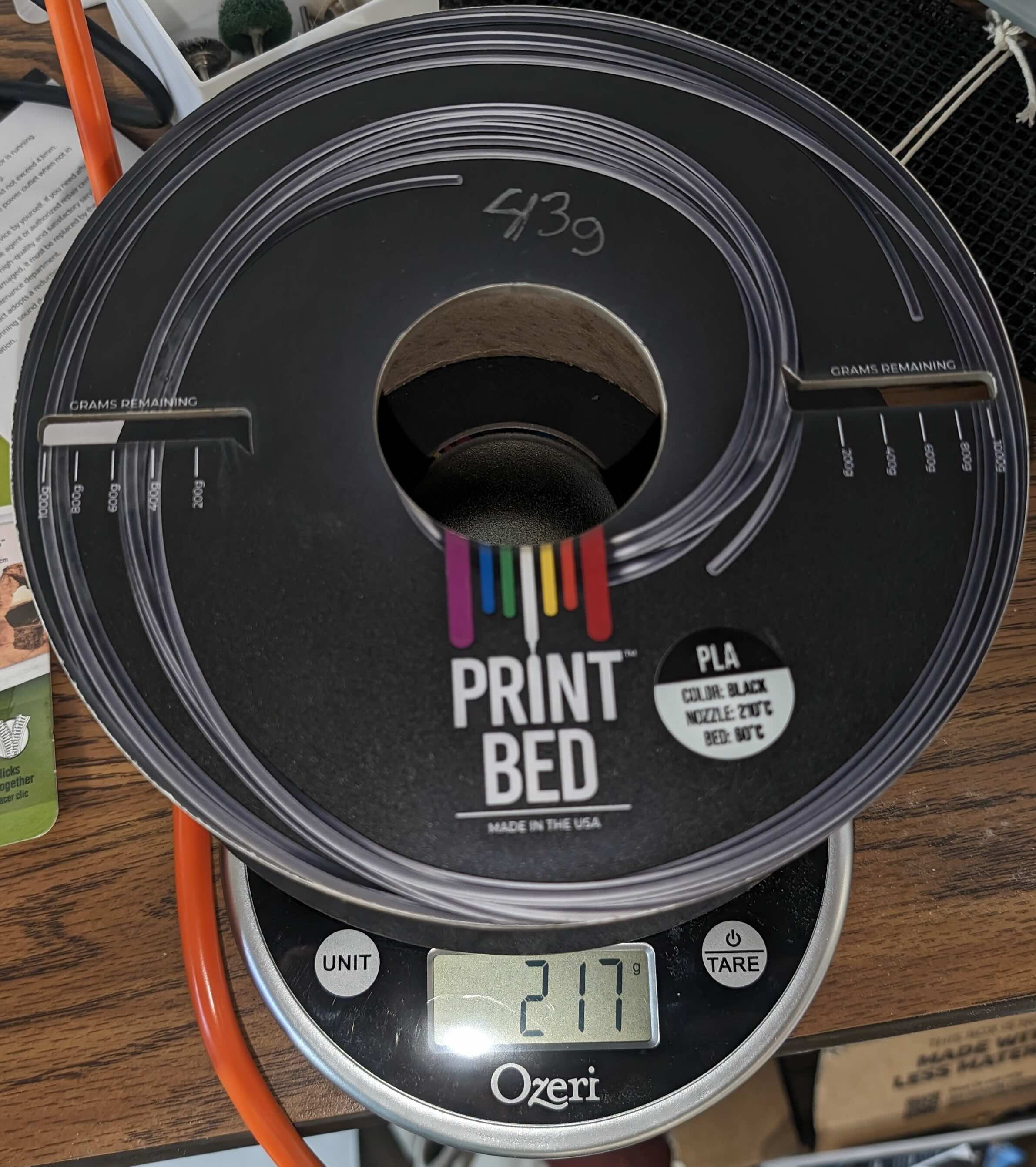

PrintBed PLA

  • Printing temp: 210 C
  • Bed temp: 50 C
  • Empty spool weight: 217 g
  • Advertised filament weight: 1000 g
  • Outside Diameter: 200 mm
  • Height: 64 mm
  • Hole Diameter: 57 mm

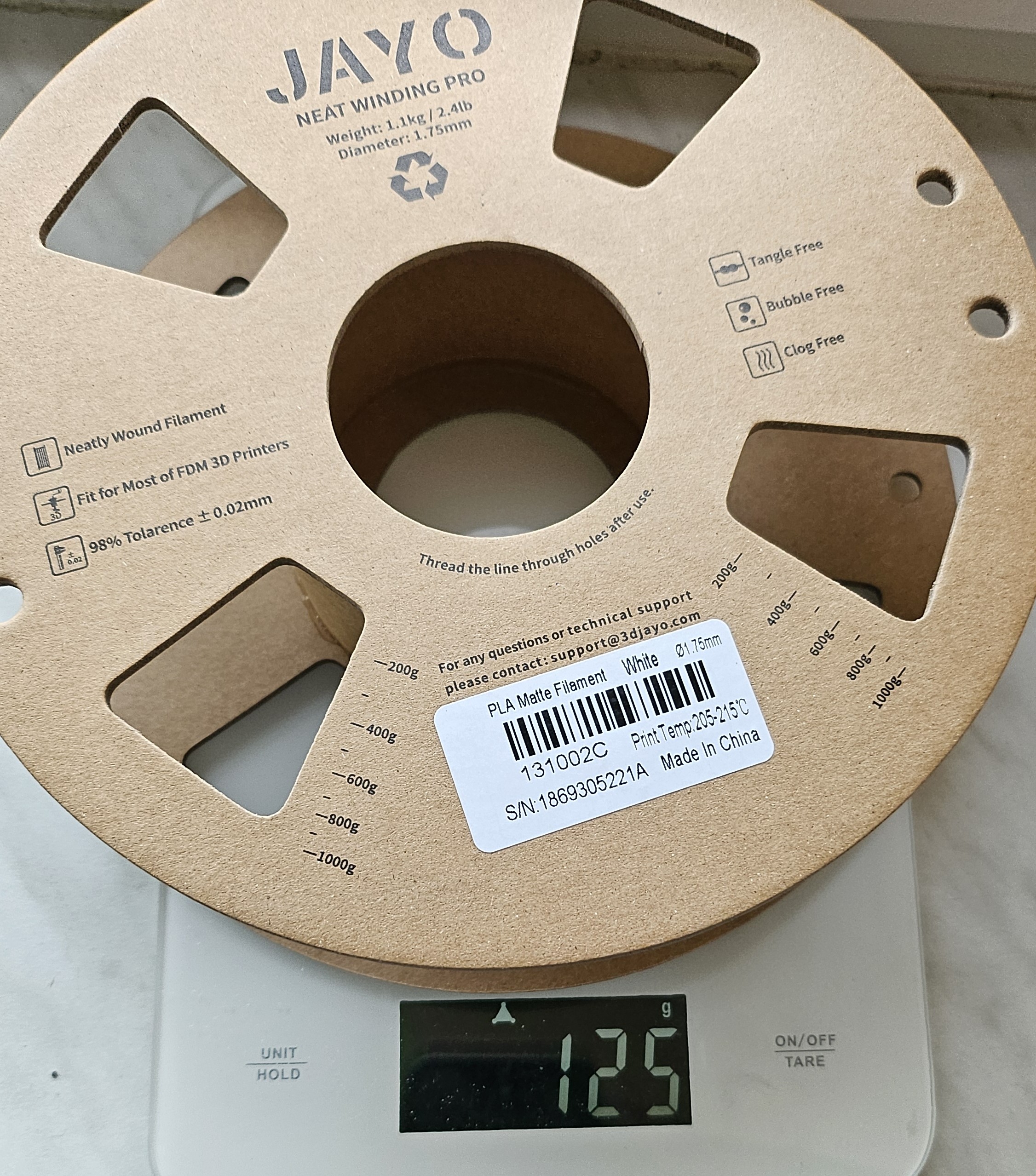

Jayo PLA Cardboard spool

  • Printing temp: 205 C – 215 C
  • Bed temp: 60 C
  • Empty spool weight: 125 g
  • Advertised filament weight: 1100 g
  • Outside Diameter: 195mm
  • Height: 57mm
  • Hole Diameter: 54mm

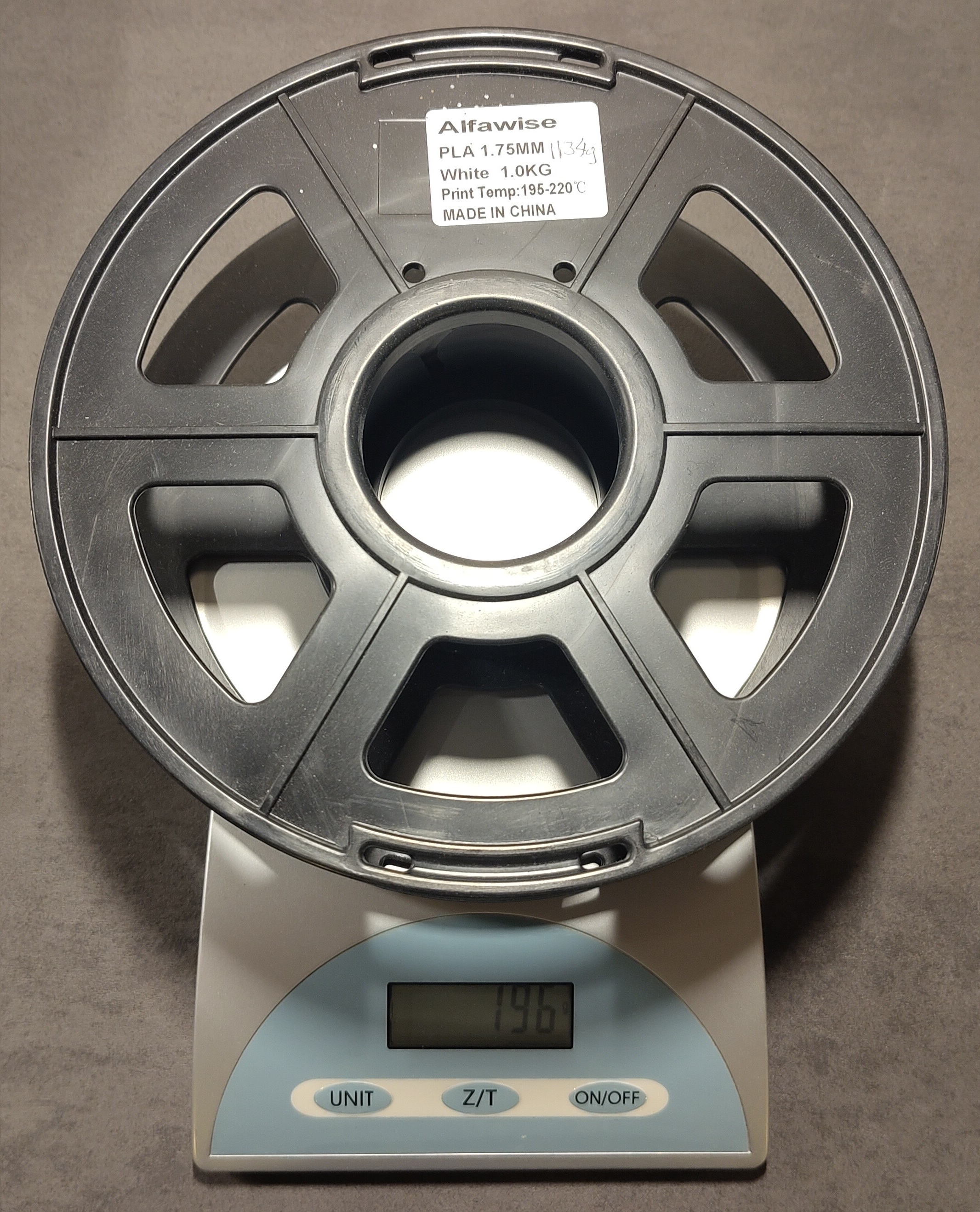

Alfawise PLA (Plastic Spool 2)

  • Printing temp: 195-220C
  • Bed temp: 45-60C
  • Empty spool weight: 196g
  • Advertised filament weight: 1000g
  • Outside Diameter: 199mm
  • Height: 63mm
  • Hole Diameter: 57.2mm

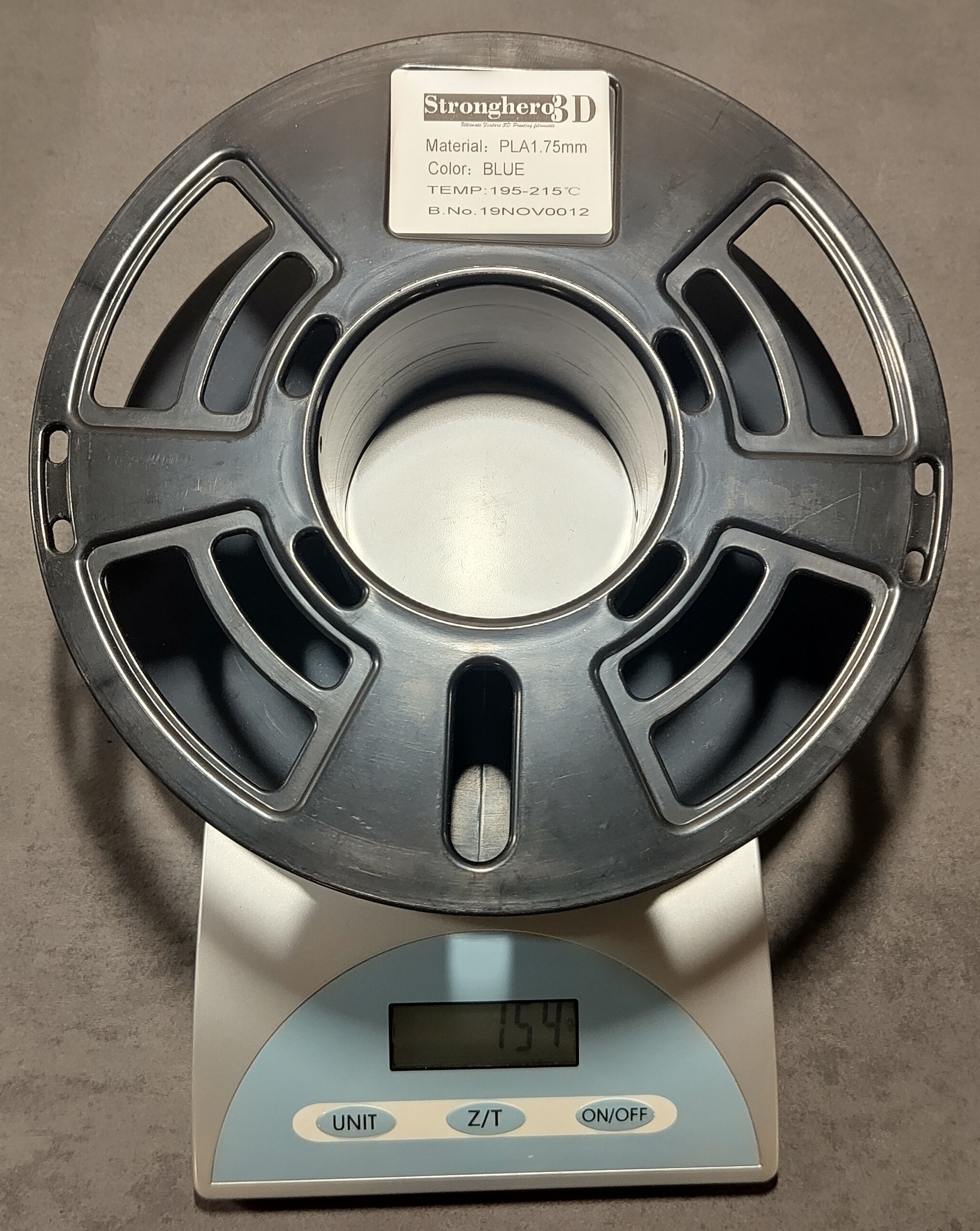

Stronghero 3D PLA

Printing temp: 190-227C Bed temp: Optional Empty spool weight: 154g Advertised filament weight: 1000g Outside Diameter: 199mm Height: 60mm Hole Diameter: 75mm

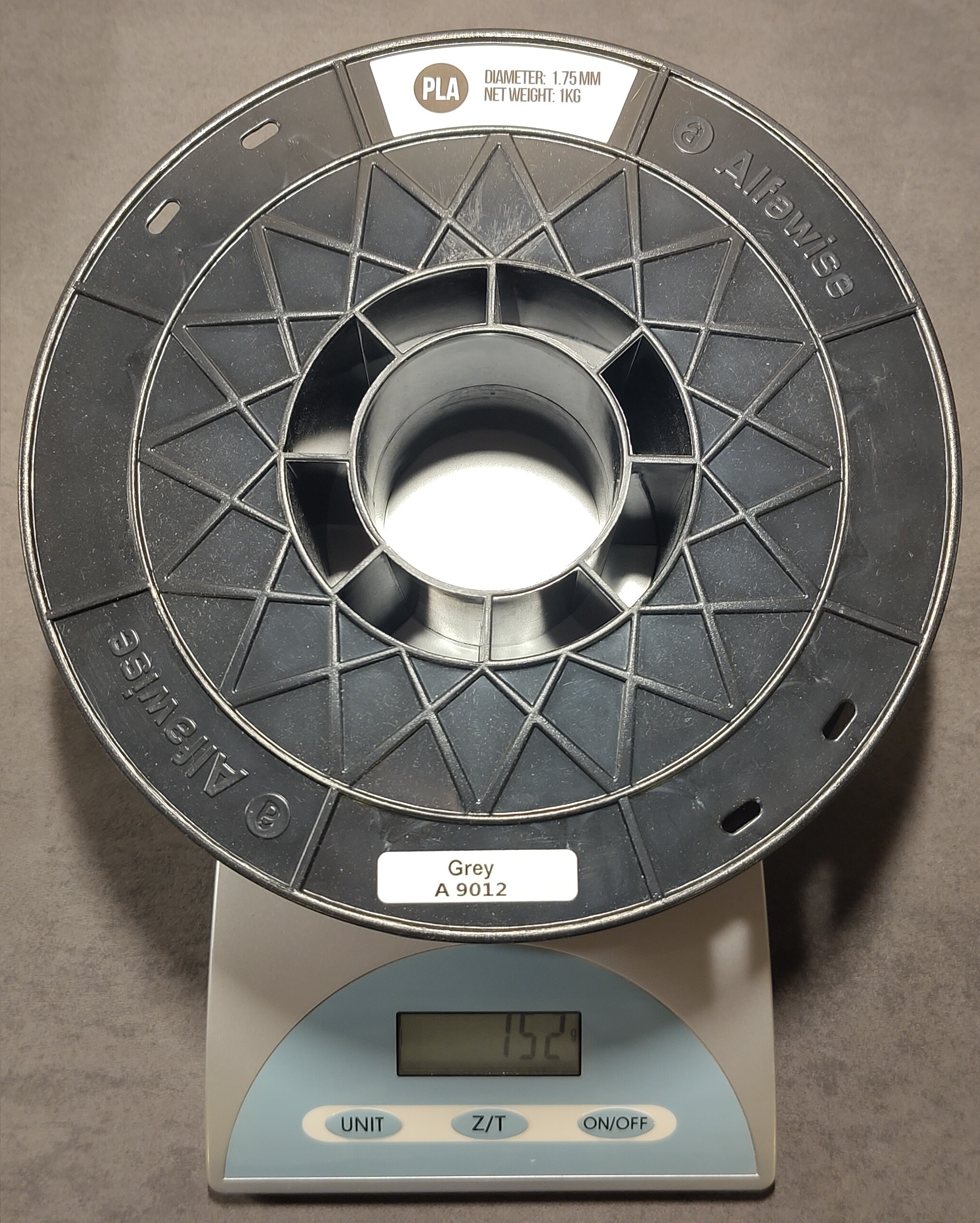

Alfawise PLA (Plastic Spool 1)

  • Printing temp: 195-220C
  • Bed temp: 45-60C
  • Empty spool weight: 152g
  • Advertised filament weight: 1000g
  • Outside Diameter: 200mm
  • Height: 67mm
  • Hole Diameter: 55.8mm

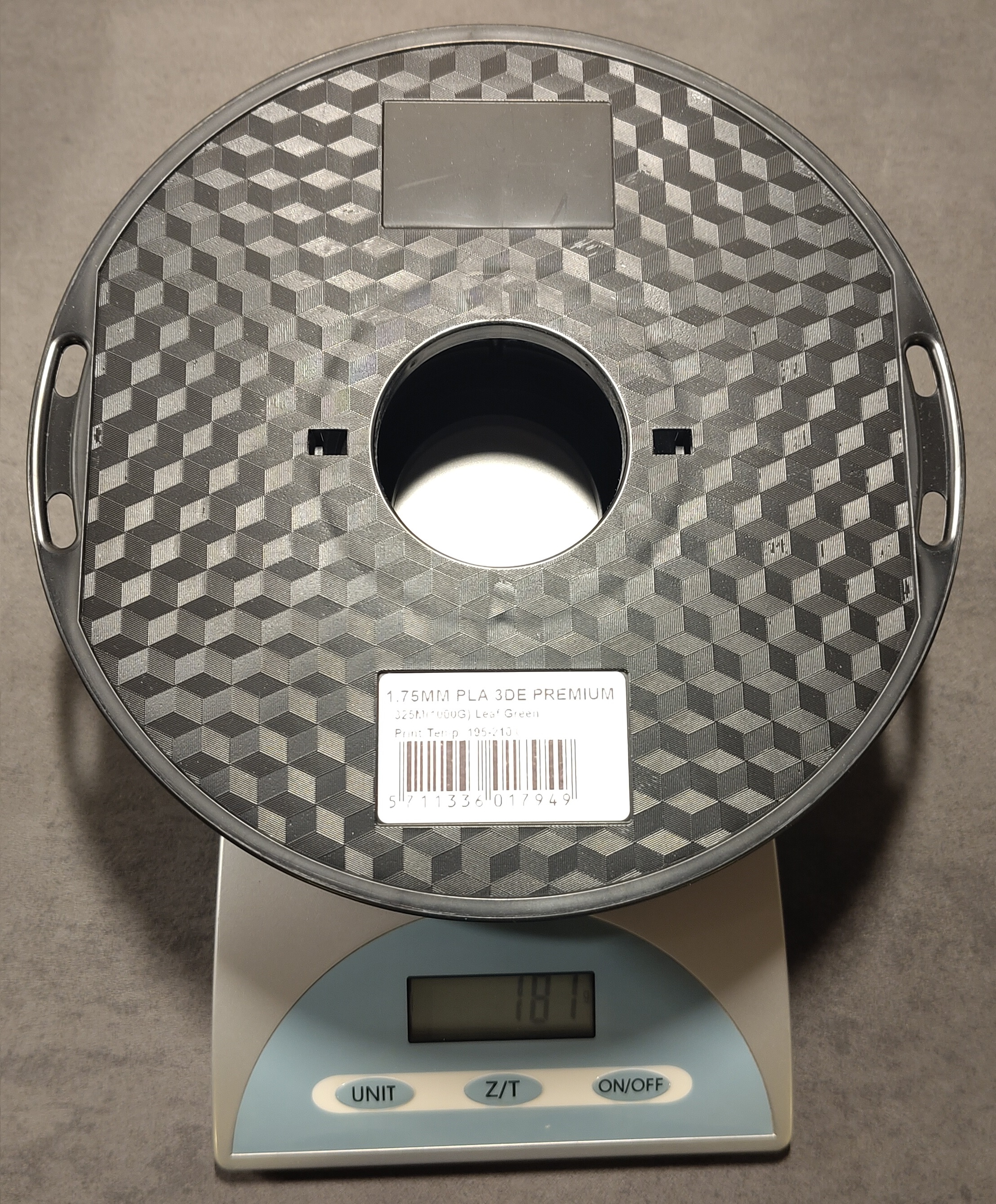

3DE Premium PLA (Plastic Spool)

  • Printing temp: 195-210C
  • Bed temp: 45-60C
  • Empty spool weight: 181g
  • Advertised filament weight: 1000g
  • Outside Diameter: 197mm
  • Height: 64mm
  • Hole Diameter: 52.9mm

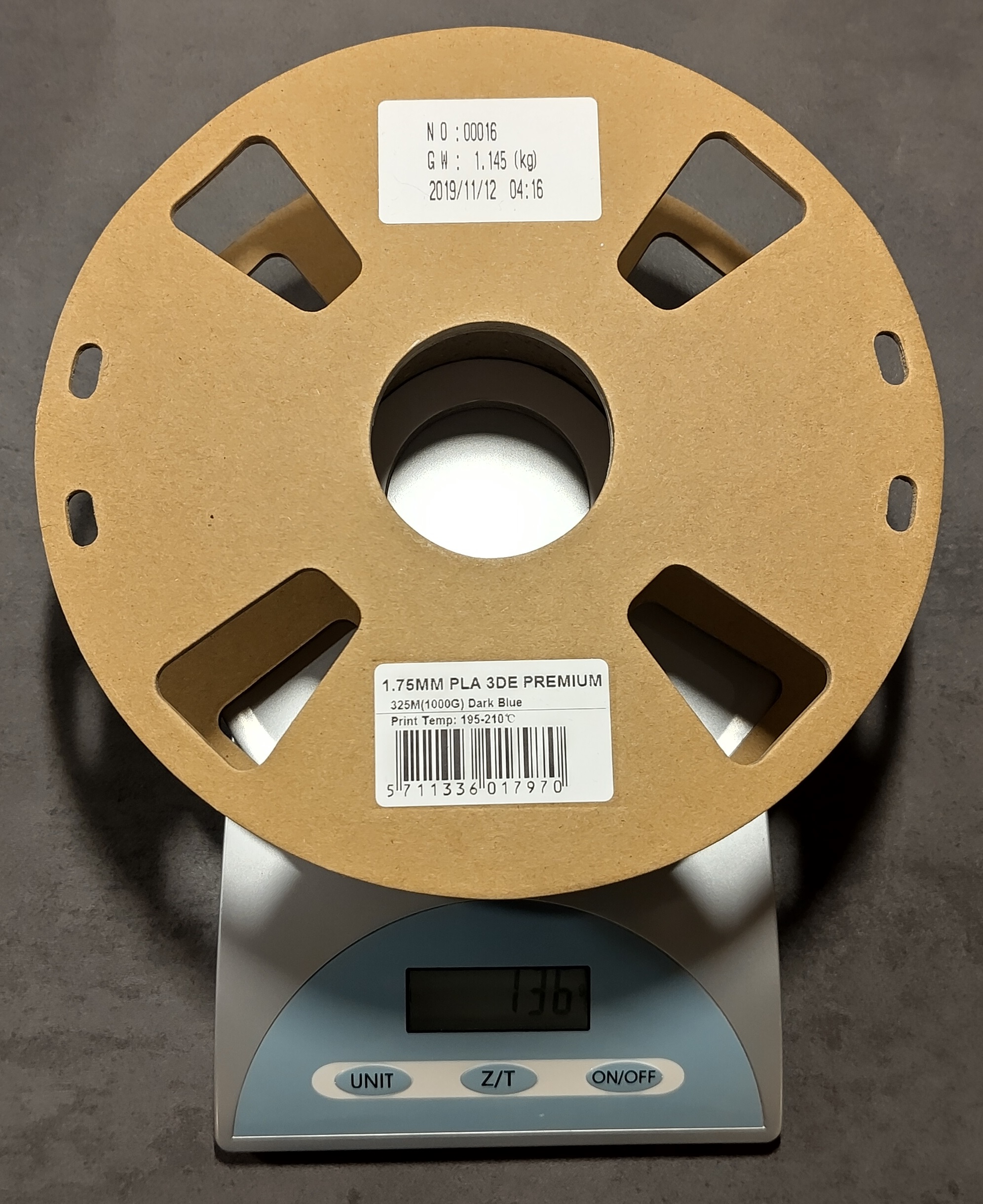

3DE Premium PLA (Cardboard Spool)

  • Printing temp: 195-210C
  • Bed temp: 45-60C
  • Empty spool weight: 136g
  • Advertised filament weight: 1000g
  • Outside Diameter: 197mm
  • Height: 63mm
  • Hole Diameter: 52.5mm

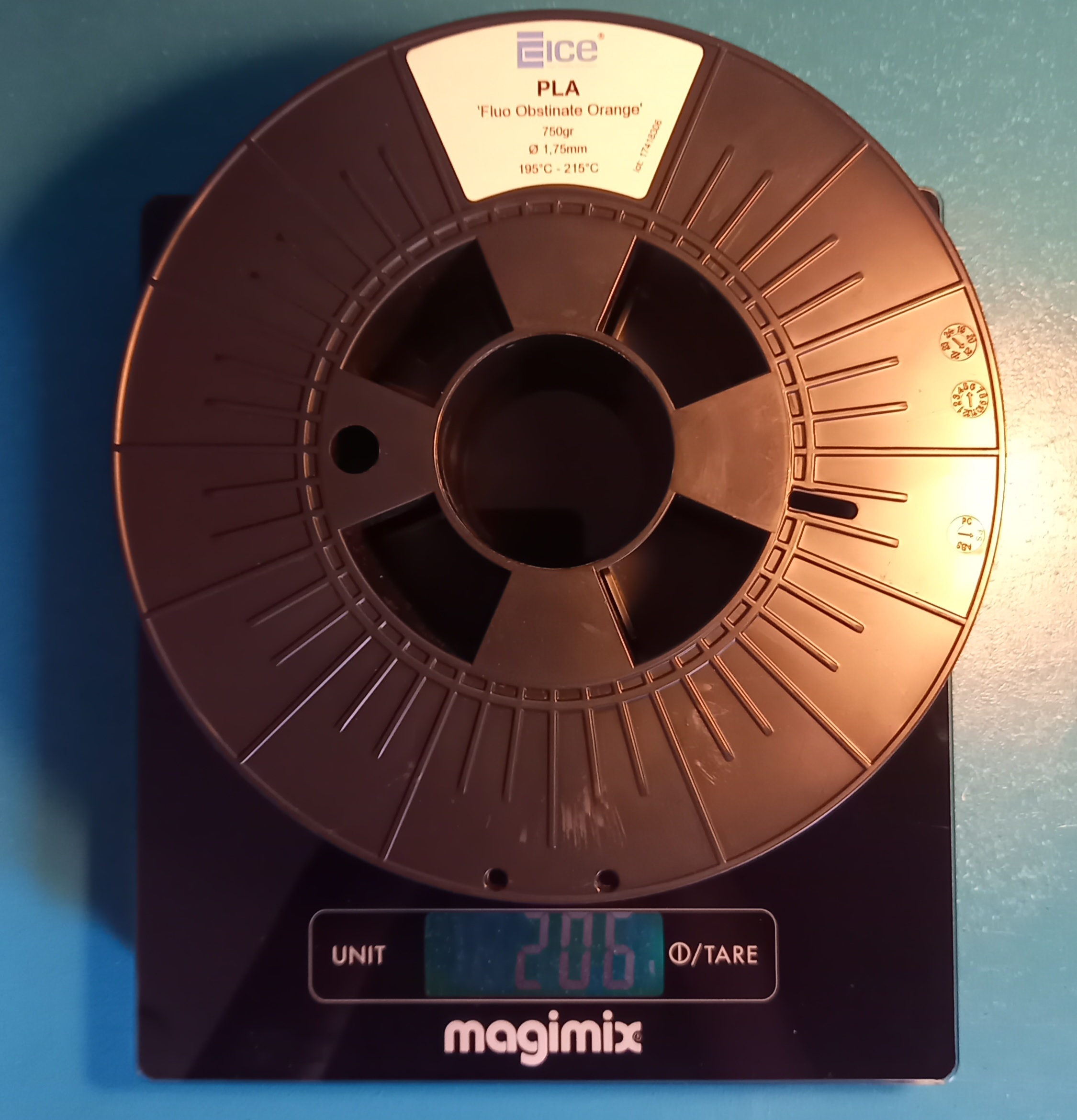

ICE Filaments PLA

  • Printing temp: 195 C – 215 C
  • Bed temp: 35 C – 60 C
  • Empty spool weight: 206 g
  • Advertised filament weight: 750 g
  • Outside Diameter: 198 mm
  • Height: 56 mm
  • Hole Diameter: 53 mm

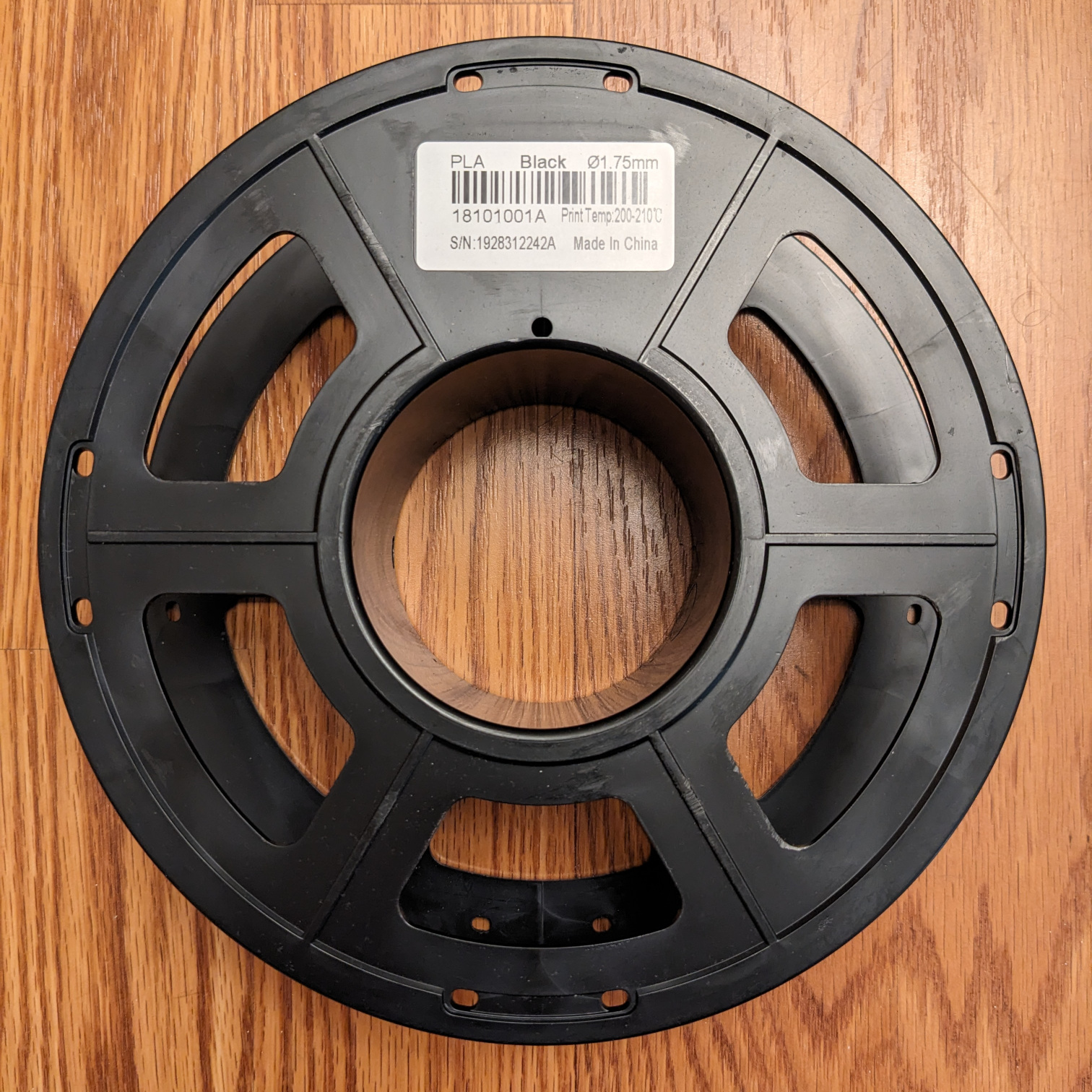

SUNLU PLA

  • Empty spool weight: 124g
  • Advertised filament weight: 1000g
  • Outside Diameter: 195mm
  • Hole Diameter: 75mm
  • Height: 60mm
  • Printing temp: 200-210C
  • Bed temp: 50-65C

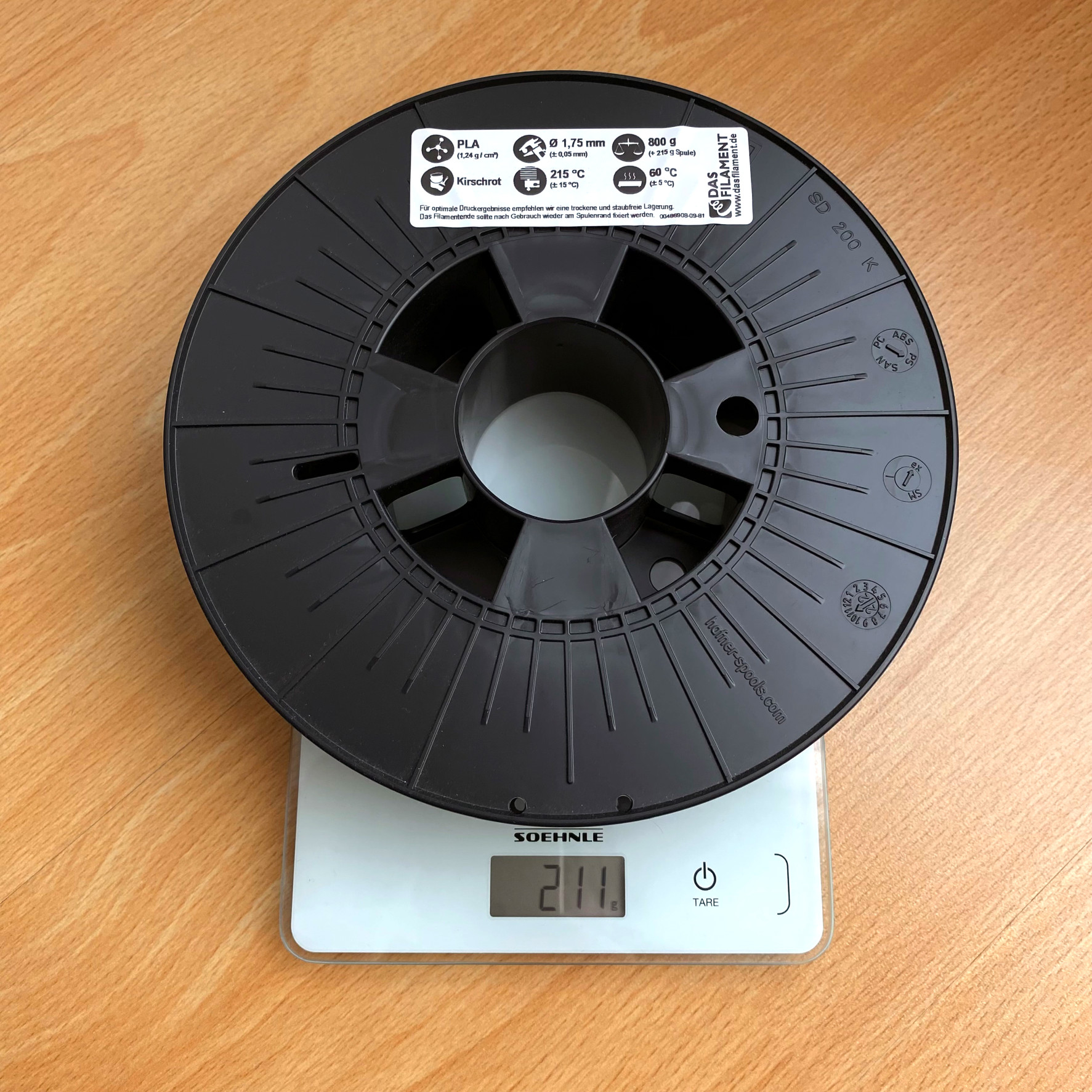

DasFilament PLA

  • Printing temp: 215 C
  • Bed temp: 60 C
  • Empty spool weight: 211 g
  • Advertised filament weight: 800 g
  • Outside Diameter: 200 mm
  • Height: 53 mm
  • Hole Diameter: 52 mm

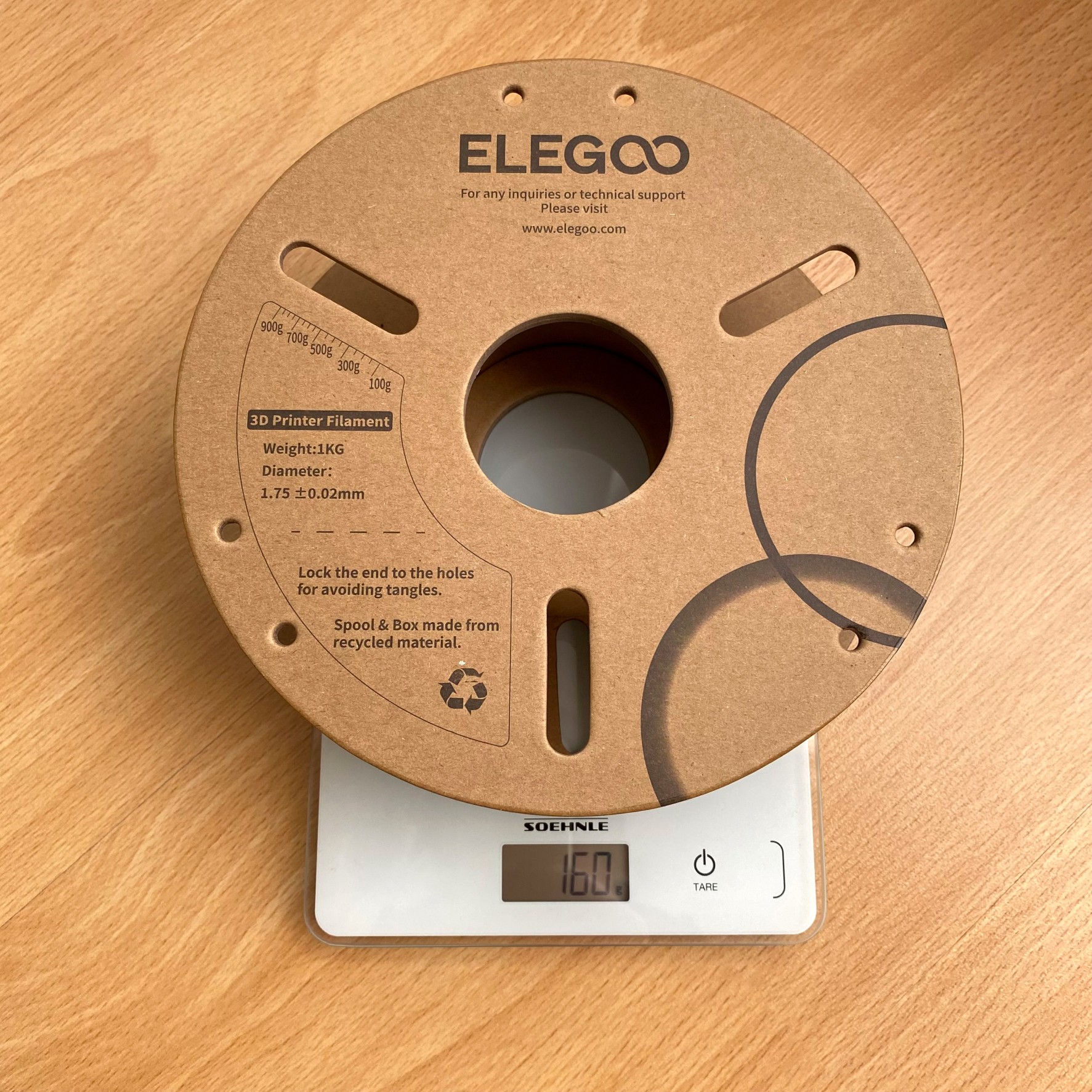

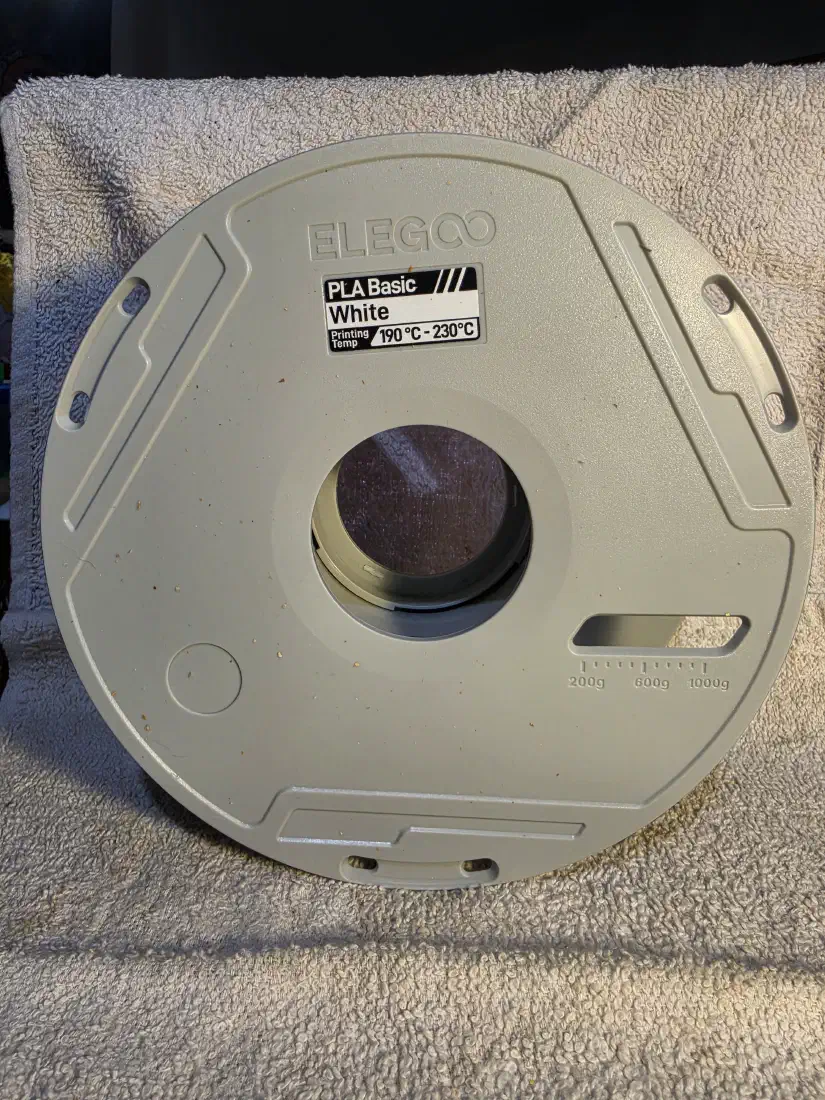

Elegoo PLA

  • Printing temp: 190 C – 220 C
  • Bed temp: 25 C – 60 C
  • Empty spool weight: 160 g
  • Advertised filament weight: 1000 g
  • Outside Diameter: 200 mm
  • Height: 64 mm
  • Hole Diameter: 53 mm

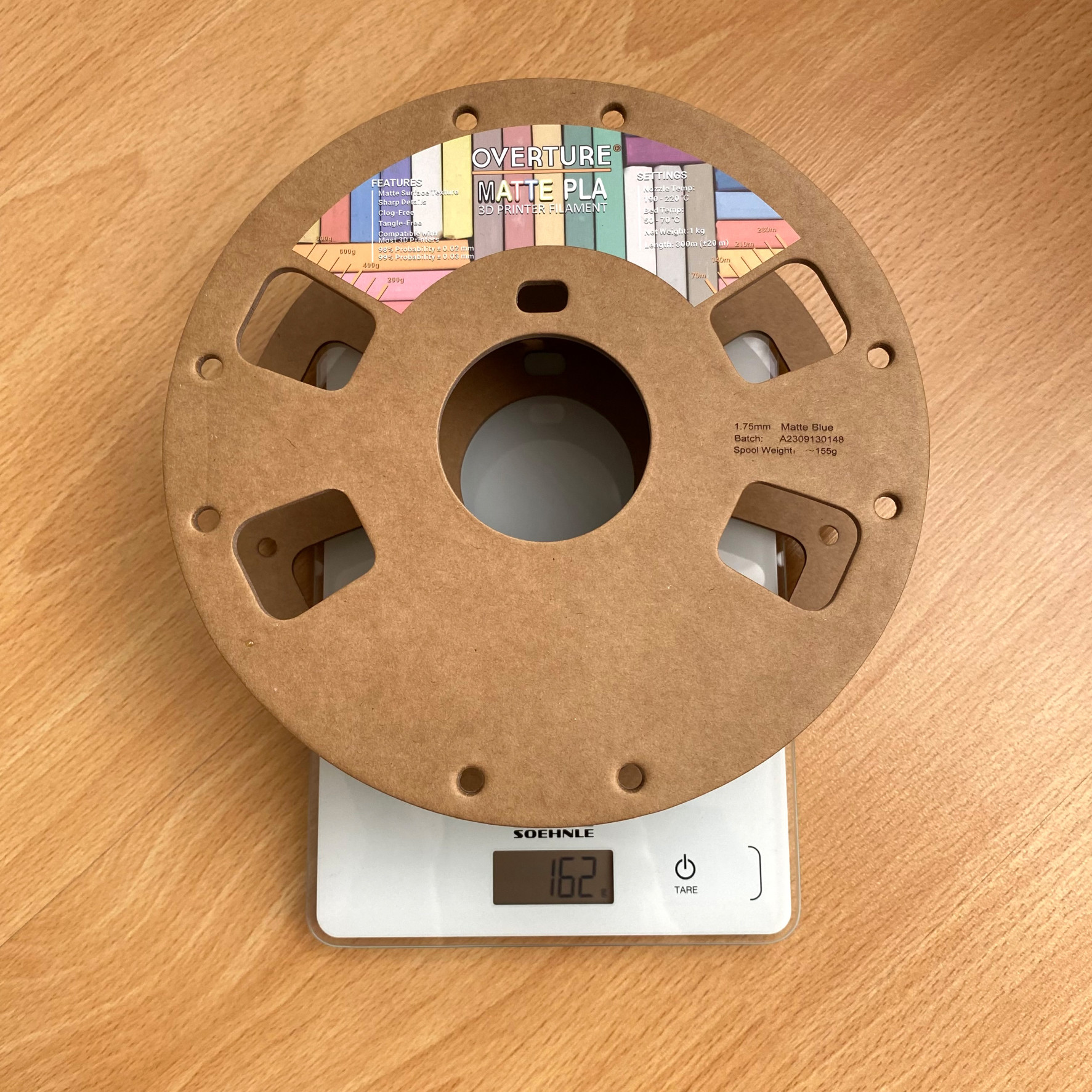

Overture Matte PLA

  • Printing temp: 190 C – 220 C
  • Bed temp: 50 C – 70 C
  • Empty spool weight: 162 g
  • Advertised filament weight: 1000 g
  • Outside Diameter: 200 mm
  • Height: 67 mm
  • Hole Diameter: 56 mm

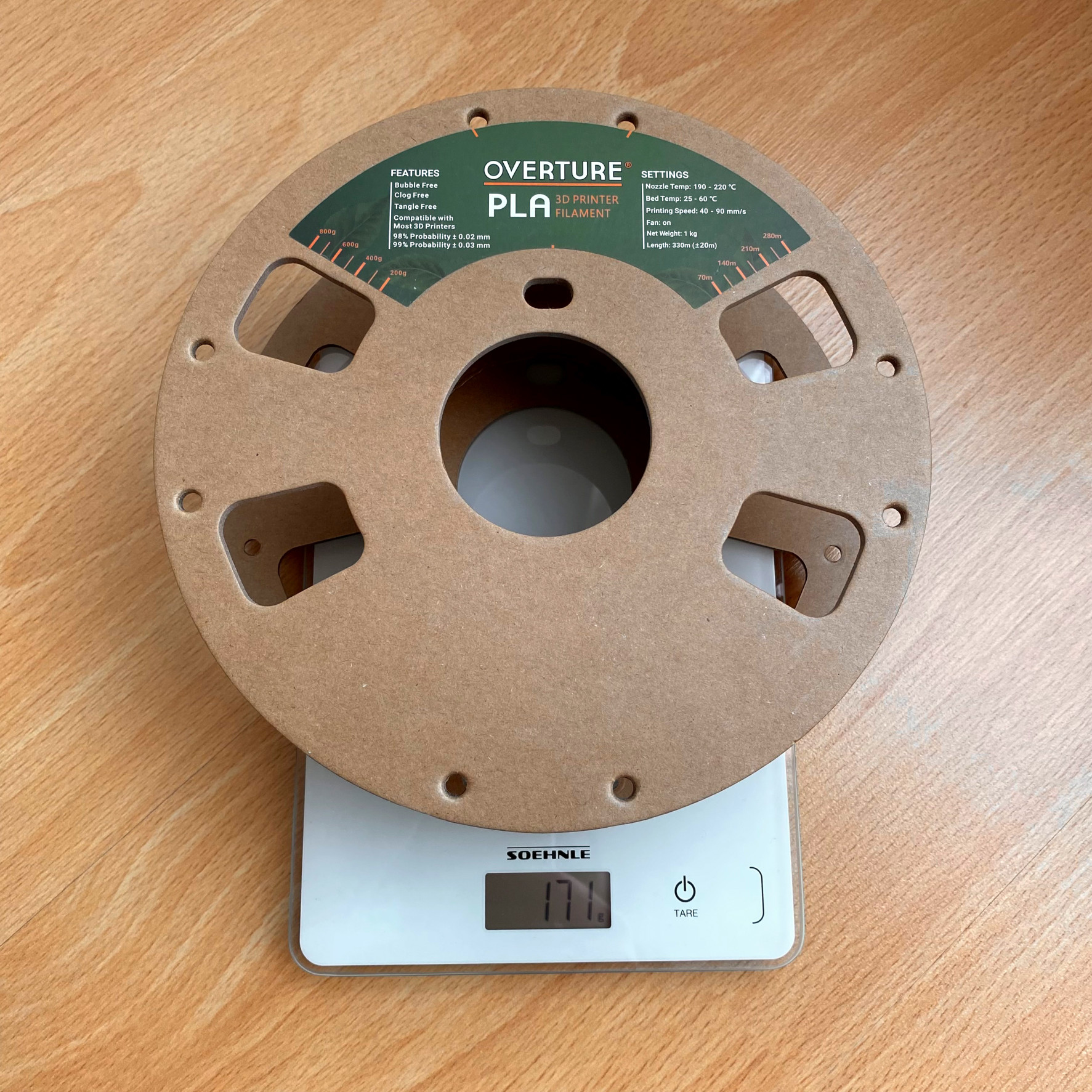

Overture PLA

  • Printing temp: 190 C – 220 C
  • Bed temp: 25 C – 60 C
  • Empty spool weight: 171 g
  • Advertised filament weight: 1000 g
  • Outside Diameter: 200 mm
  • Height: 65 mm
  • Hole Diameter: 55 mm

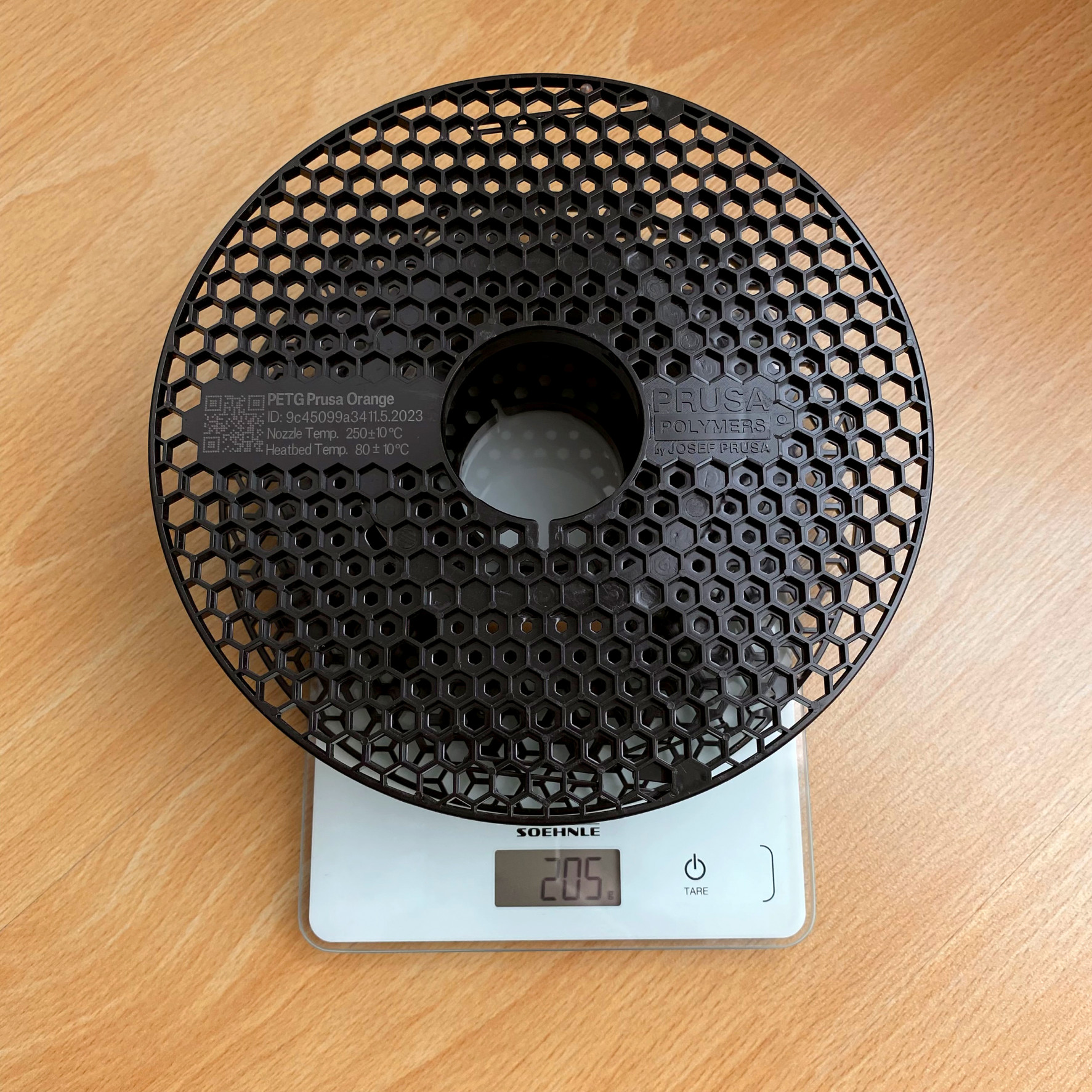

Prusa Prusament PETG

  • Printing temp: 240 C – 260 C
  • Bed temp: 70 C – 90 C
  • Empty spool weight: 205 g
  • Advertised filament weight: 1000 g
  • Outside Diameter: 200 mm
  • Height: 68 mm
  • Hole Diameter: 51 mm

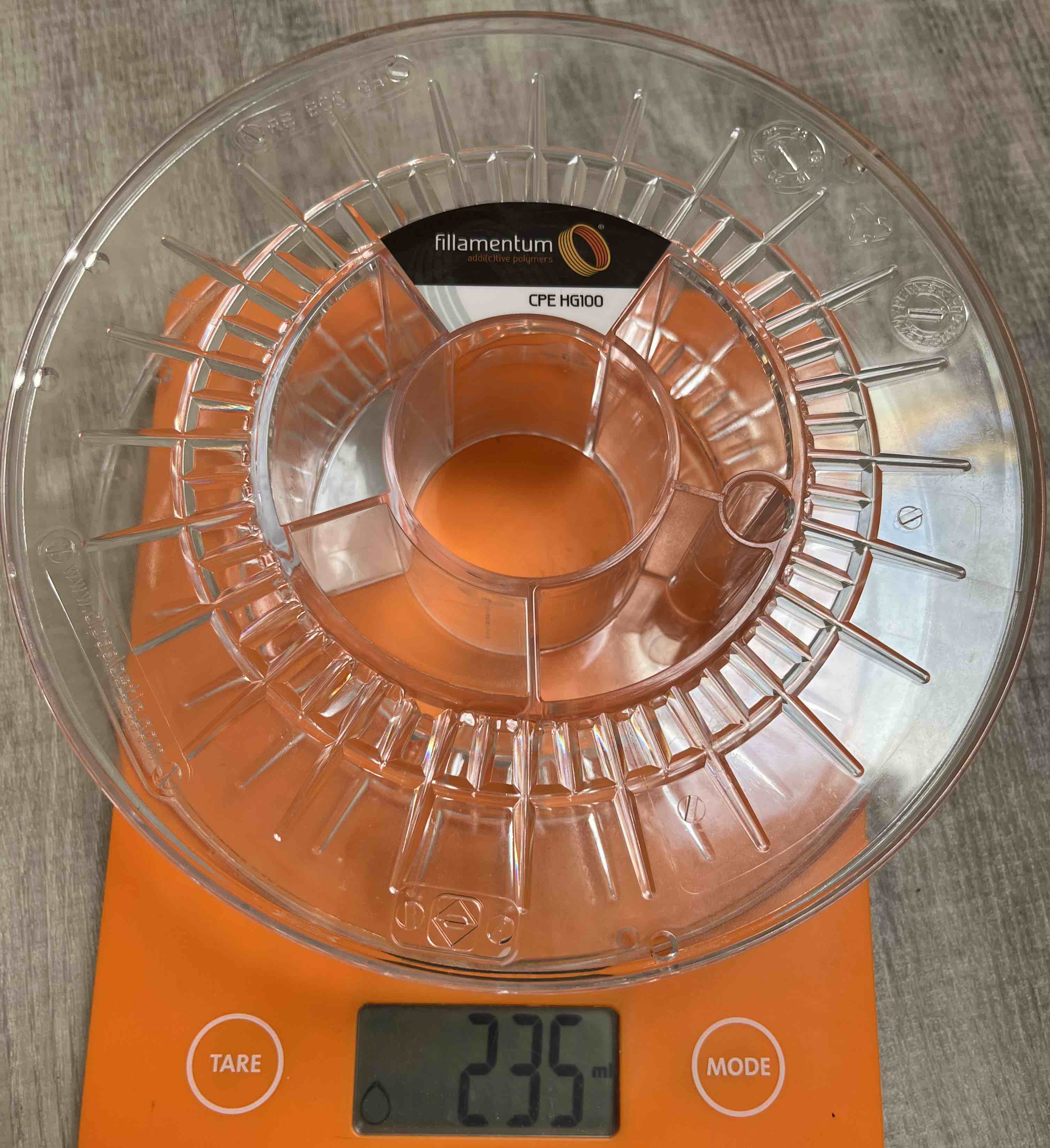

Fillamentum CPE HG100

  • Printing temp: 255–275C
  • Bed temp: 70-85C
  • Empty spool weight: 235g
  • Advertised filament weight: 750g
  • Outside Diameter: 200mm
  • Height: 54mm
  • Hole Diameter: 53mm

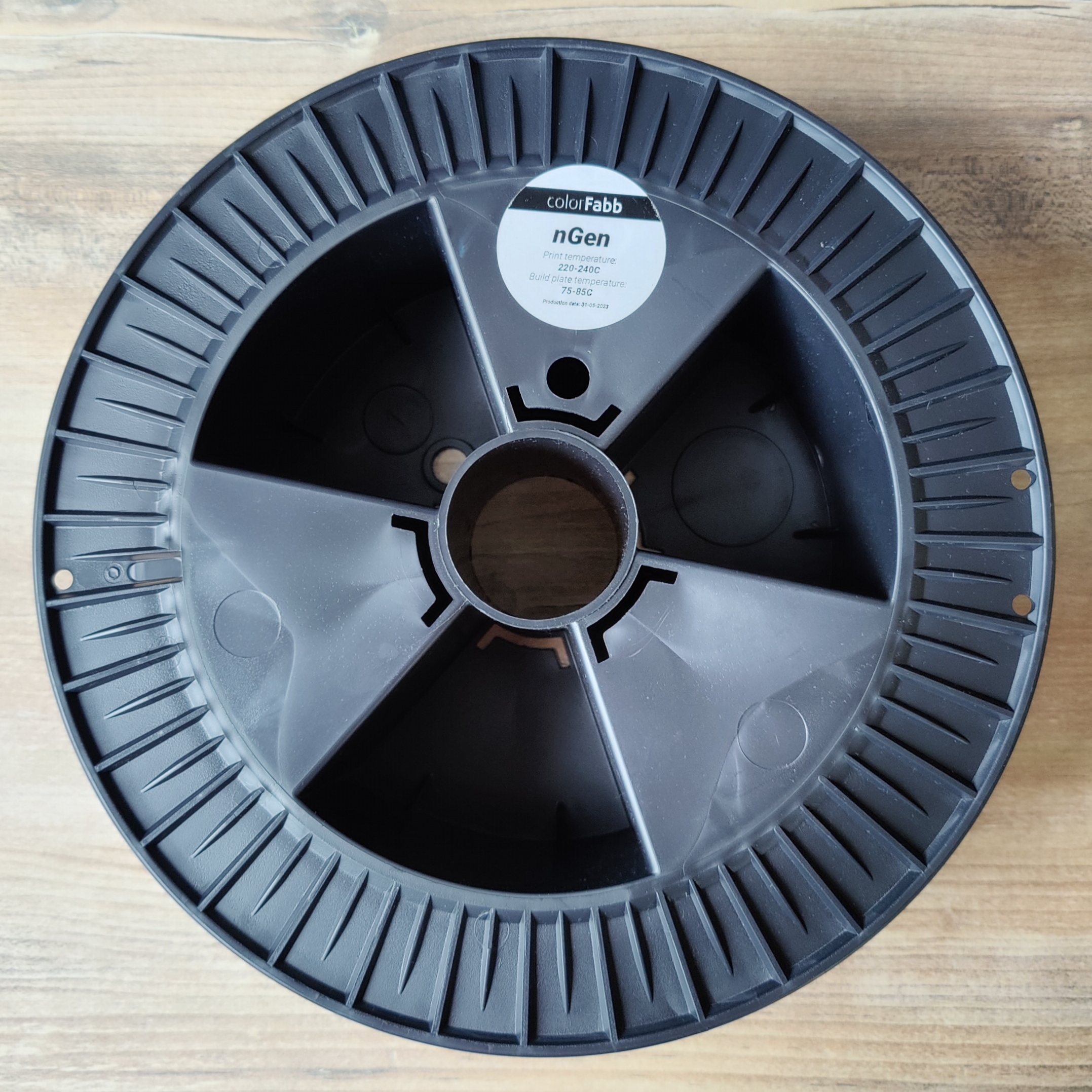

colorFabb nGen

  • Printing temp: 220-240C
  • Bed temp: 75-85C
  • Empty spool weight: 604g
  • Advertised filament weight: 2200g
  • Outside Diameter: 300mm
  • Height: 100mm
  • Hole Diameter: 52mm

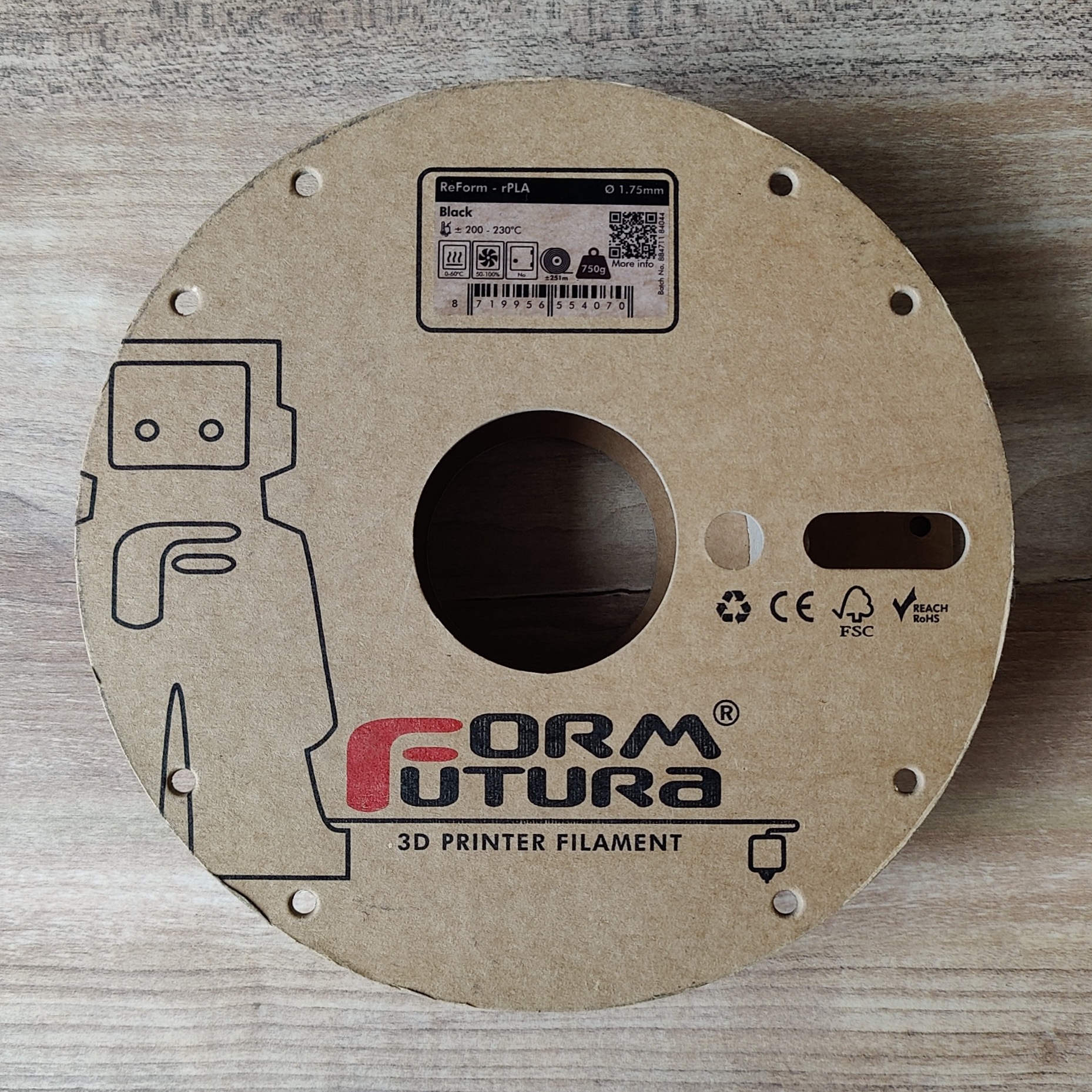

FormFutura ReForm - rPLA (Cardboard Spool)

  • Printing temp: 200-230C
  • Bed temp: 0-60C
  • Empty spool weight: 155g
  • Advertised filament weight: 750g
  • Outside Diameter: 200mm
  • Height: 52mm
  • Hole Diameter: 56mm

Polymaker PolyTerra PLA (Cardboard Spool)

  • Printing temp: 190-230C
  • Bed temp: 25-60C
  • Empty spool weight: 147g
  • Advertised filament weight: 1000g
  • Outside Diameter: 200mm
  • Height: 67mm
  • Hole Diameter: 56mm

ESun PLA+ (cardboard spool)

  • Printing temp: 210-230C
  • Bed temp: 45-60C
  • Empty spool weight: 147g
  • Advertised filament weight: 1000g
  • Height: 62mm
  • Hole Diameter: 54mm

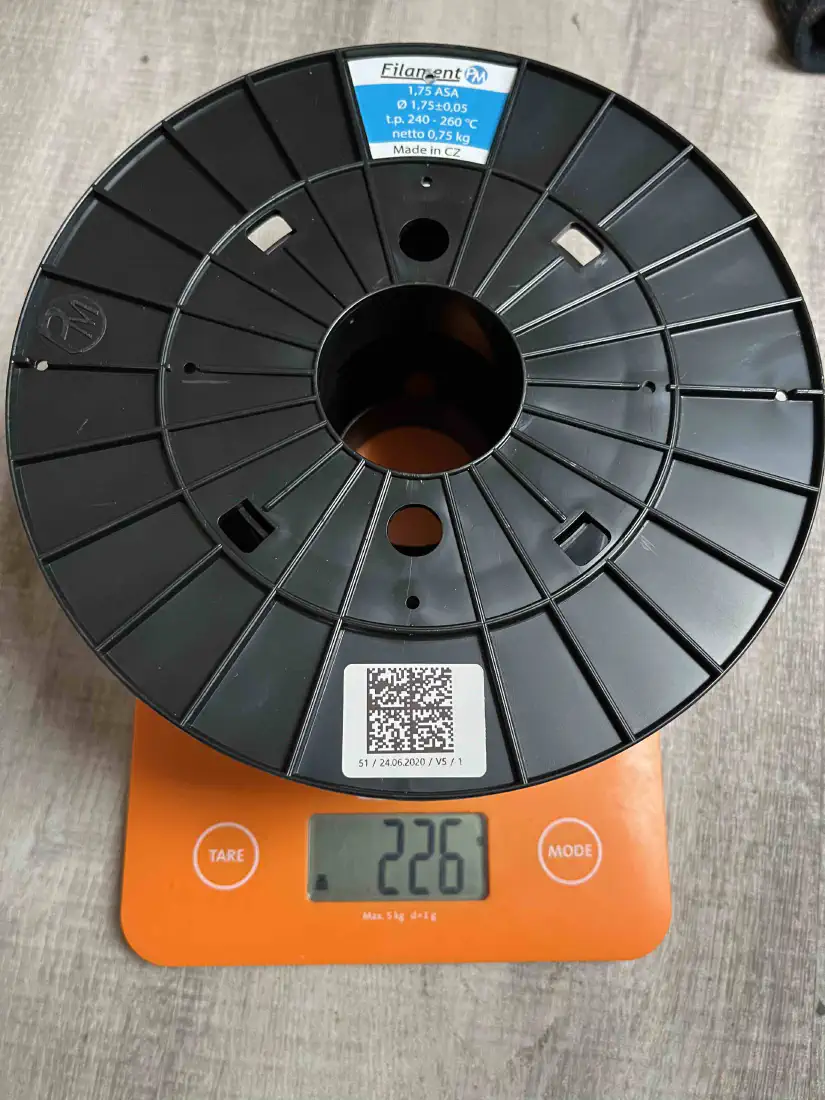

Filament PM ASA

  • Printing temp: 240-260
  • Empty spool weight: 226g
  • Advertised filament weight: 750g
  • Outside Diameter: 203mm
  • Height: 90mm
  • Hole Diameter: 50mm

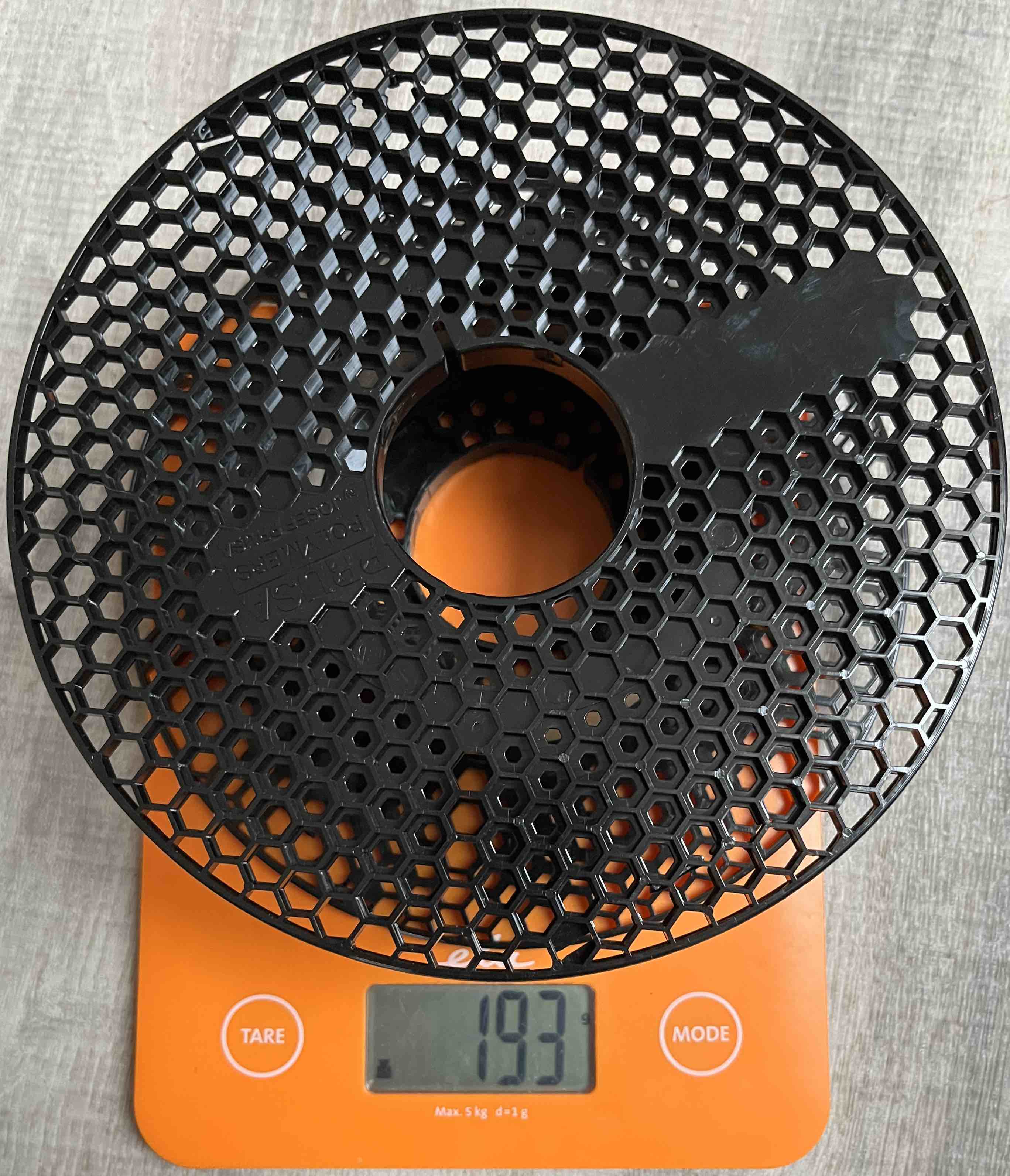

PETG Prusa Galaxy Black

  • Printing temp: 240-260C
  • Bed temp: 70-90C
  • Empty spool weight: 193g
  • Advertised filament weight: 1000g
  • Outside Diameter: 200mm
  • Height: 68mm
  • Hole Diameter: 51mm

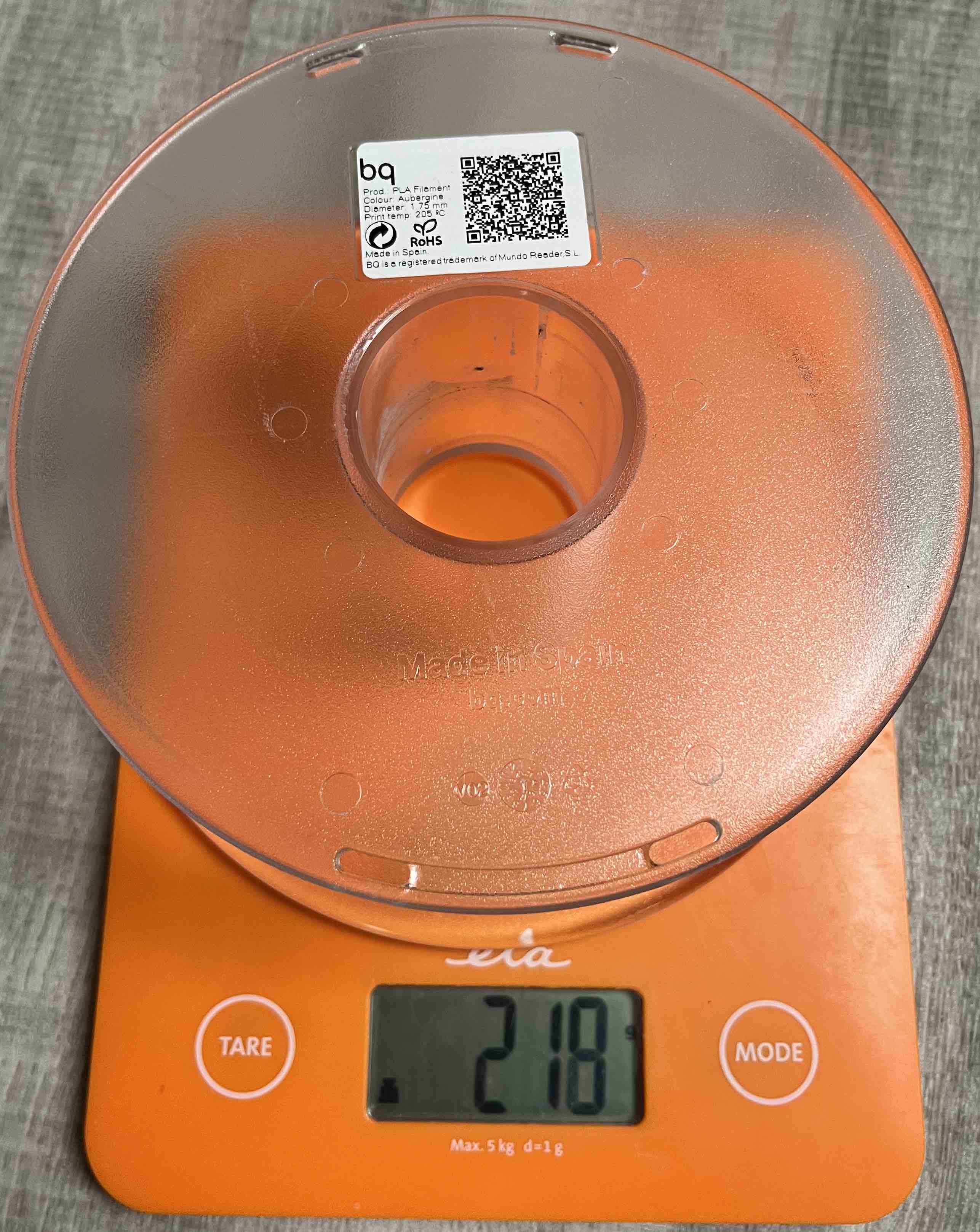

bq PLA

  • Printing temp: 205
  • Empty spool weight: 218g
  • Advertised filament weight: 1000g
  • Outside Diameter: 176mm
  • Height: 76mm
  • Hole Diameter: 44mm

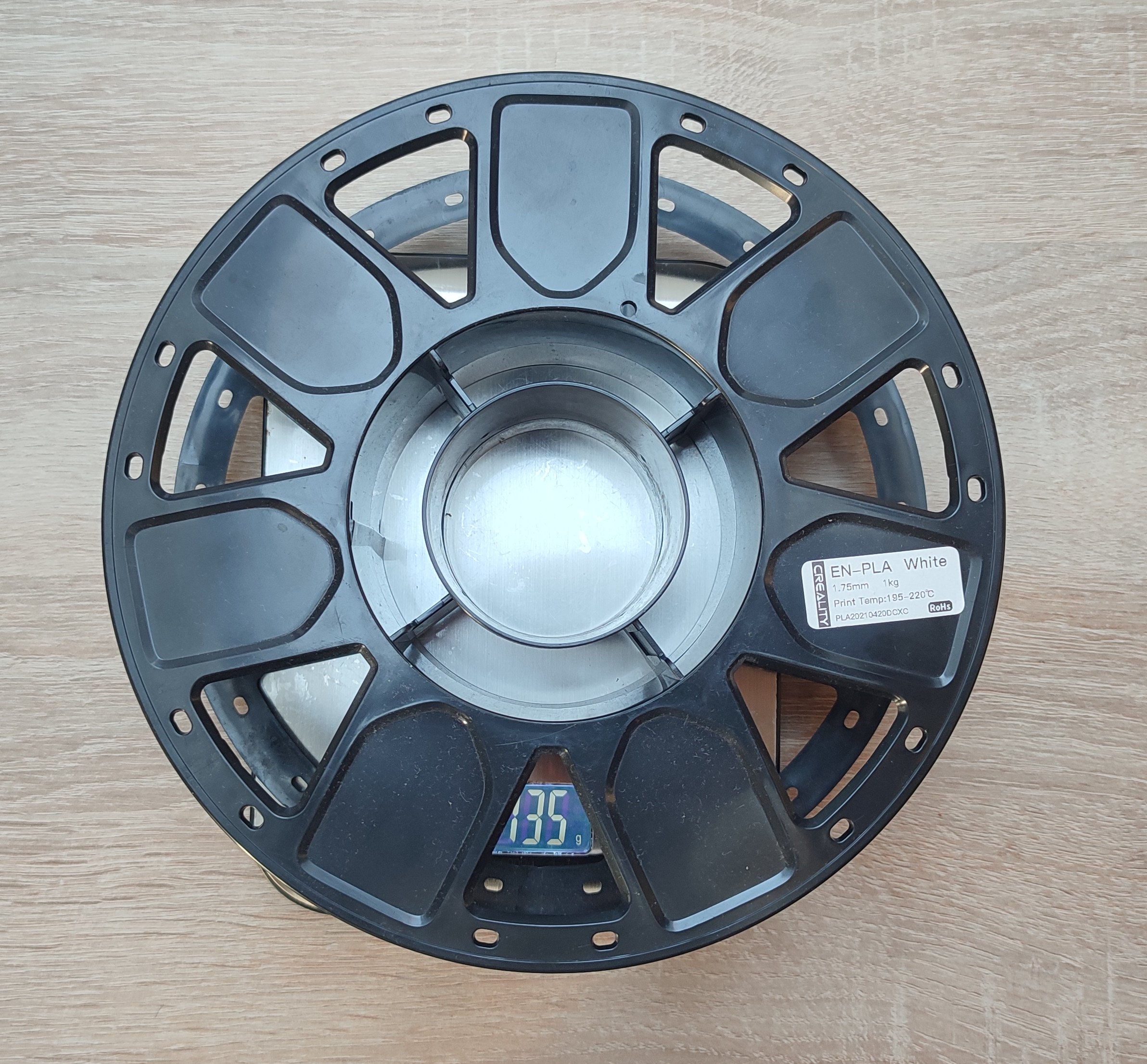

Creality 3D PLA White

  • Printing temp: 195-220C
  • Bed temp: 0/60C
  • Empty spool weight: 135g
  • Advertised filament weight: 1000g
  • Outside Diameter: 198mm
  • Height: 65mm
  • Hole Diameter: 56mm

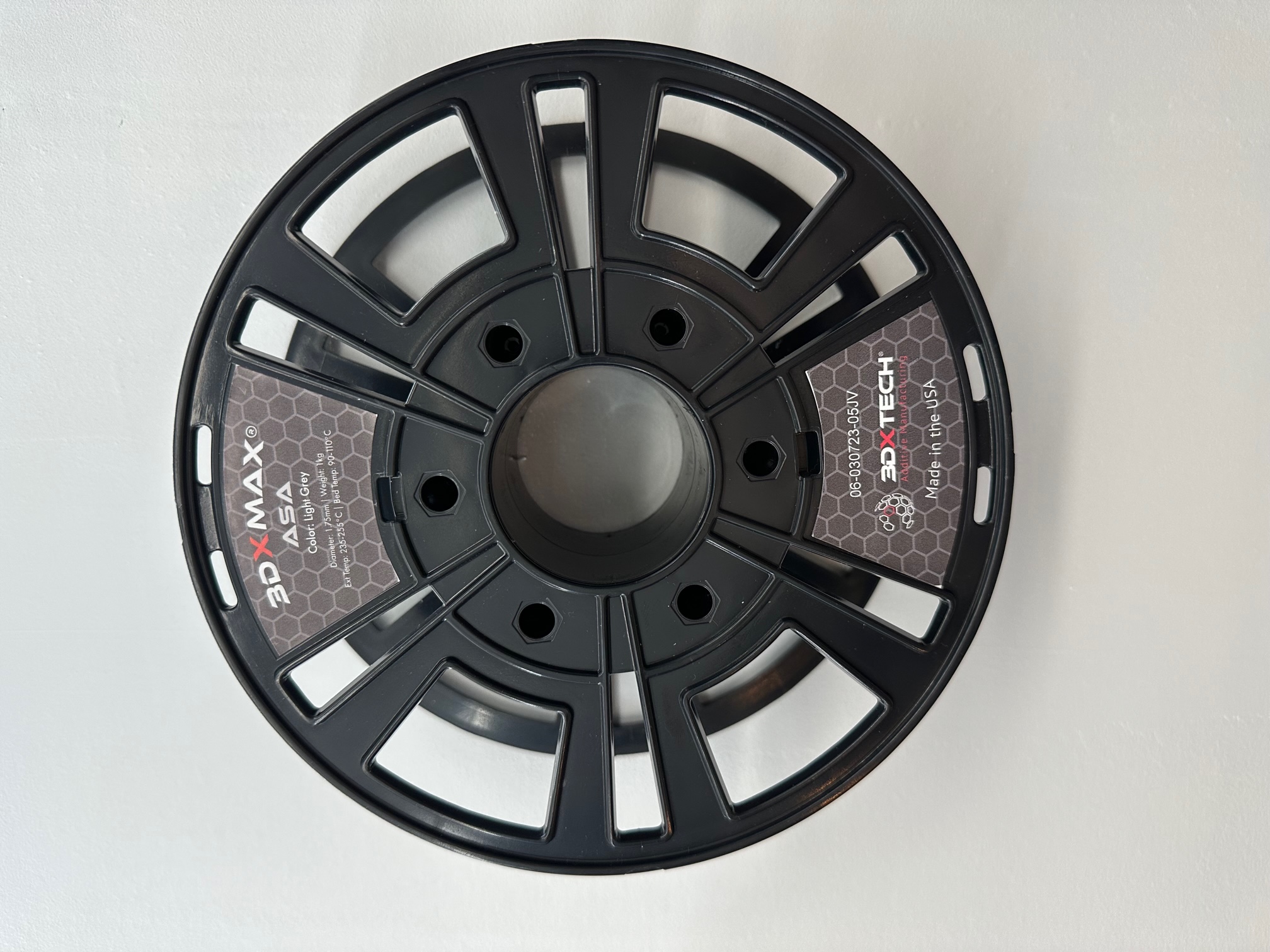

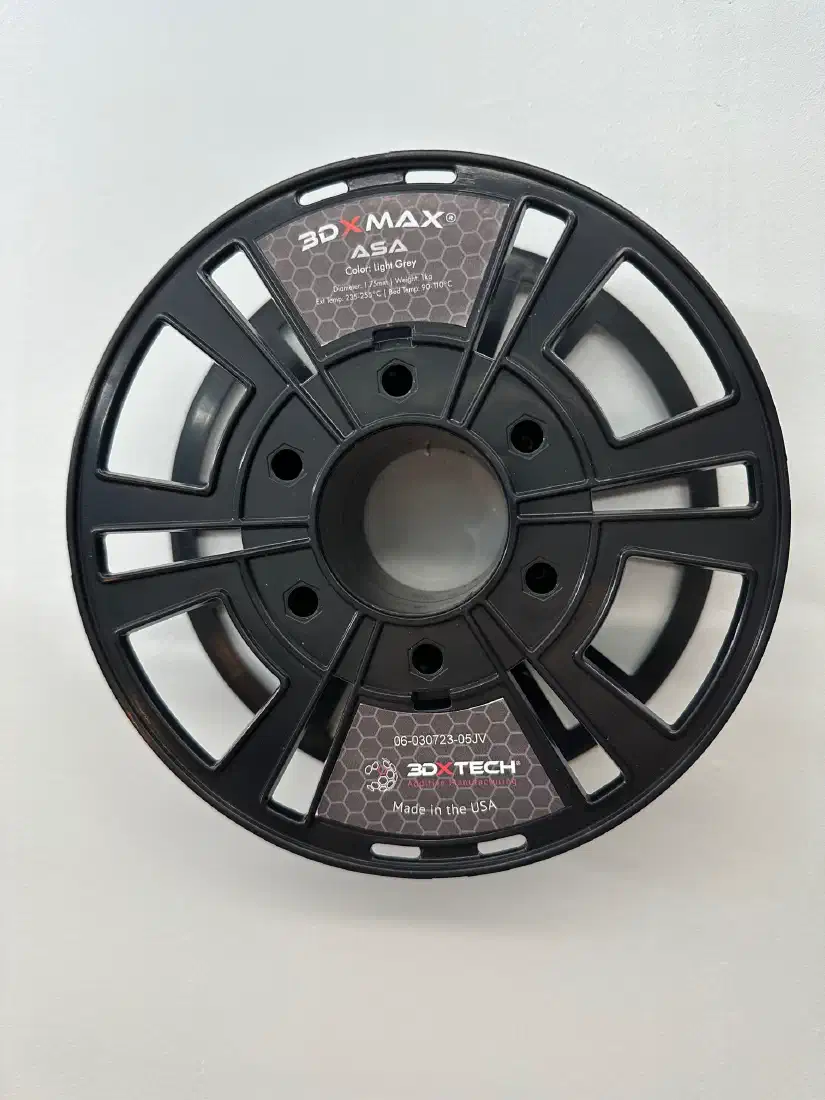

3DXTECH ASA

  • Printing temp: 235 C – 255 C
  • Bed temp: 90 C - 110 C
  • Empty spool weight: 258 g
  • Advertised filament weight: 1 kg
  • Outside Diameter: 197 mm
  • Height: 74 mm
  • Hole Diameter: 52 mm

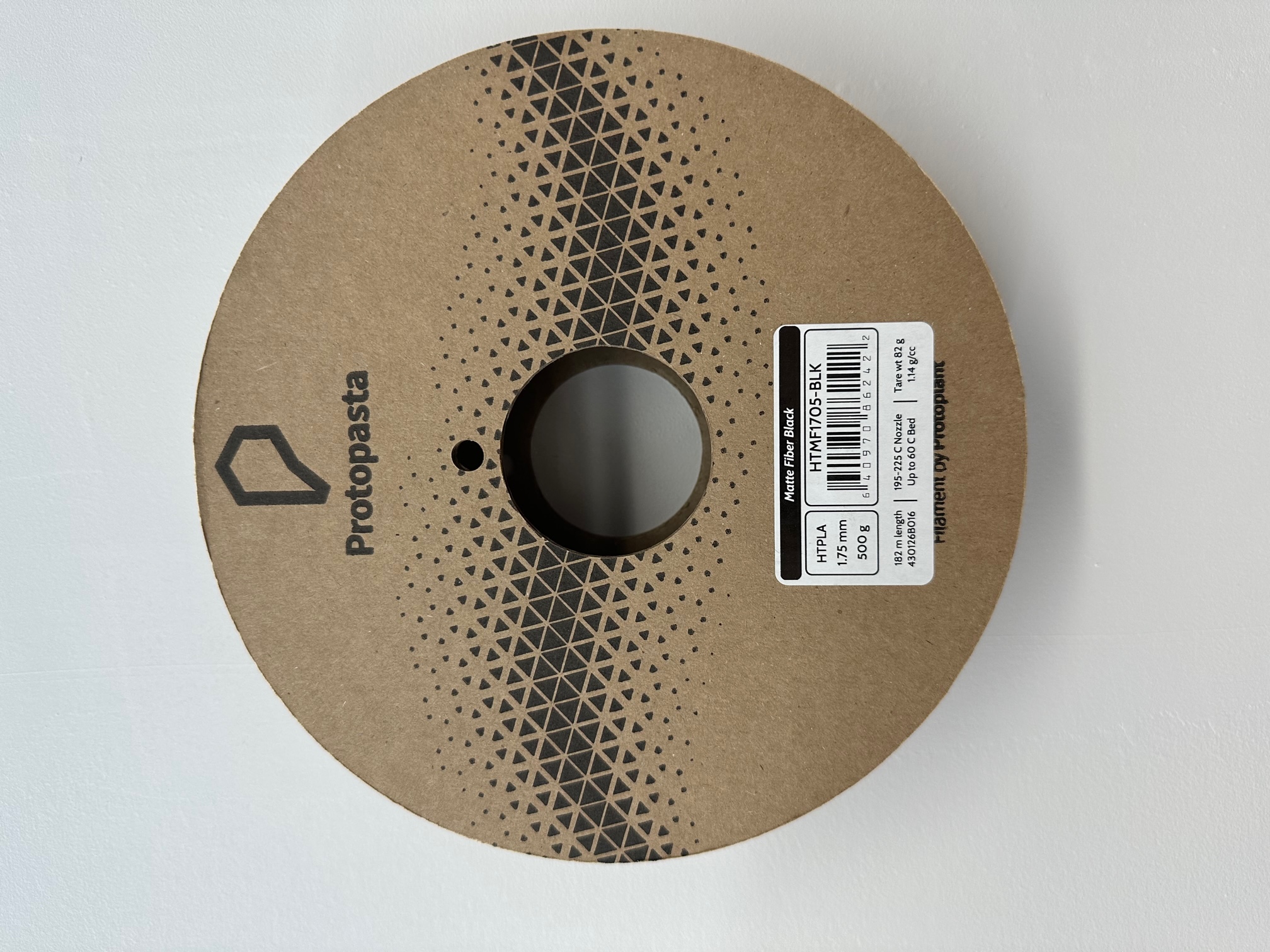

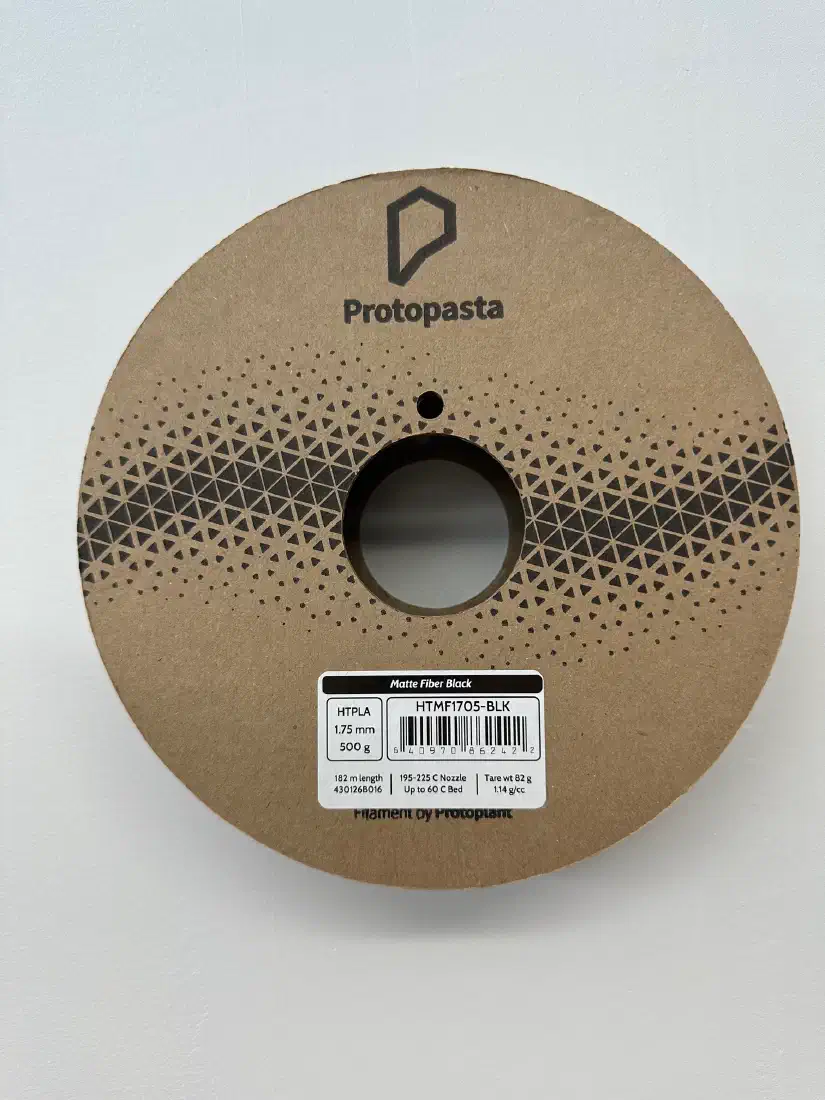

Protopasta Matte Fiber HTPLA

  • Printing temp: 195 C – 225 C
  • Bed temp: Up to 60 C
  • Empty spool weight: 84 g
  • Advertised filament weight: 500 g
  • Outside Diameter: 202 mm
  • Height: 55 mm
  • Hole Diameter: 52 mm
  • Recycleable Cardboard

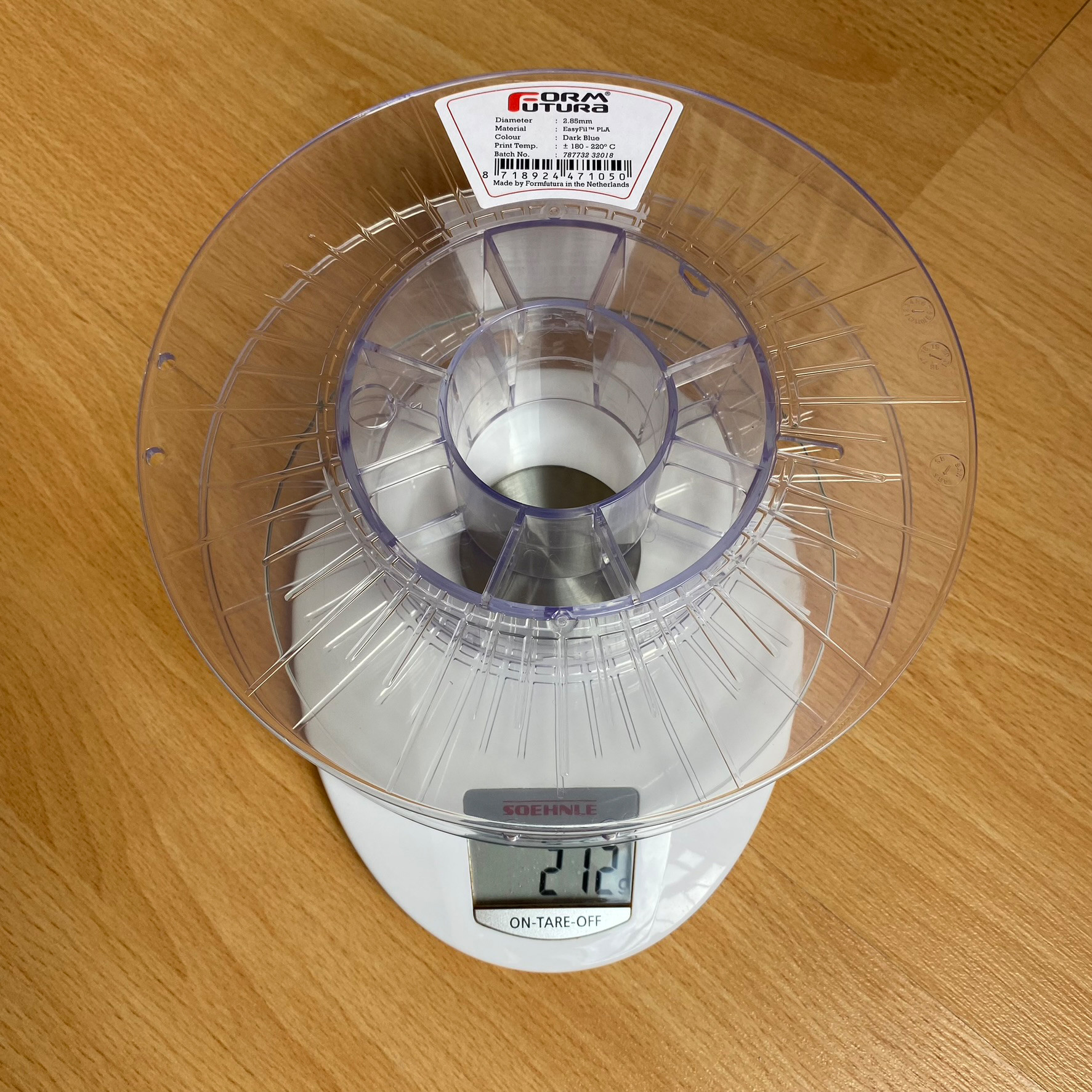

Formfutura EasyFil PLA

  • Printing temp: 180 C – 220 C
  • Bed temp: 50 C – 60 C
  • Empty spool weight: 212 g
  • Advertised filament weight: 750 g
  • Outside Diameter: 200 mm
  • Height: 53 mm
  • Hole Diameter: 53 mm

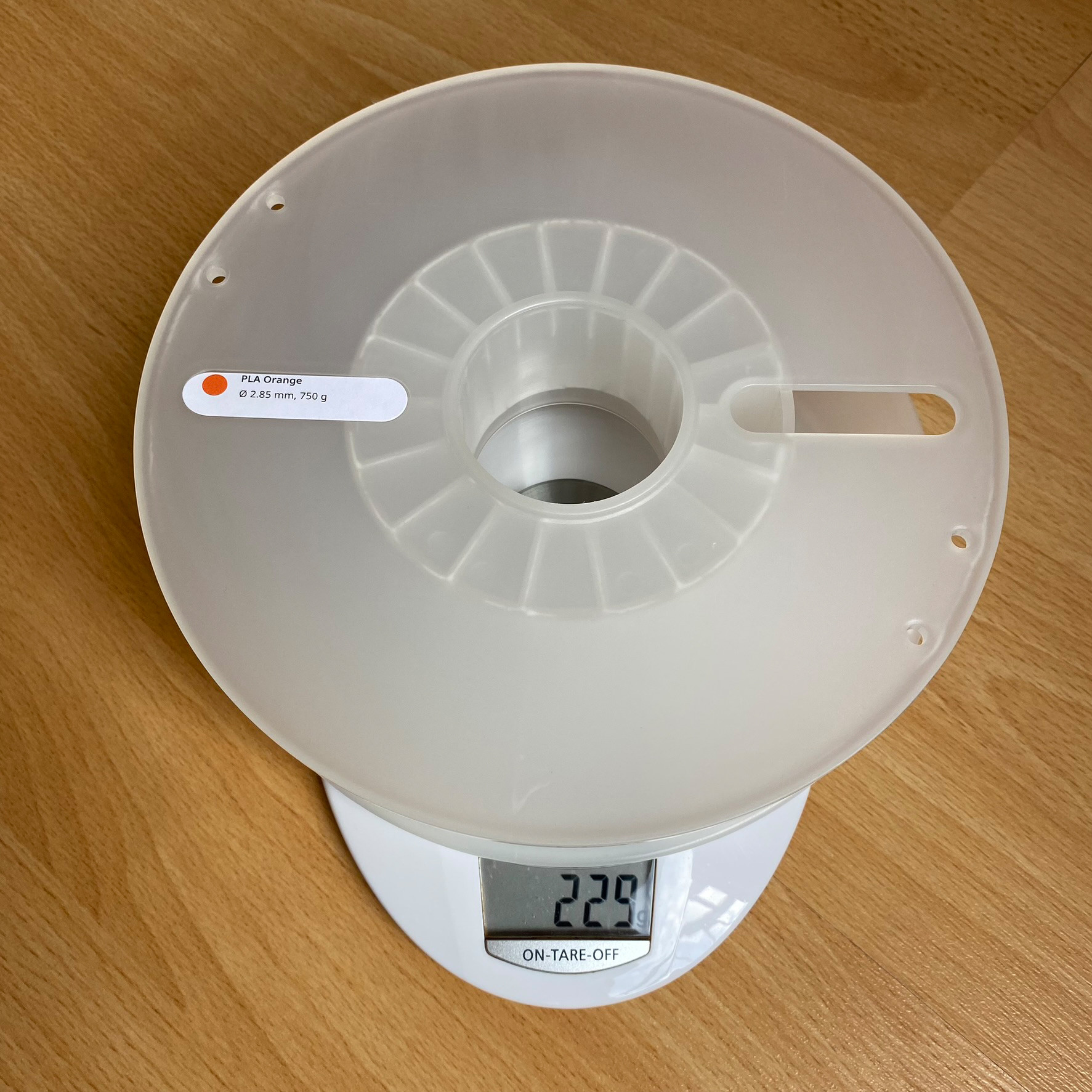

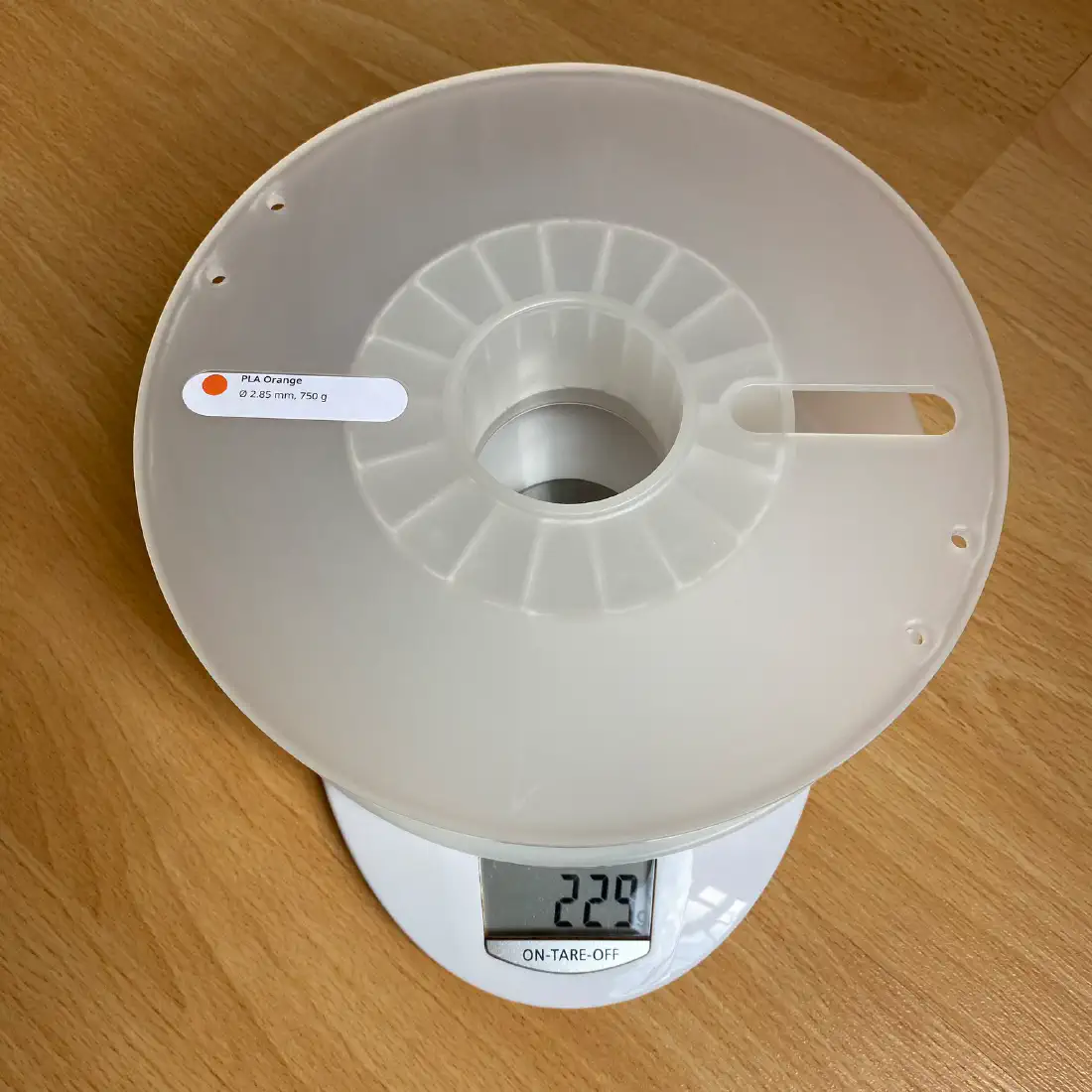

Ultimaker PLA

  • Printing temp: 200 C – 220 C
  • Bed temp: 60 C
  • Empty spool weight: 229 g
  • Advertised filament weight: 750 g
  • Outside Diameter: 200 mm
  • Height: 53 mm
  • Hole Diameter: 53 mm

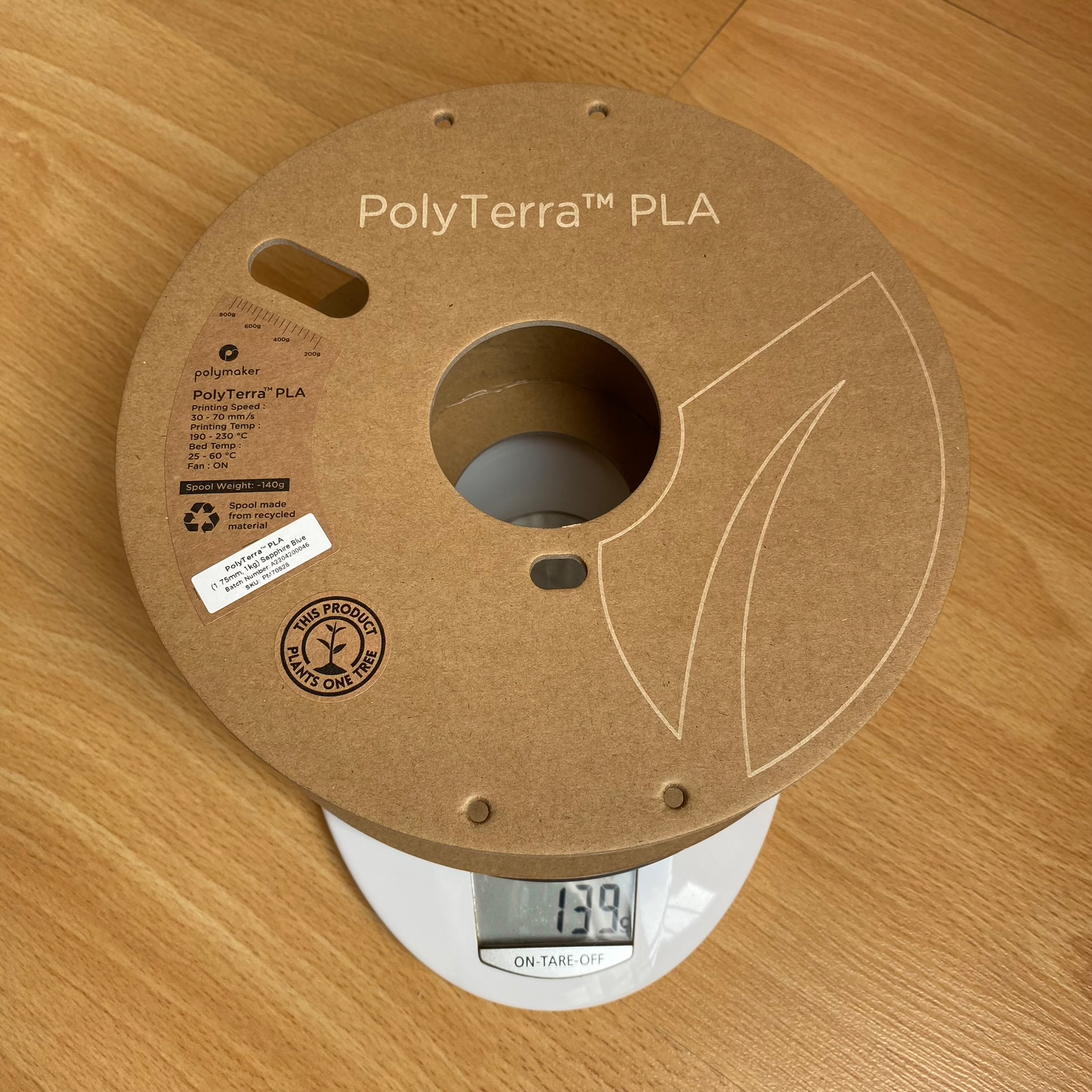

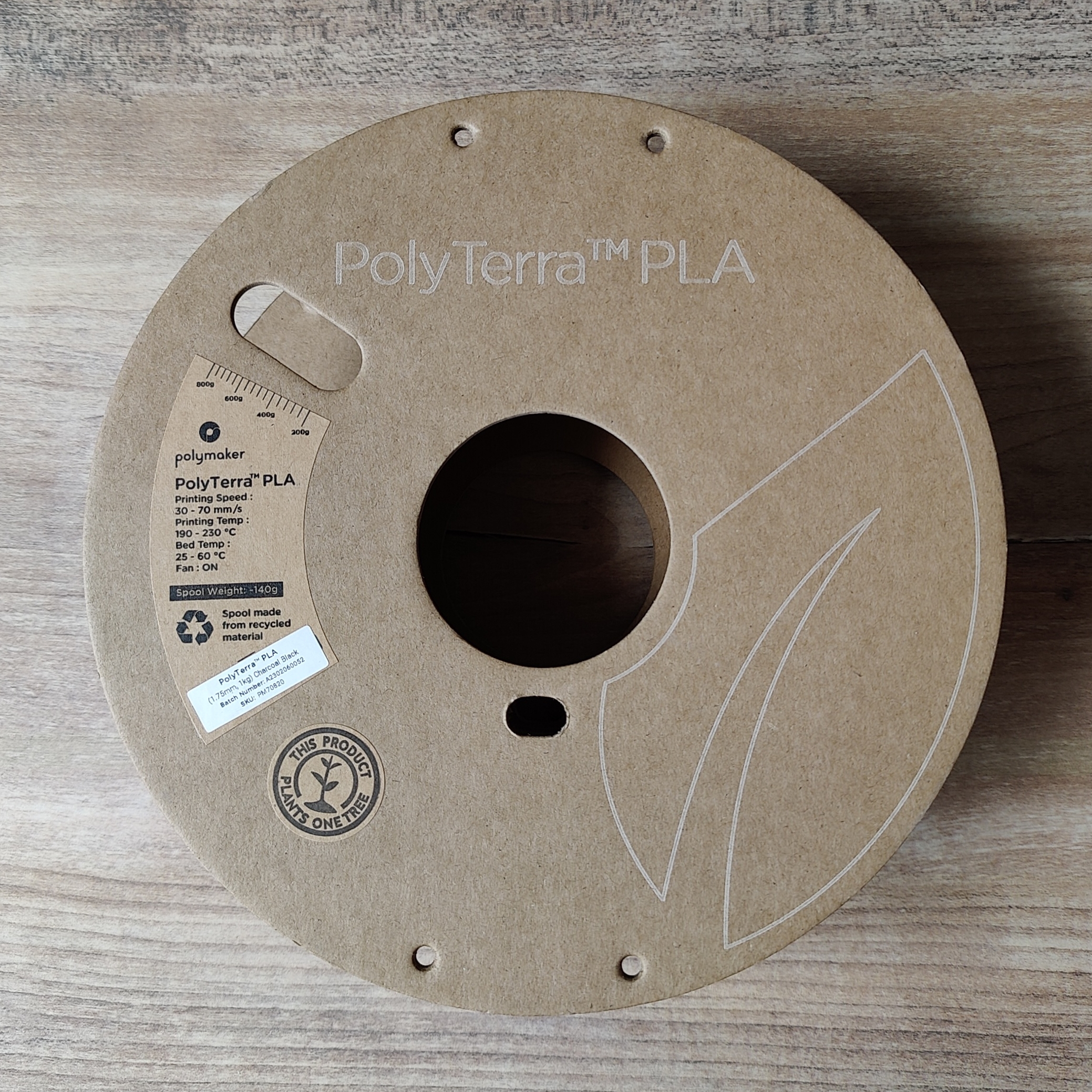

Polymaker PolyTerra PLA

  • Printing temp: 190 C – 230 C
  • Bed temp: 25 C – 60 C
  • Empty spool weight: 139 g
  • Advertised filament weight: 1000 g
  • Outside Diameter: 200 mm
  • Height: 64 mm
  • Hole Diameter: 55 mm

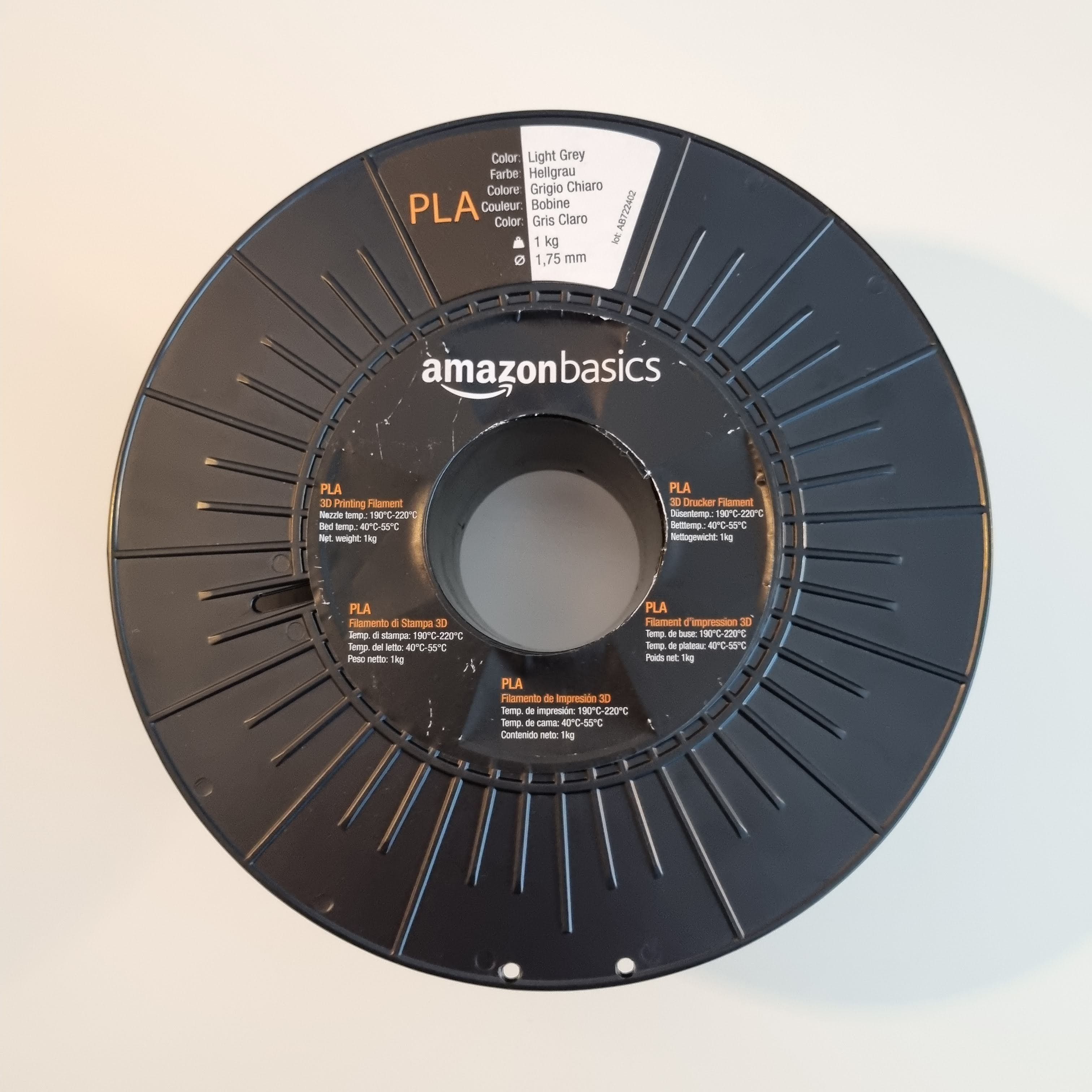

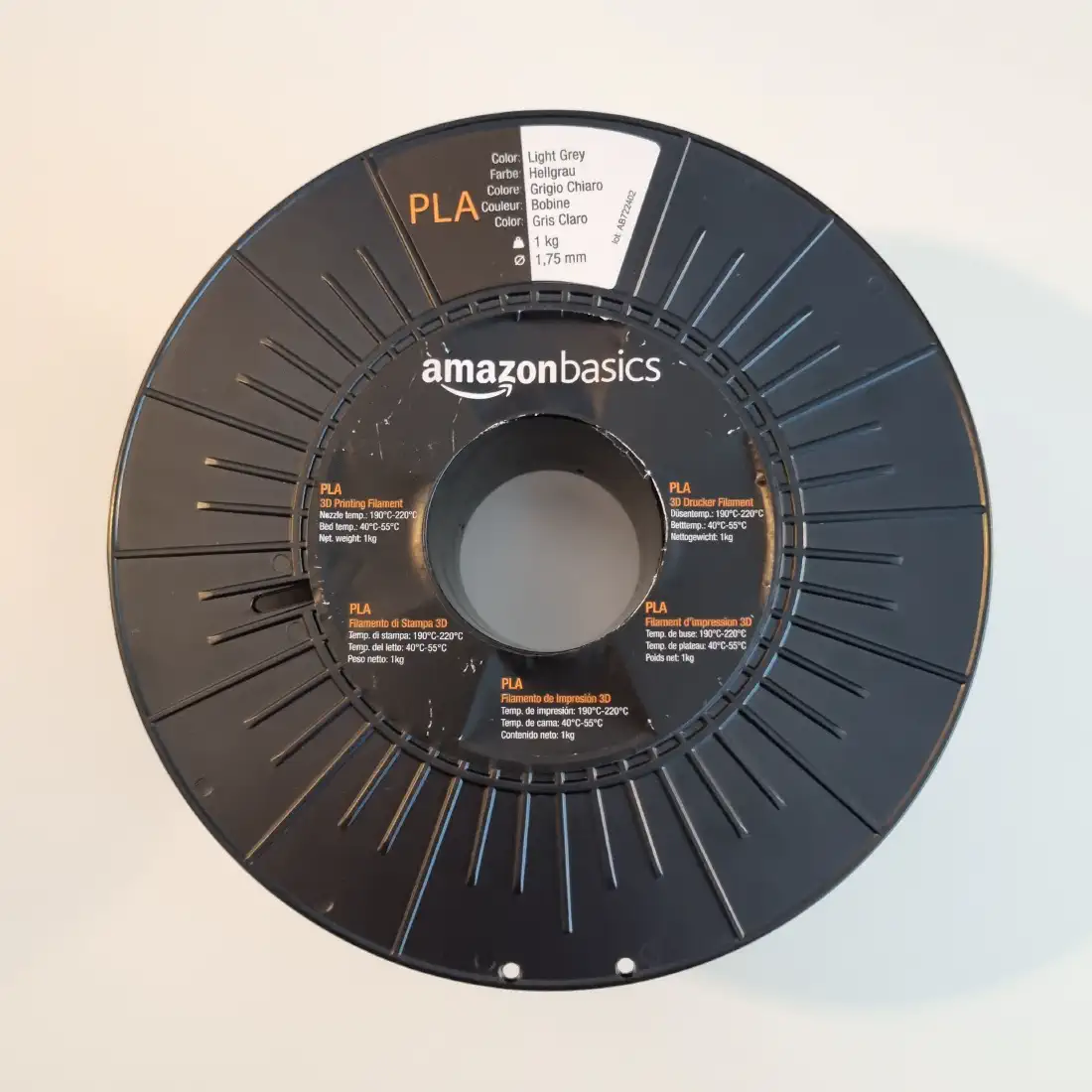

Amazon Basic PLA

  • Printing temp: 190 C – 220 C
  • Bed temp: 40 C - 55 C
  • Empty spool weight: 234 g
  • Advertised filament weight: 1000 g
  • Outside Diameter: 199 mm
  • Height: 75 mm
  • Hole Diameter: 54 mm

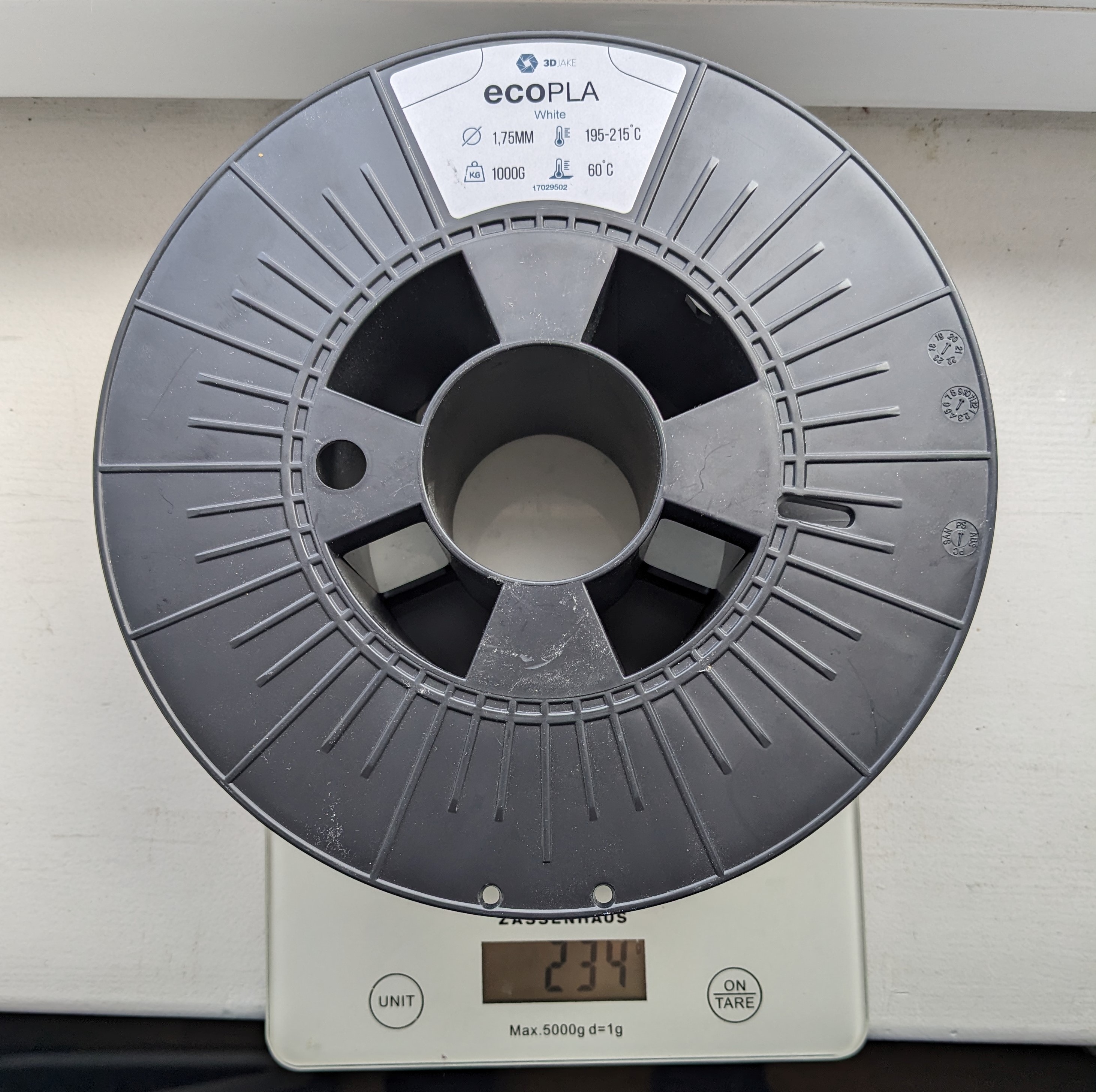

3DJake ecoPLA spool

  • Printing temp: 195 C – 215 C
  • Bed temp: 60 C
  • Empty spool weight: 234 g
  • Advertised filament weight: 1000 g
  • Outside Diameter: 199 mm
  • Height: 75.5mm
  • Hole Diameter: 52.25 mm

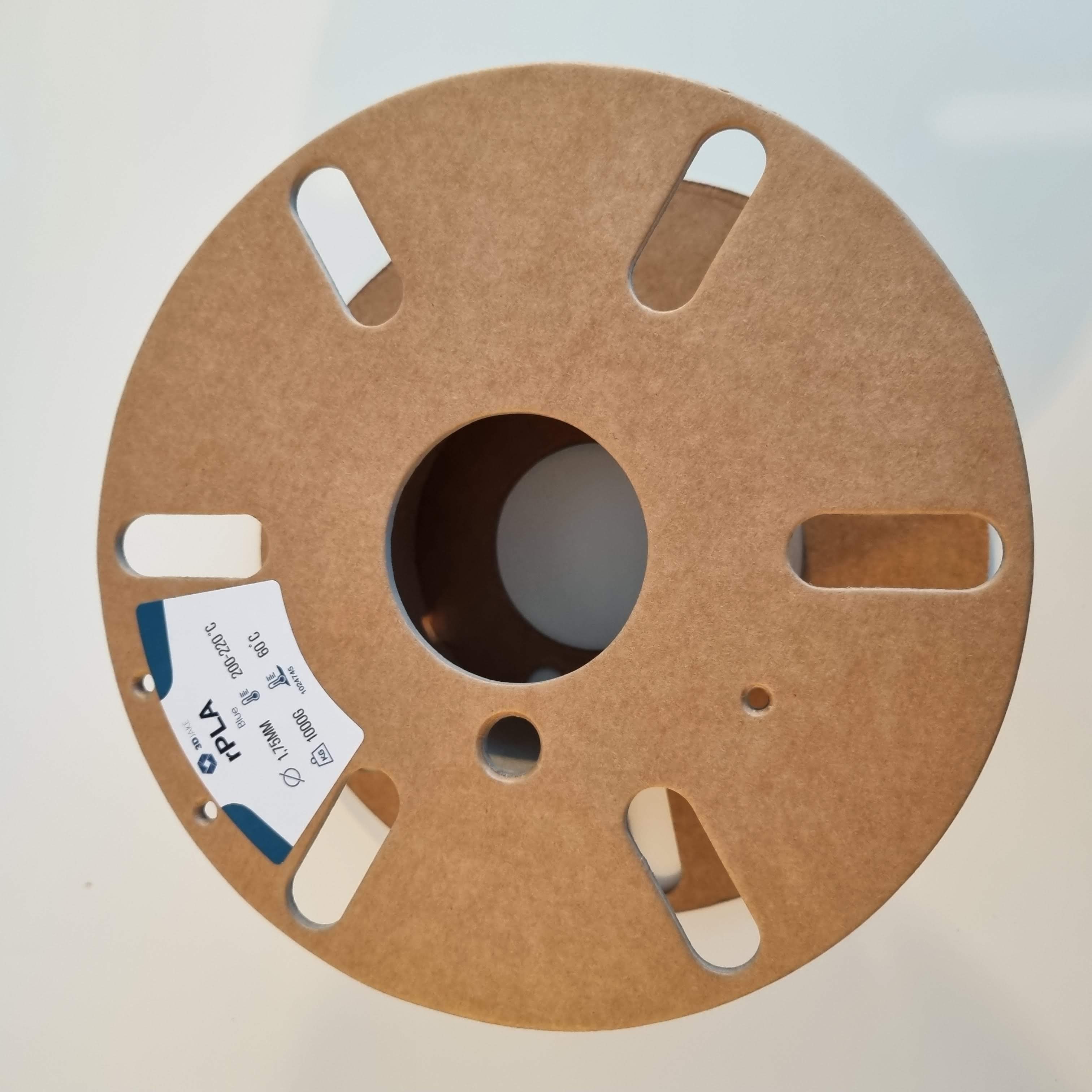

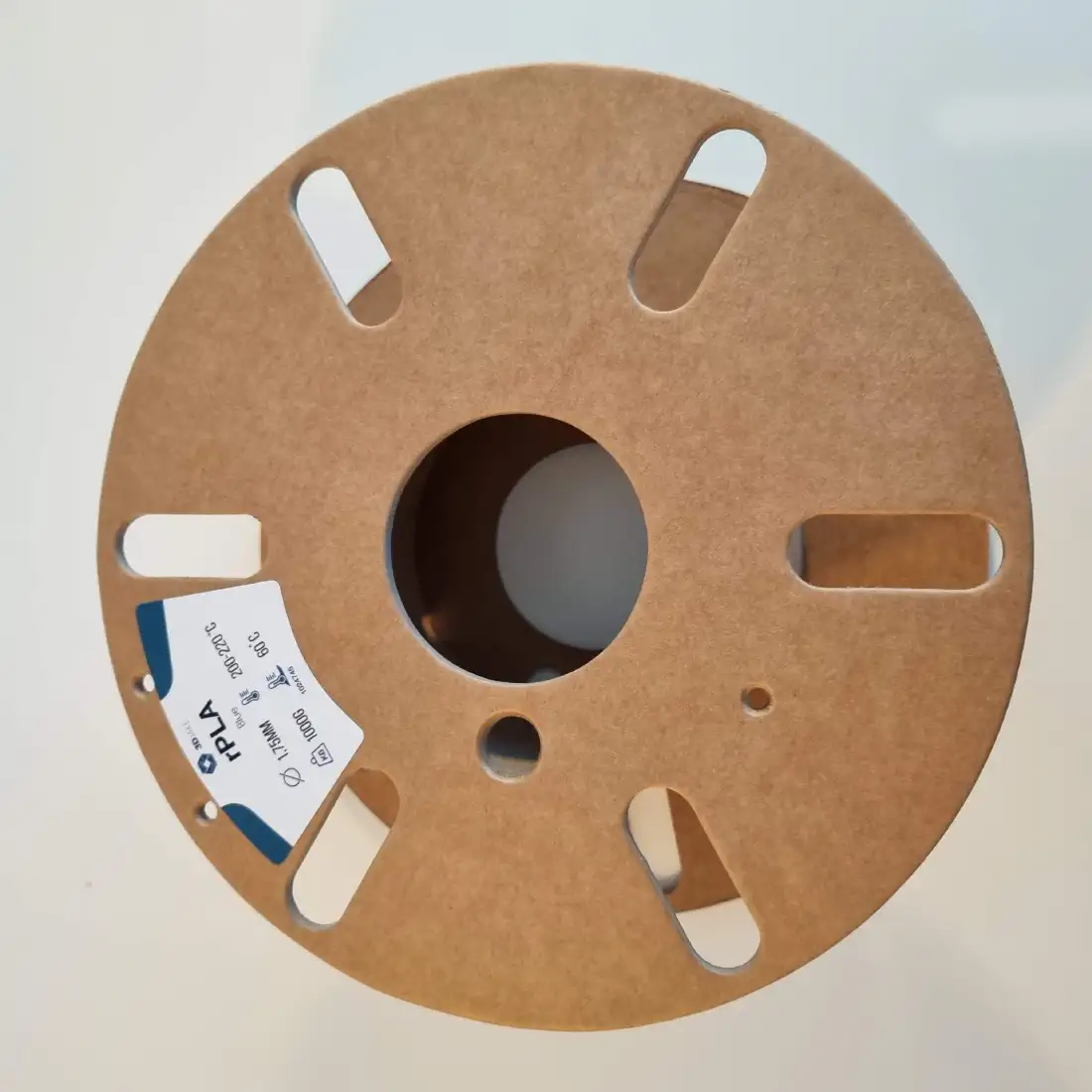

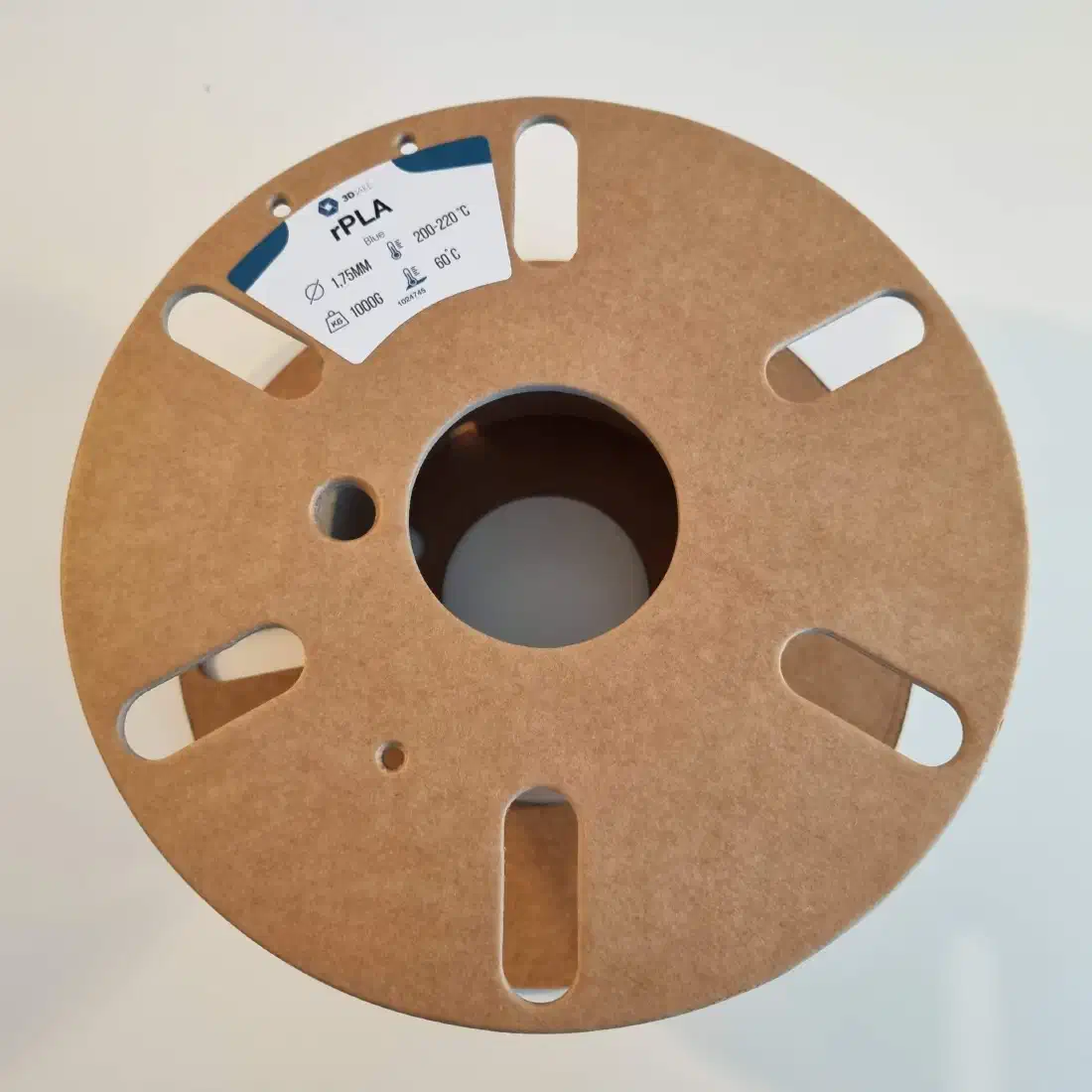

3DJake rPLA Cardboard spool

  • Printing temp: 200 C – 220 C
  • Bed temp: 60 C
  • Empty spool weight: 209 g
  • Advertised filament weight: 1000 g
  • Outside Diameter: 200 mm
  • Height: 72mm
  • Hole Diameter: 56 mm

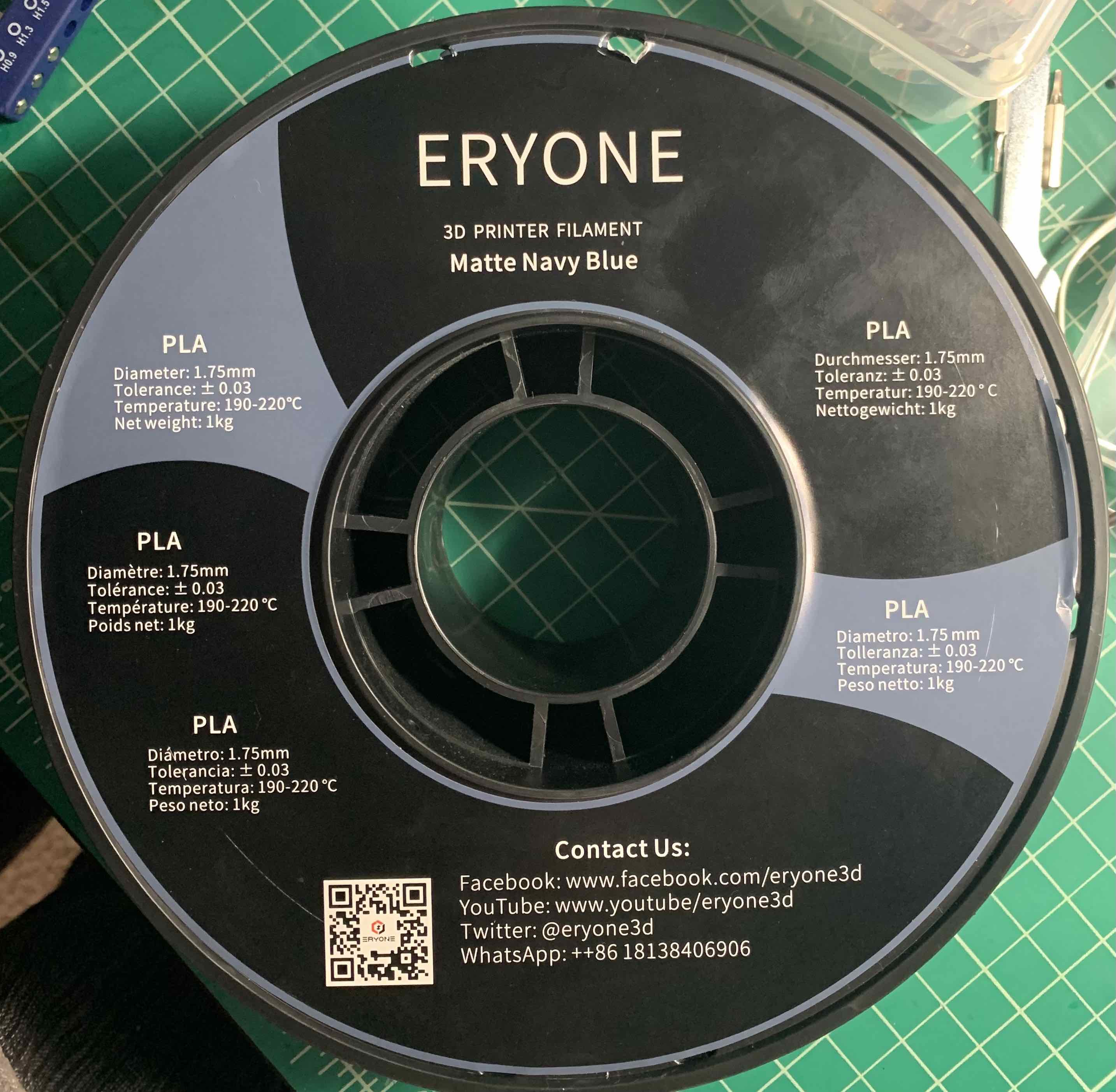

Eryone PLA Matte

  • Printing temp: 190 C – 220 C
  • Bed temp: not specified
  • Empty spool weight: 186 g
  • Advertised filament weight: 1000 g
  • Outside Diameter: 200 mm
  • Height: 64/52 mm (inner hole has reduced height)
  • Hole Diameter: 55 mm

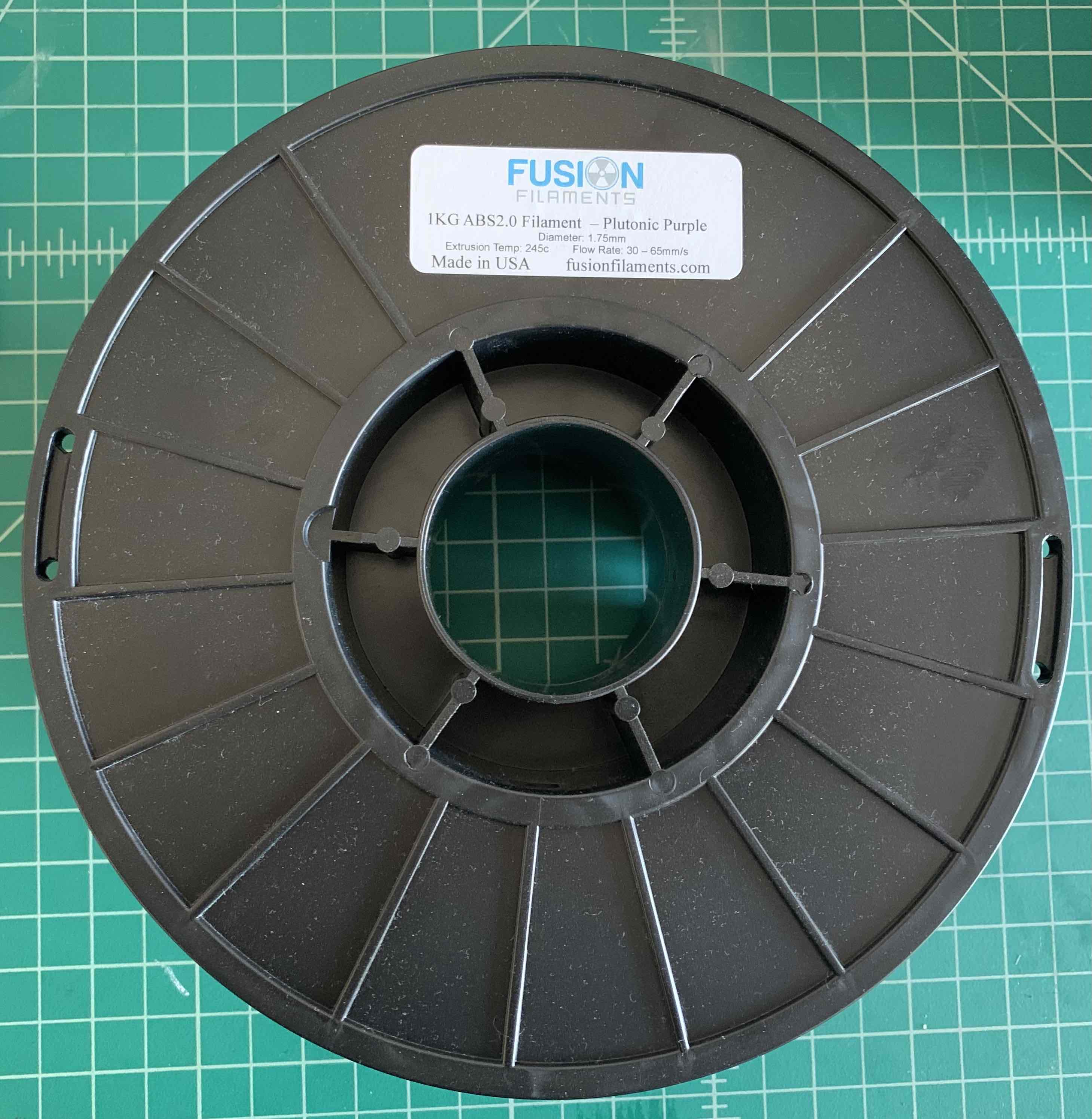

Fusion Filaments Plutonic Purple ABS 2.0

  • Printing temp: 245C
  • Bed temp: 90-100 C
  • Empty spool weight: 308 g
  • Advertised filament weight: 1000 g
  • Outside Diameter: 205 mm
  • Height: 73/56 mm (inner hole has reduced height)
  • Hole Diameter: 53 mm

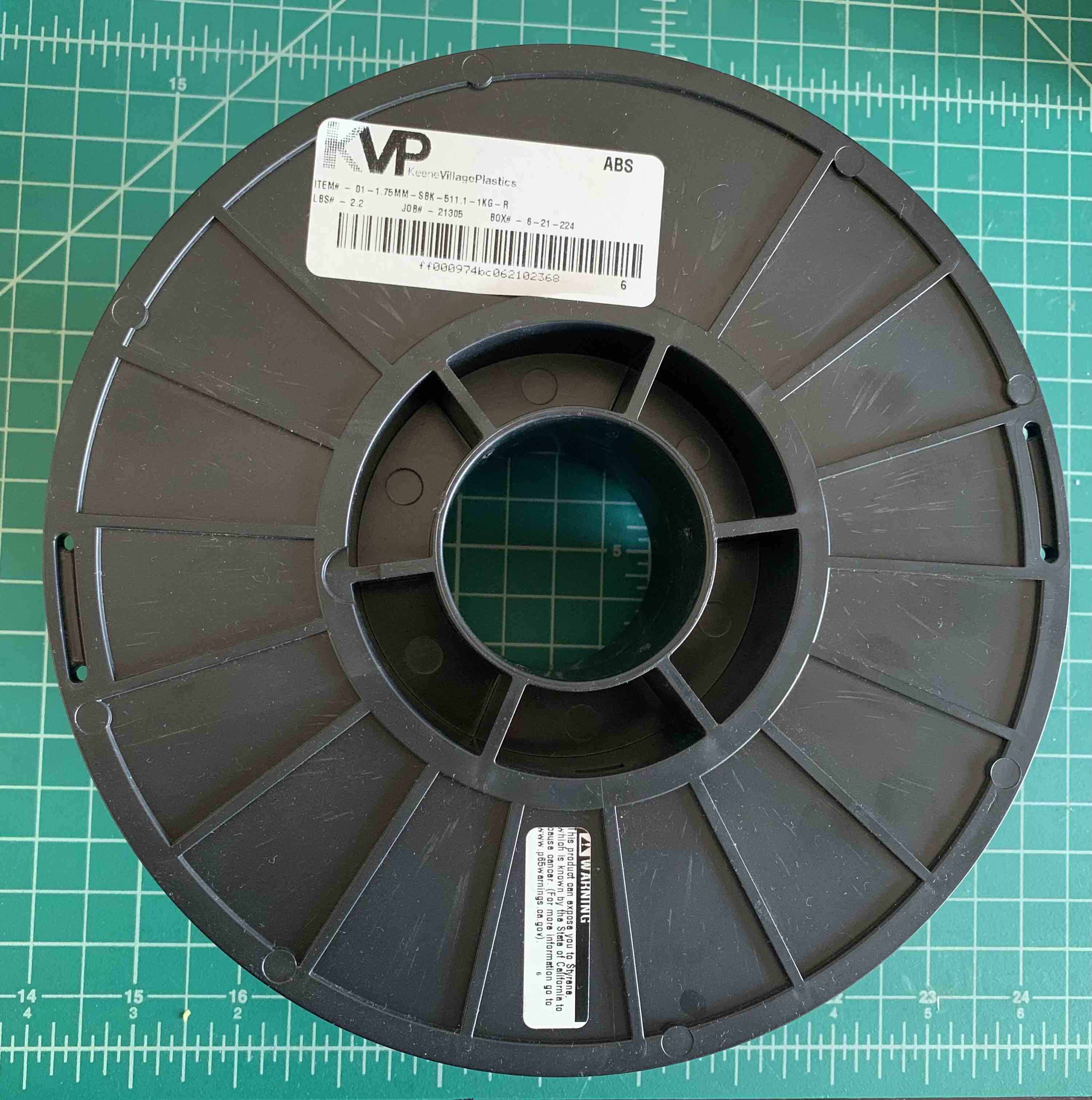

KVP Stellar Black ABS

  • Printing temp: 230 C – 250 C
  • Bed temp: 110 C
  • Empty spool weight: 337 g
  • Advertised filament weight: 1000 g
  • Outside Diameter: 205 mm
  • Height: 72/55 mm (inner hole has reduced height)
  • Hole Diameter: 53 mm

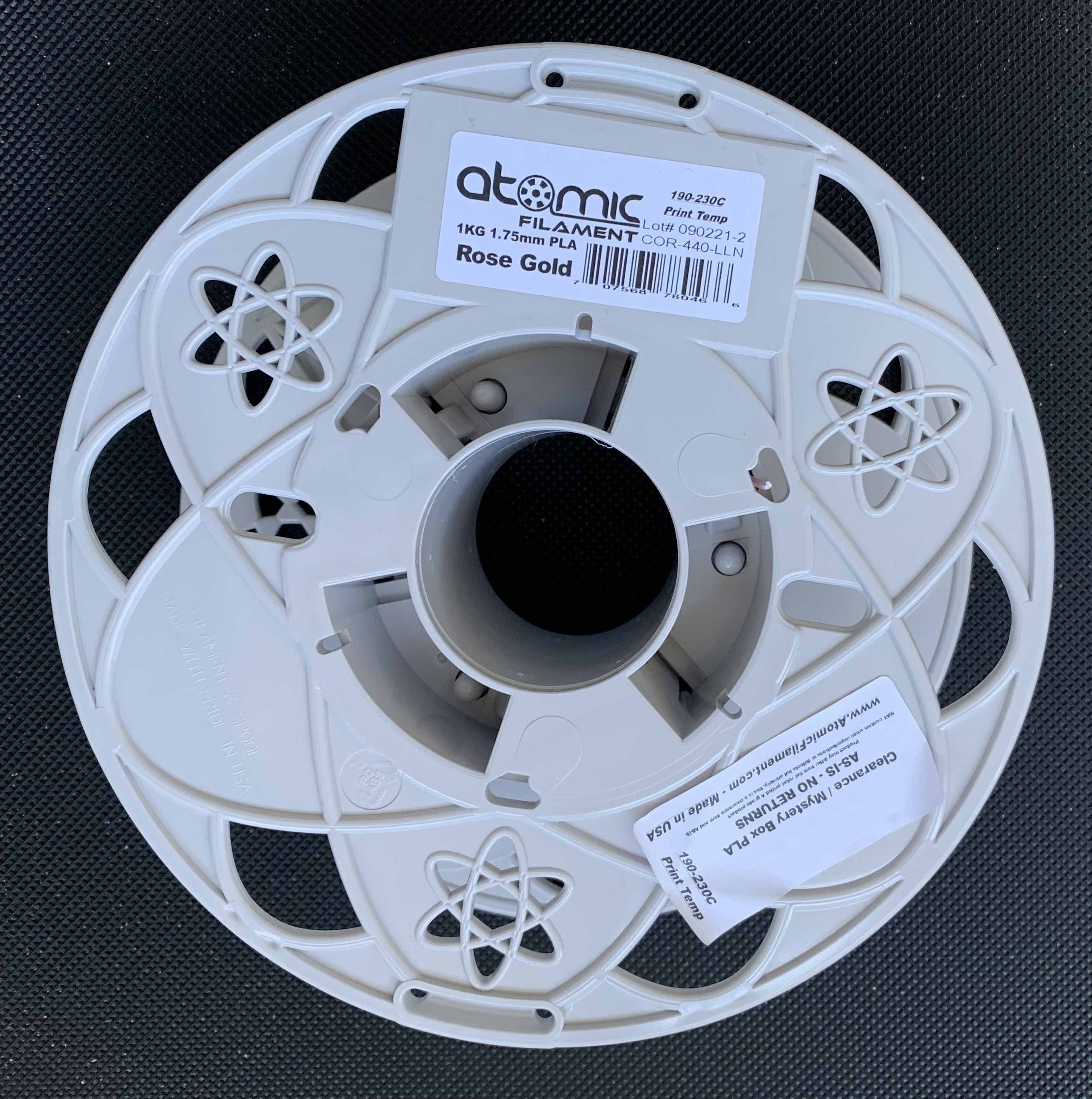

Atomic Filaments Rose Gold PLA

  • Printing temp: 190/230C
  • Bed temp: unspecified
  • Empty spool weight: 318 g
  • Advertised filament weight: 1000 g
  • Outside Diameter: 204 mm
  • Height: 73 mm
  • Hole Diameter: 53 mm

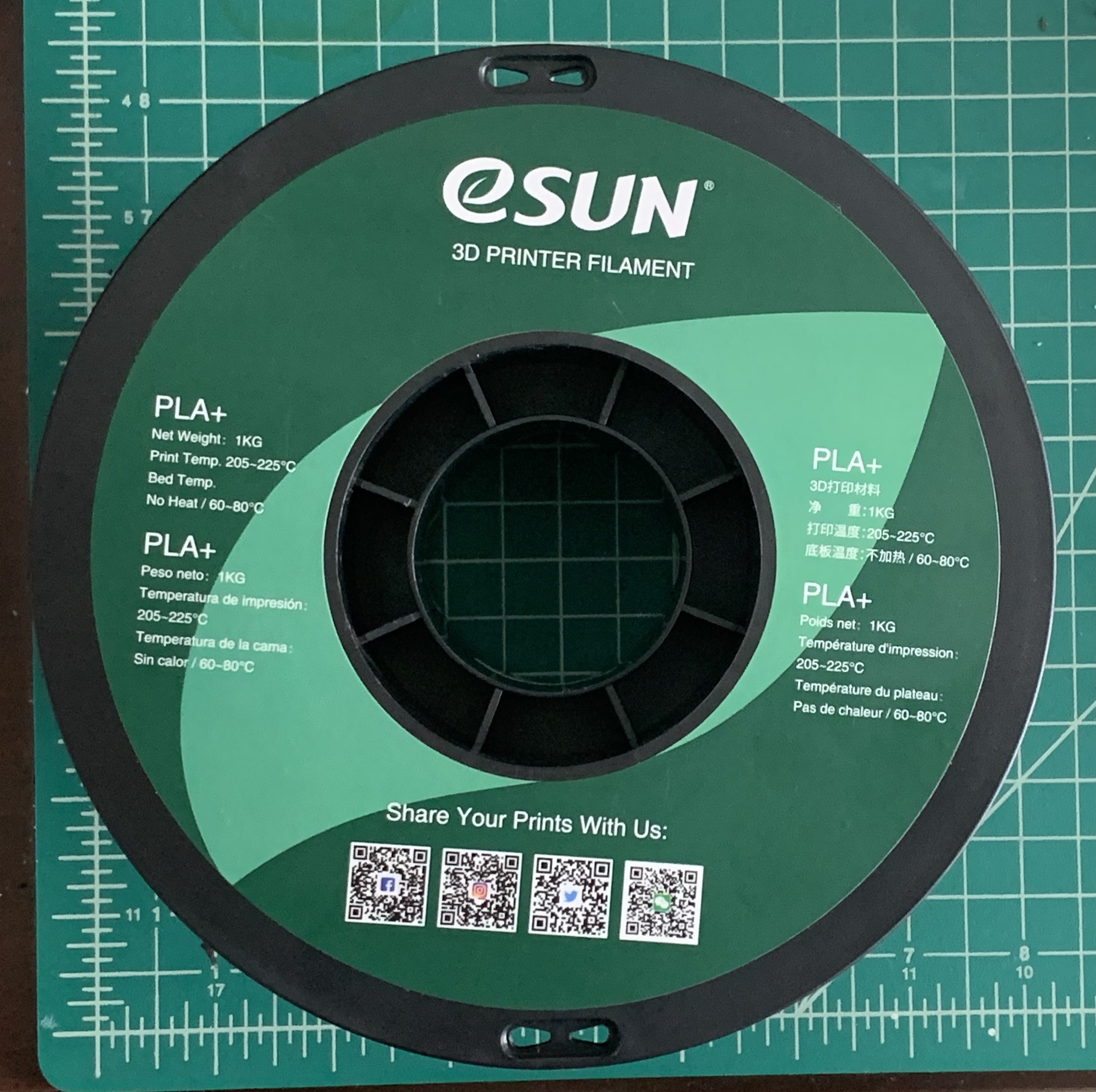

ESun PLA+

  • Printing temp: 205-225
  • Bed temp: 0C/60-80C
  • Empty spool weight: 242g
  • Advertised filament weight: 1000g

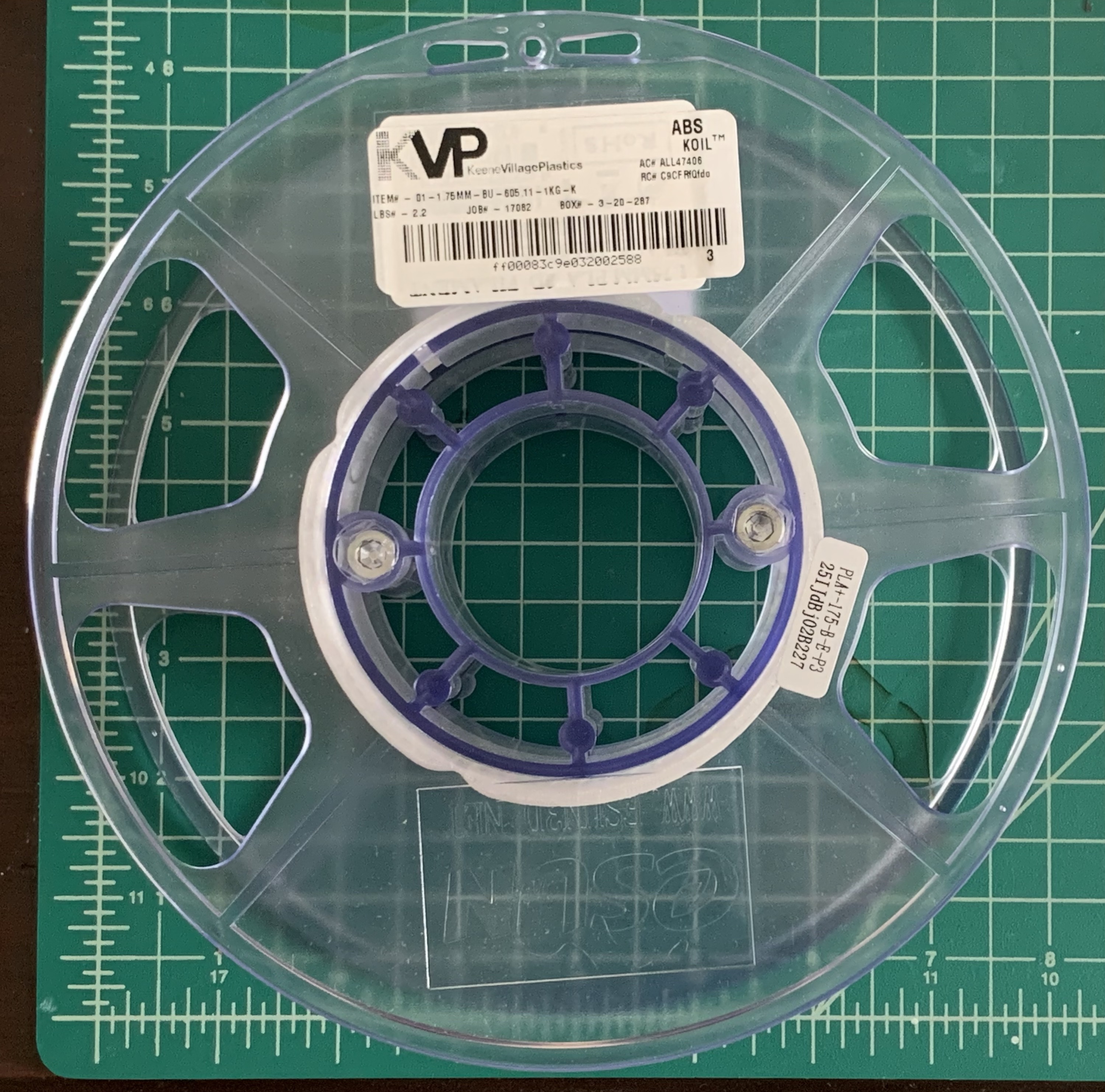

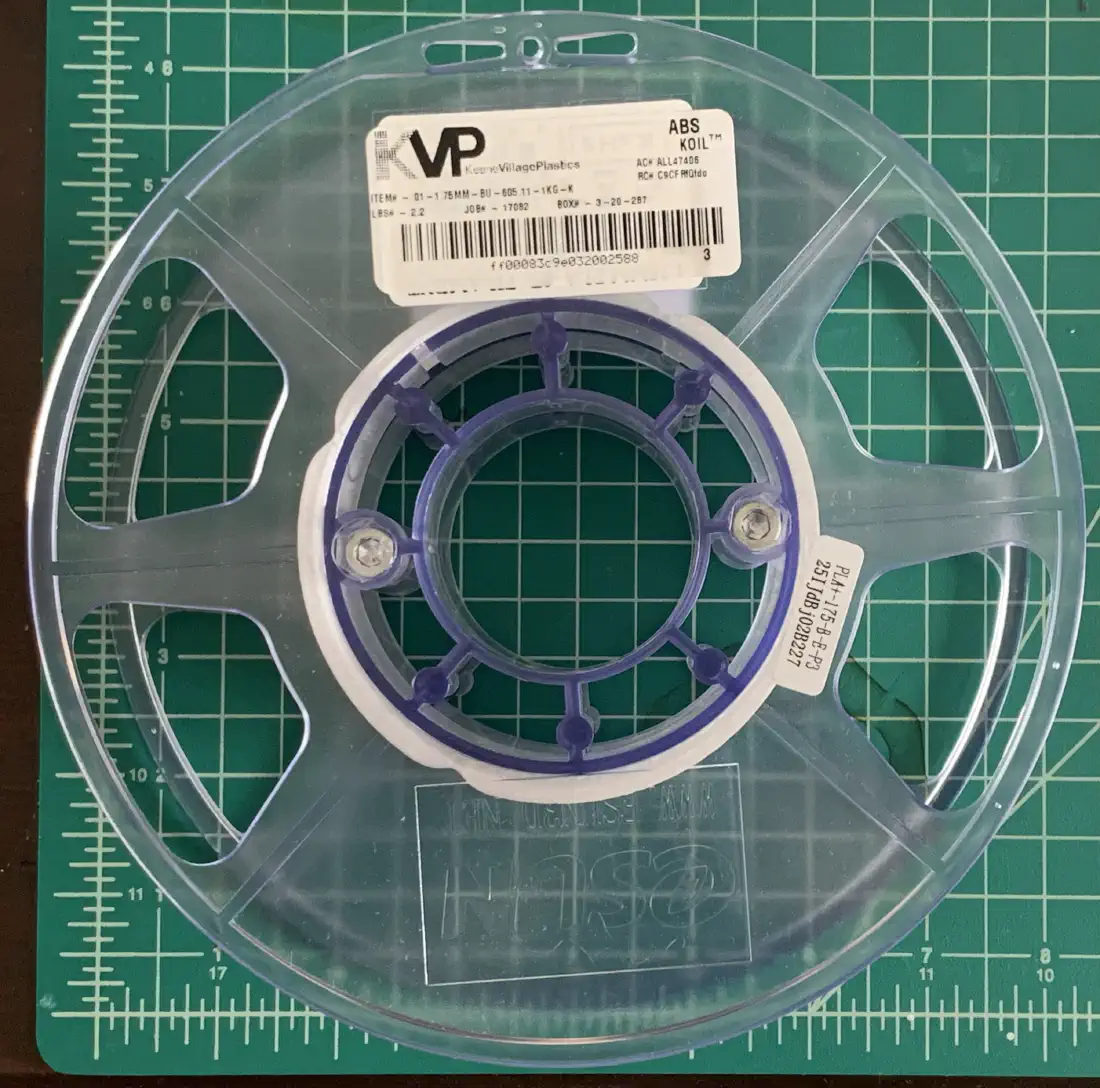

KVP Koil Spool

ESun openable spool upcycled by KVP to serve as their refillable Koil spool

  • Empty spool weight: 263g
  • Advertised filament weight: 1000g

Essentium 10kg spool

  • Empty spool weight: 1385 g
  • Advertised filament weight: 10000 g
  • Outside Diameter: 355.6 mm
  • Height: 222.25 mm
  • Hole Diameter: 38.1 mm

Essentium 2.5kg spool

  • Empty spool weight: 918 g
  • Advertised filament weight: 2500 g
  • Outside Diameter: 298.45 mm
  • Height: 103.886 mm
  • Hole Diameter: 52.07 mm

Essentium 200g spool

  • Empty spool weight: 128g
  • Advertised filament weight: 200g
  • Outside Diameter: 140.97mm
  • Height: 44.45
  • Hole Diameter: 52.07mm

Essentium 5kg spool

  • Empty spool weight: 1146 g
  • Advertised filament weight: 5000 g
  • Outside Diameter: 304.8 mm
  • Height: 190.5 mm
  • Hole Diameter: 52.07 mm

Essentium 750g spool

  • Empty spool weight: 365g
  • Advertised filament weight: 750g
  • Outside Diameter: 200.025 mm
  • Height: 54.61 mm
  • Hole Diameter: 52.07 mm

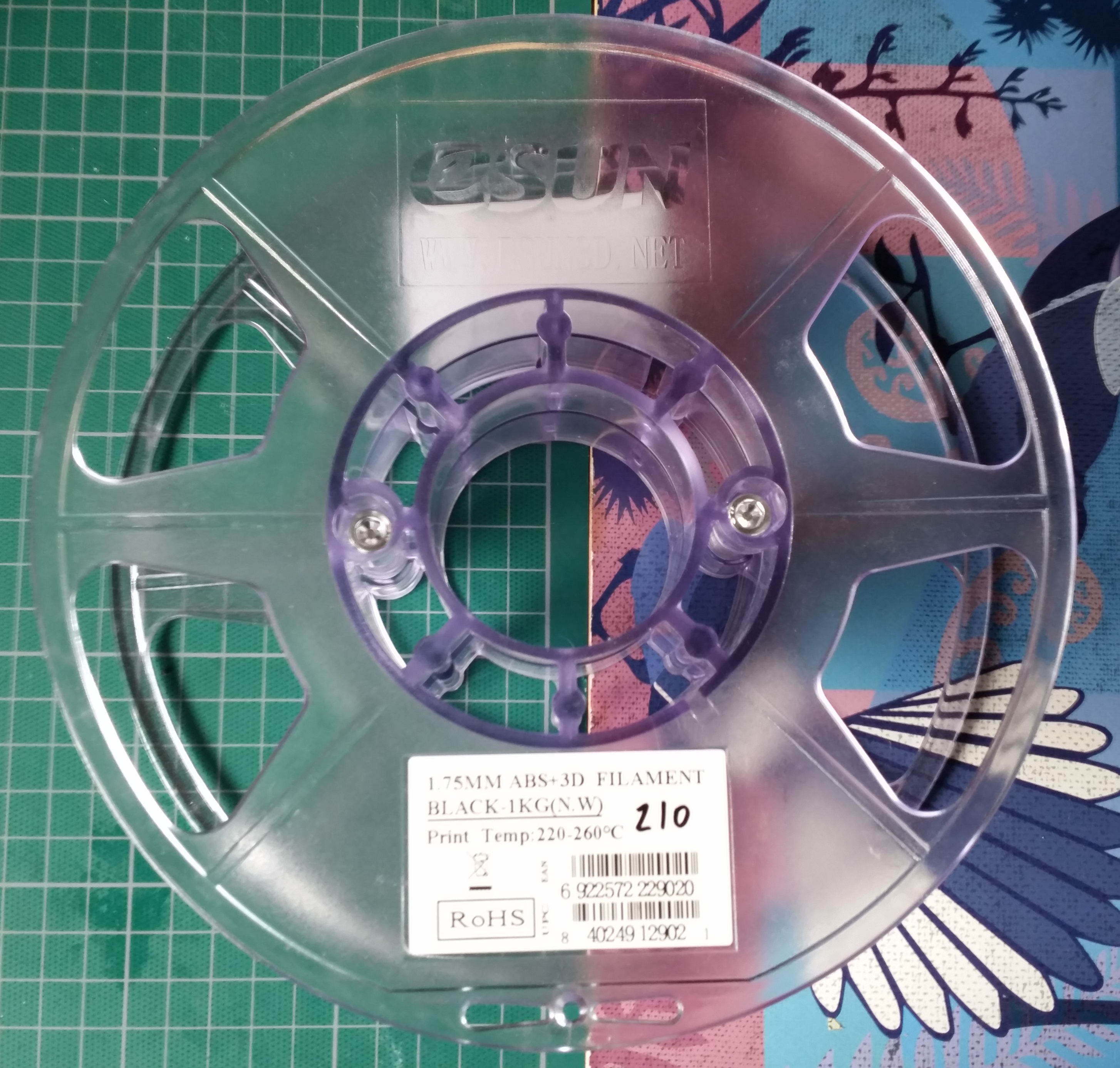

ESun ABS+ Black

  • Printing temp: 220-260C
  • Bed temp: 100C
  • Empty spool weight: 209g
  • Advertised filament weight: 1000g
  • Outside Diameter: 200mm
  • Height: 60mm
  • Hole Diameter: 51mm

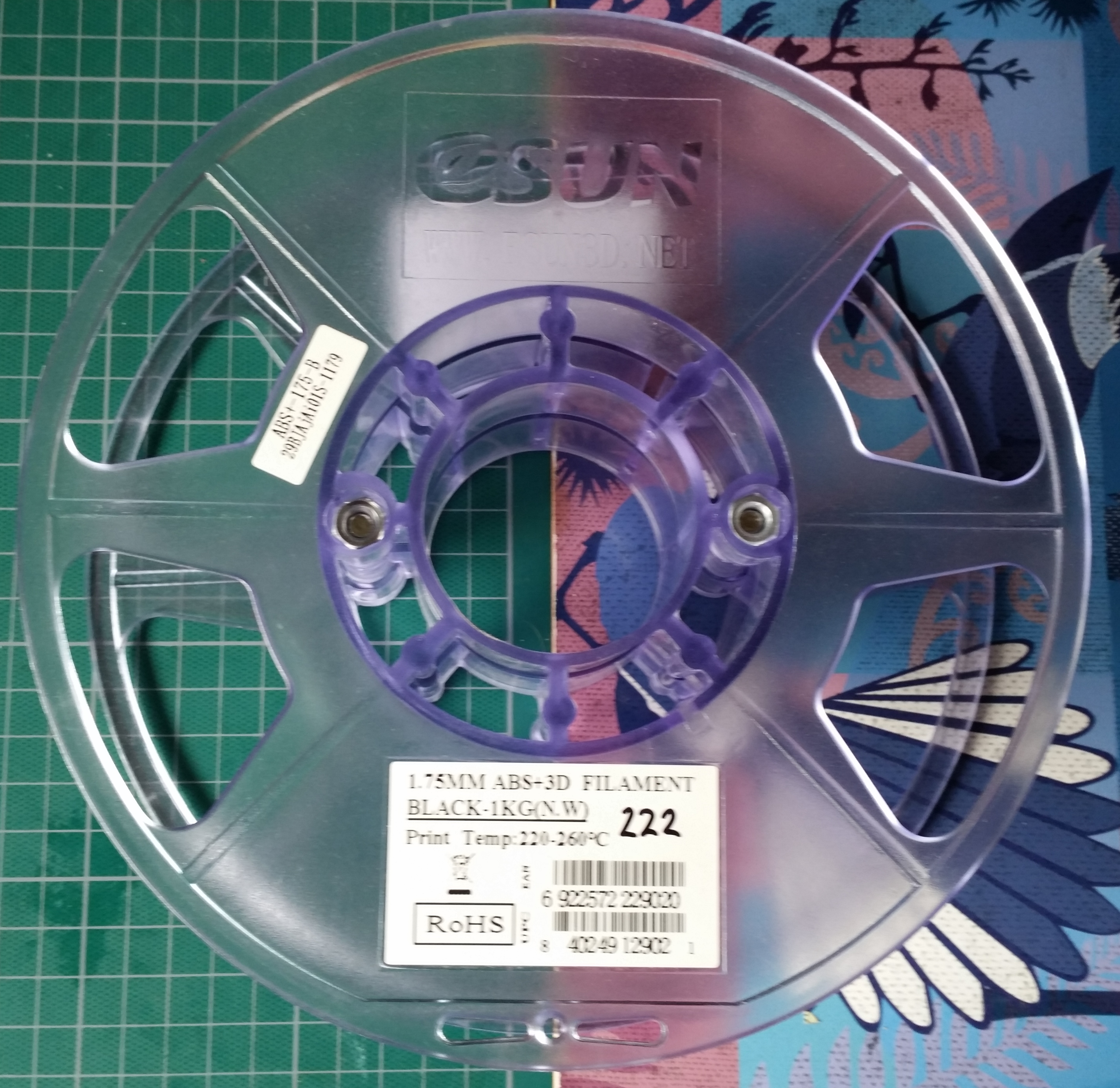

ESun ABS+ Black

  • Printing temp: 220-260C
  • Bed temp: 100C
  • Empty spool weight: 222g
  • Advertised filament weight: 1000g
  • Outside Diameter: 200mm
  • Height: 61mm
  • Hole Diameter: 51mm

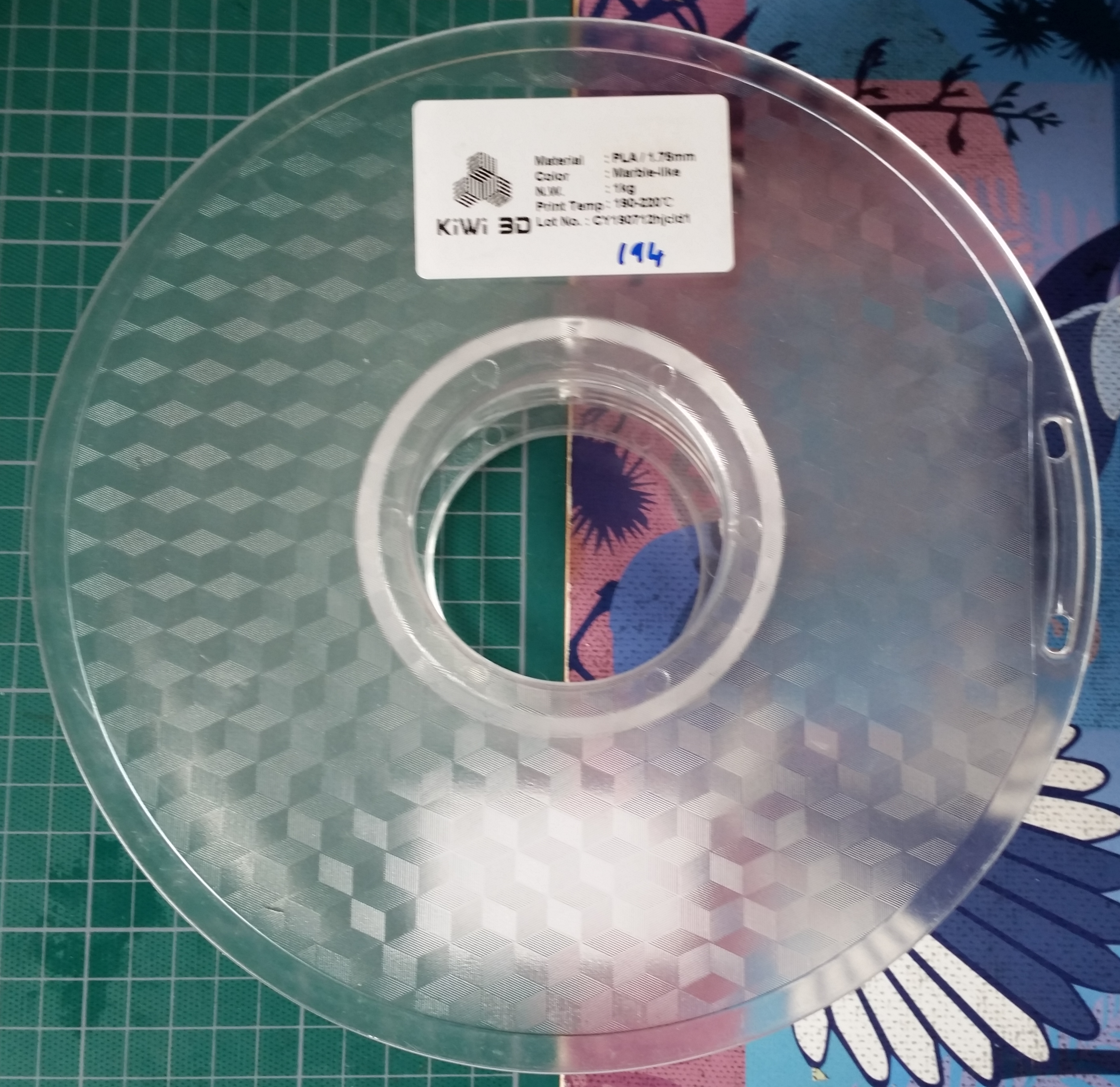

Kiwi3D PLA Like-Marble

  • Printing temp: 190-220C
  • Bed temp: 0/60C
  • Empty spool weight: 194g
  • Advertised filament weight: 1000g
  • Outside Diameter: 198mm
  • Height: 62mm
  • Hole Diameter: 60mm

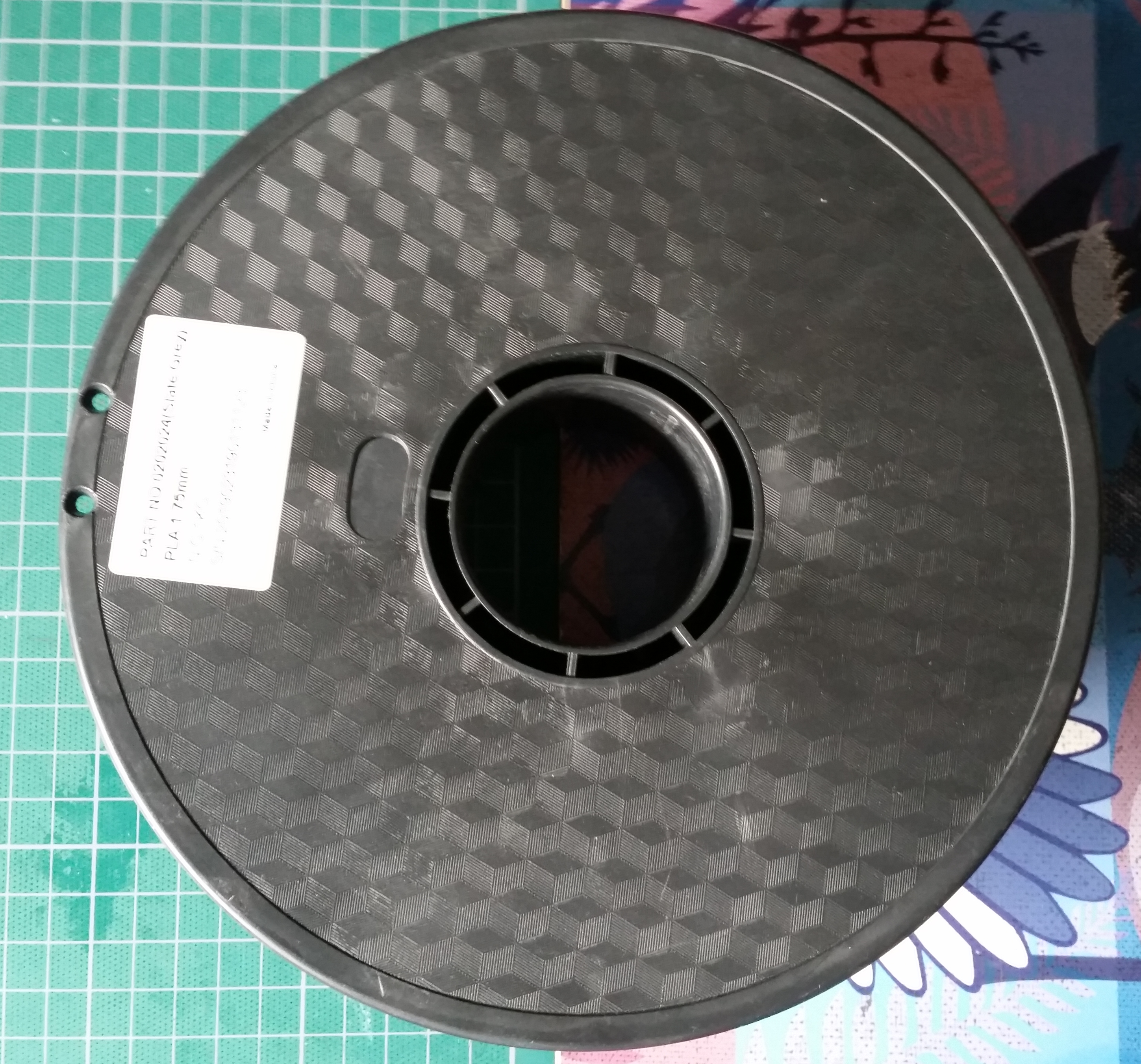

Wanhao PLA Slate-Grey

  • Printing temp: 170-210C
  • Bed temp: 0/60C
  • Empty spool weight: 267g
  • Advertised filament weight: 1000g
  • Outside Diameter: 200mm
  • Height: 60mm
  • Hole Diameter: 50mm

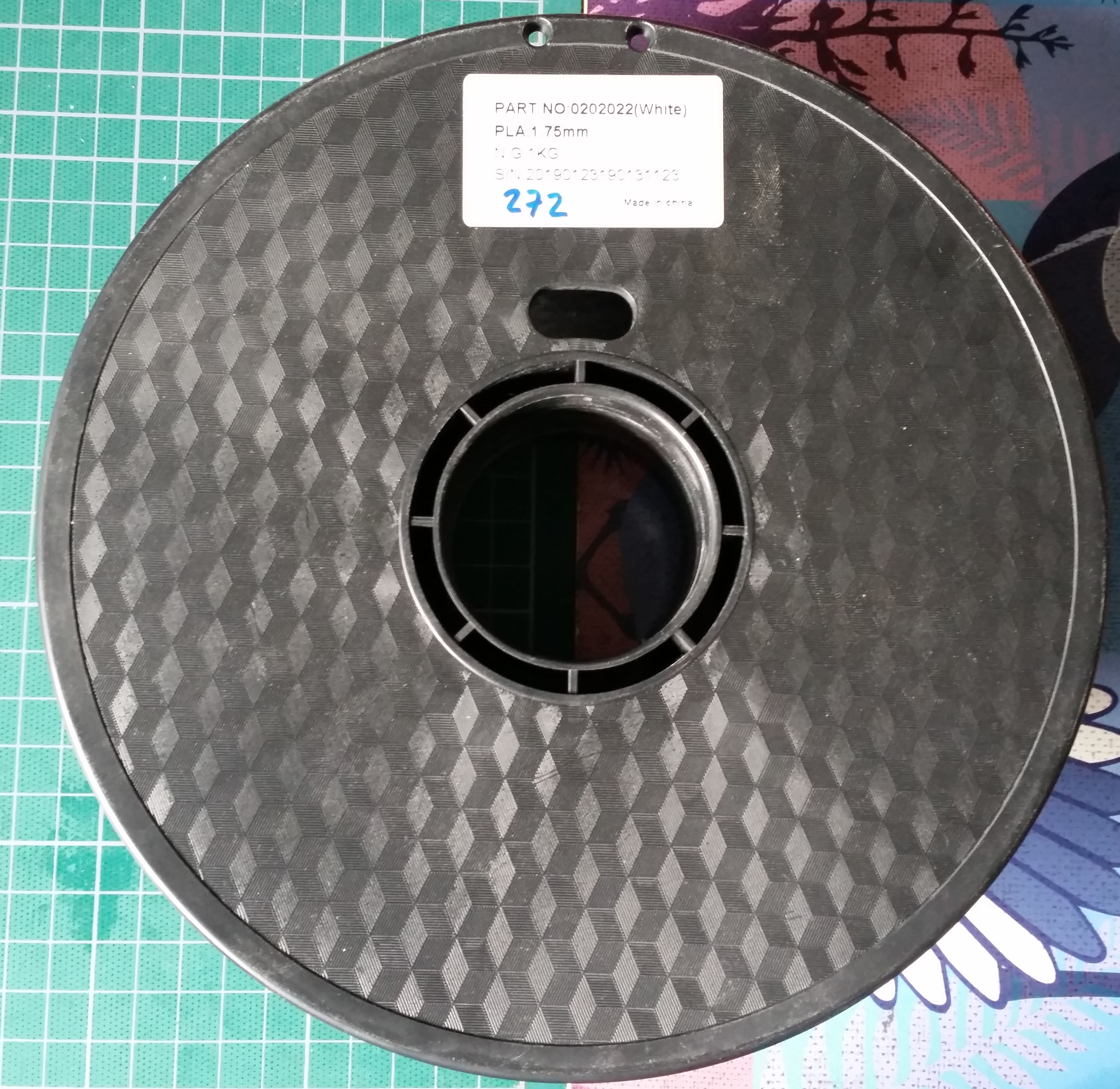

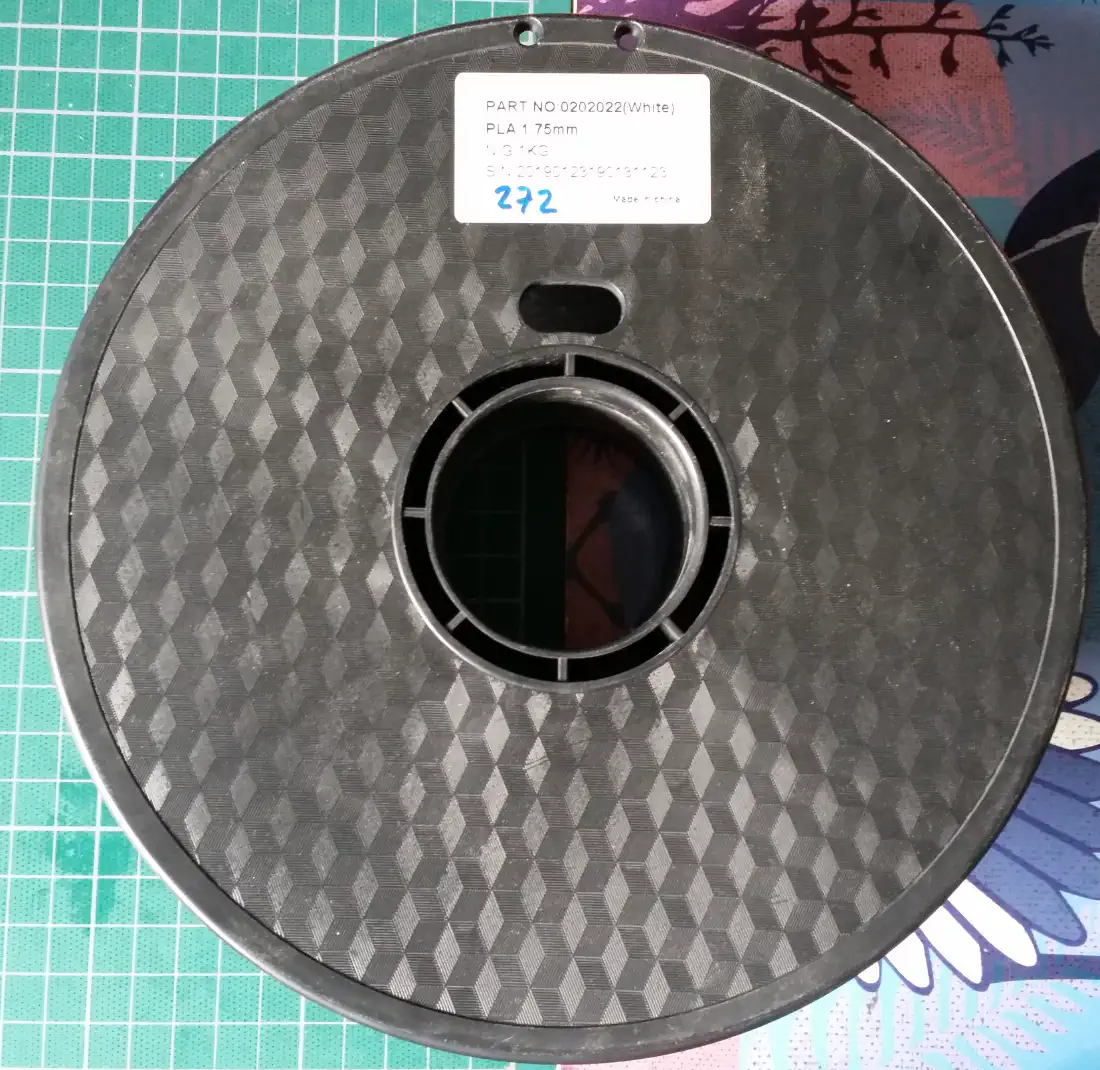

Wanhao PLA White

  • Printing temp: 170-210C
  • Bed temp: 0/60C
  • Empty spool weight: 272g
  • Advertised filament weight: 1000g
  • Outside Diameter: 200mm
  • Height: 60mm
  • Hole Diameter: 50mm

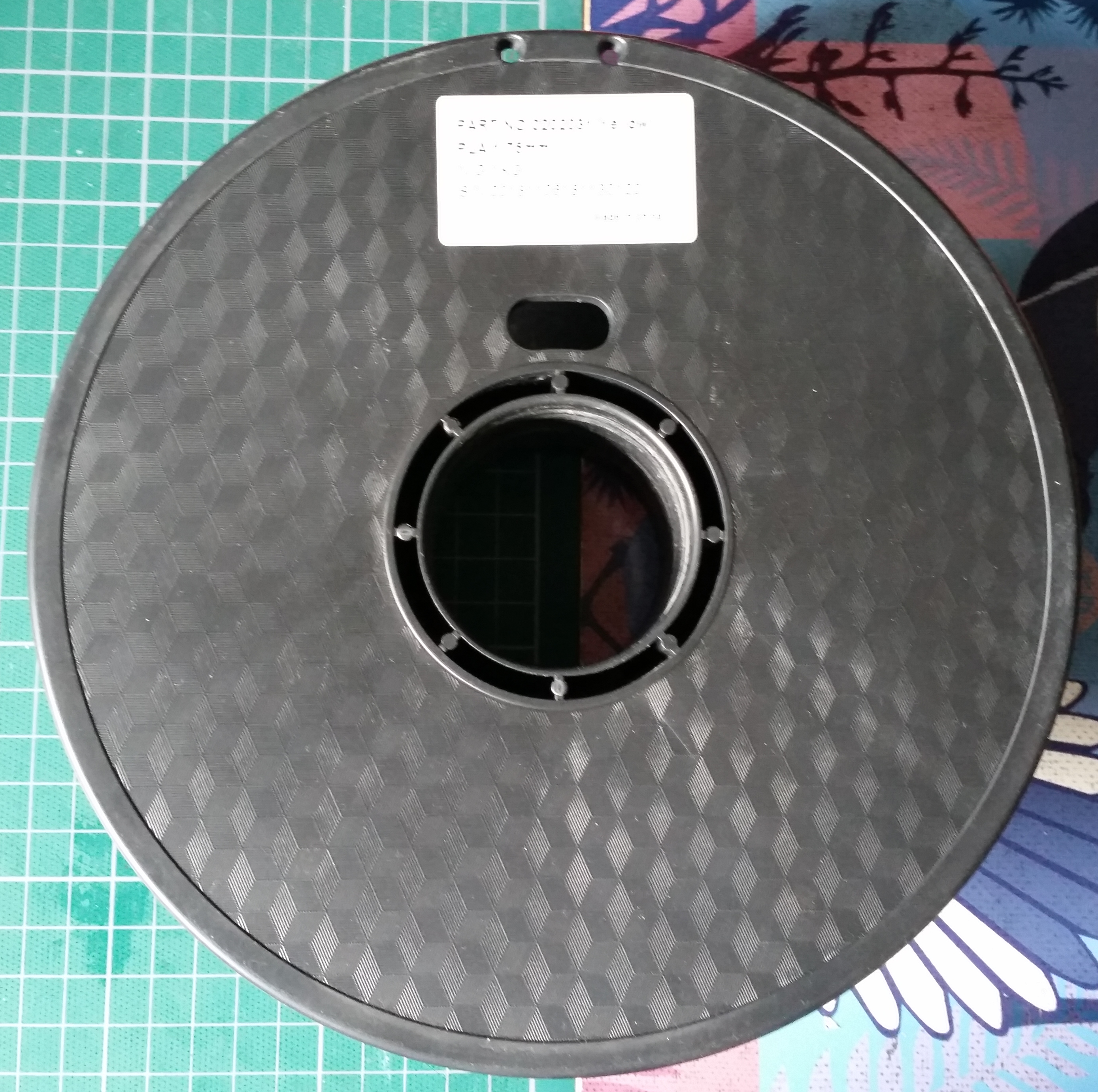

Wanhao PLA Yellow

  • Printing temp: 170-210C
  • Bed temp: 0/60C
  • Empty spool weight: 270g
  • Advertised filament weight: 1000g
  • Outside Diameter: 200mm
  • Height: 57mm
  • Hole Diameter: 50mm
